Product Description

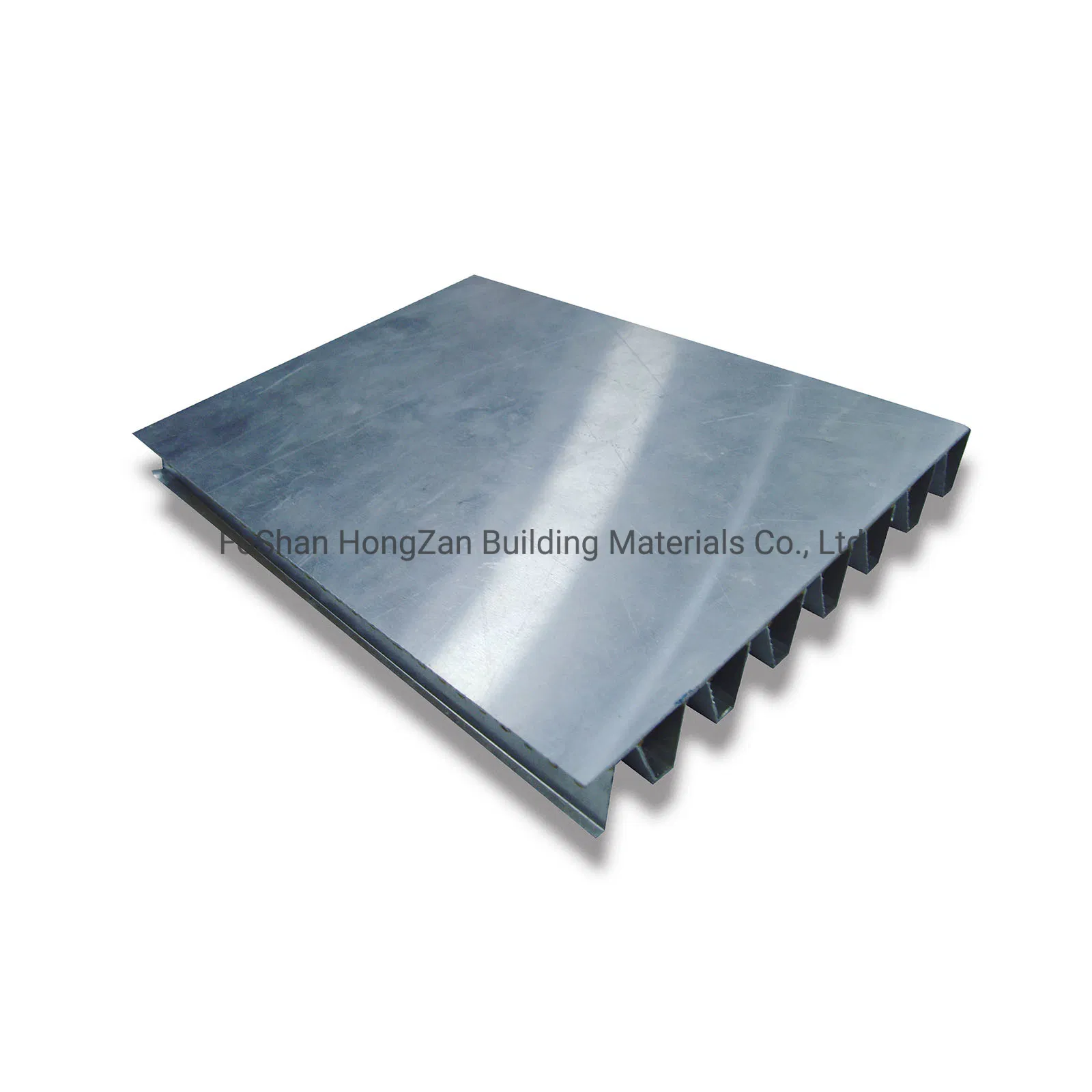

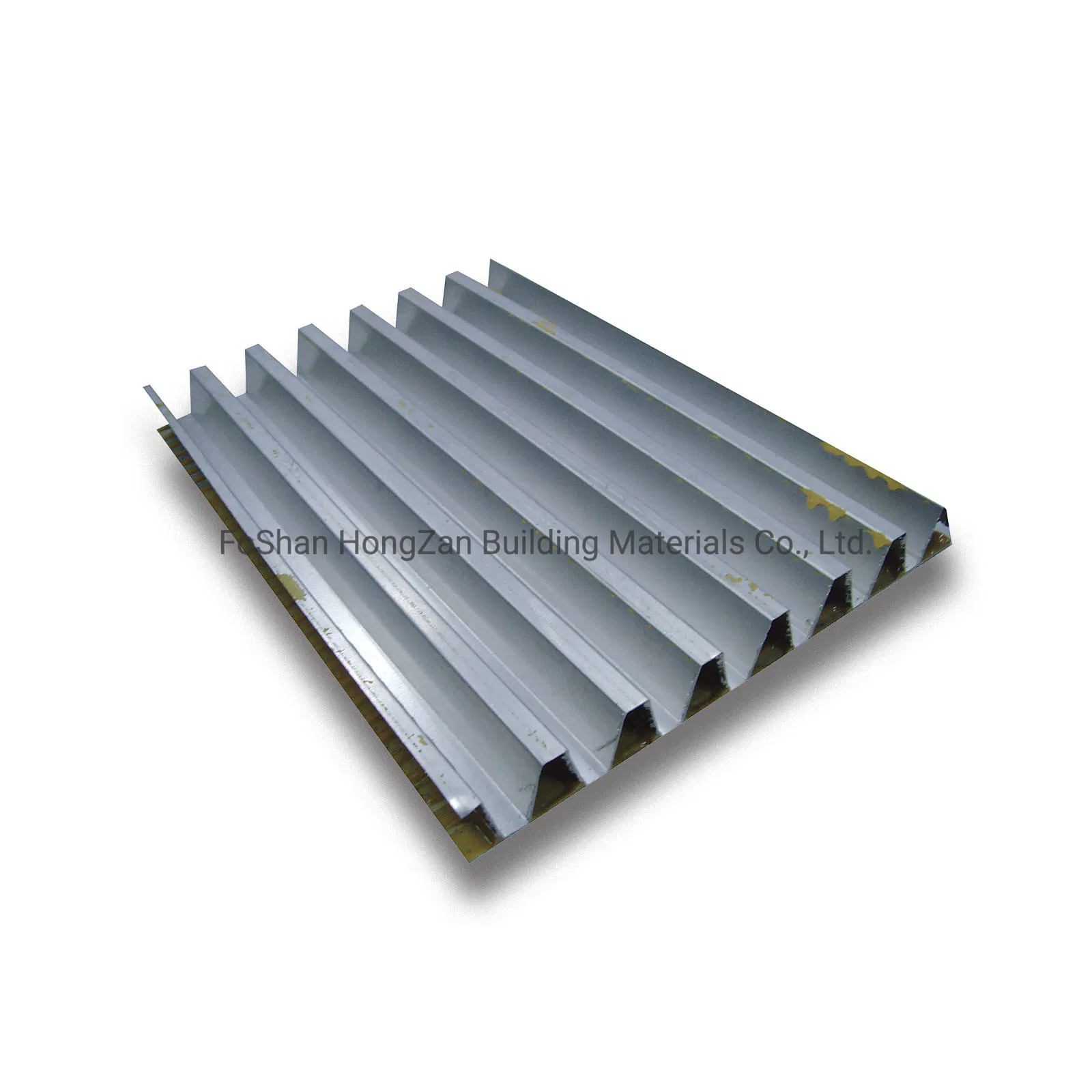

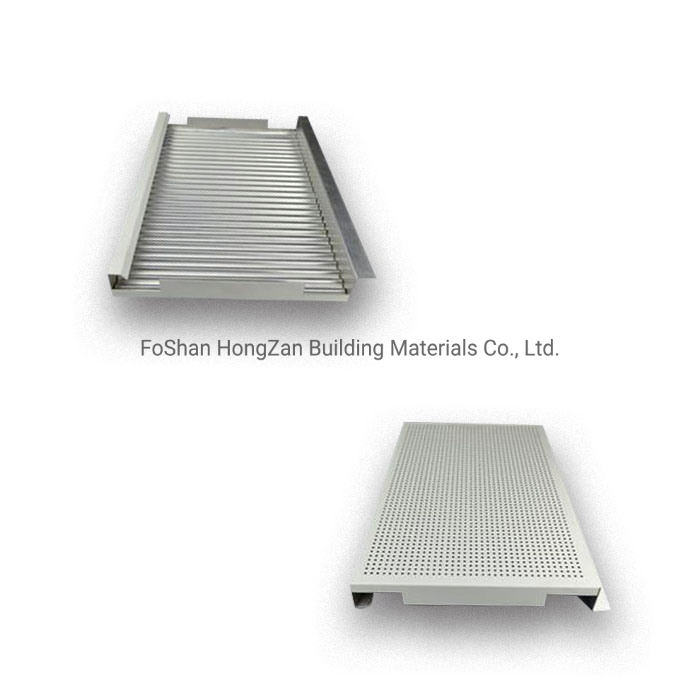

Aluminum Corrugated Panels for Ceiling and Wall
SMART MATERIALS, LEED SOLUTIONS !!!
SMART MATERIALS, LEED SOLUTIONS !!!
What Can Aluminum Honeycomb Panel Be Used For?
- Architectural Building Cladding and decoration, wall panel
- Architectural Rainscreen Facades and canopies
- Lightweight interior architectural panels
- Lift and elevator flooring, walls & Partitions
- Aerospace, Marine & Transport Flooring, Walls & Partitions
- Silk Screen Printing Tables and billboards or direction boards
- Furniture and tables.
- CNC Vacuum Bases
- Lightweight Floors, Walls, Ceilings, roofings, etc
- Special Purpose Panel Design
What Are The Advantages of Honeycomb Panel ?
- Ultra-Light weight
- High rigid, High impact strength
- Excellent fire rated (Meet A2 Standard)
- Excellent Corrosion Resistance
- High wind resistant
- Excellent Durability
- Super flatness and resistant surface
- Easy to transport & install
- Recyclable and environment-friendly
- Minimal materials cost
- PVDF or Polyester coating finish aluminum, anodized Aluminum, stainless steel or other special metal face sheets are for maximum strength and anti-corrosion performance as well as decorative applications.
- Aluminium or other metal face sheets are available in a range of thicknesses from 0.3mm up to 3mm as per design requirments
- Panels can be produced in different thicknesses and colors to meet design requirements and decoration purpose.
- Aluminum faced panels are chemically cleaned:Suitable for painting or the application of decorative laminates
- Brushed and anodized aluminum finishes are also available
- Aluminum honeycomb cell sizes are selectable.
- Wide selection of colors including RAL colors, metallic colors, stone/marble/granite colors and wooden colors.

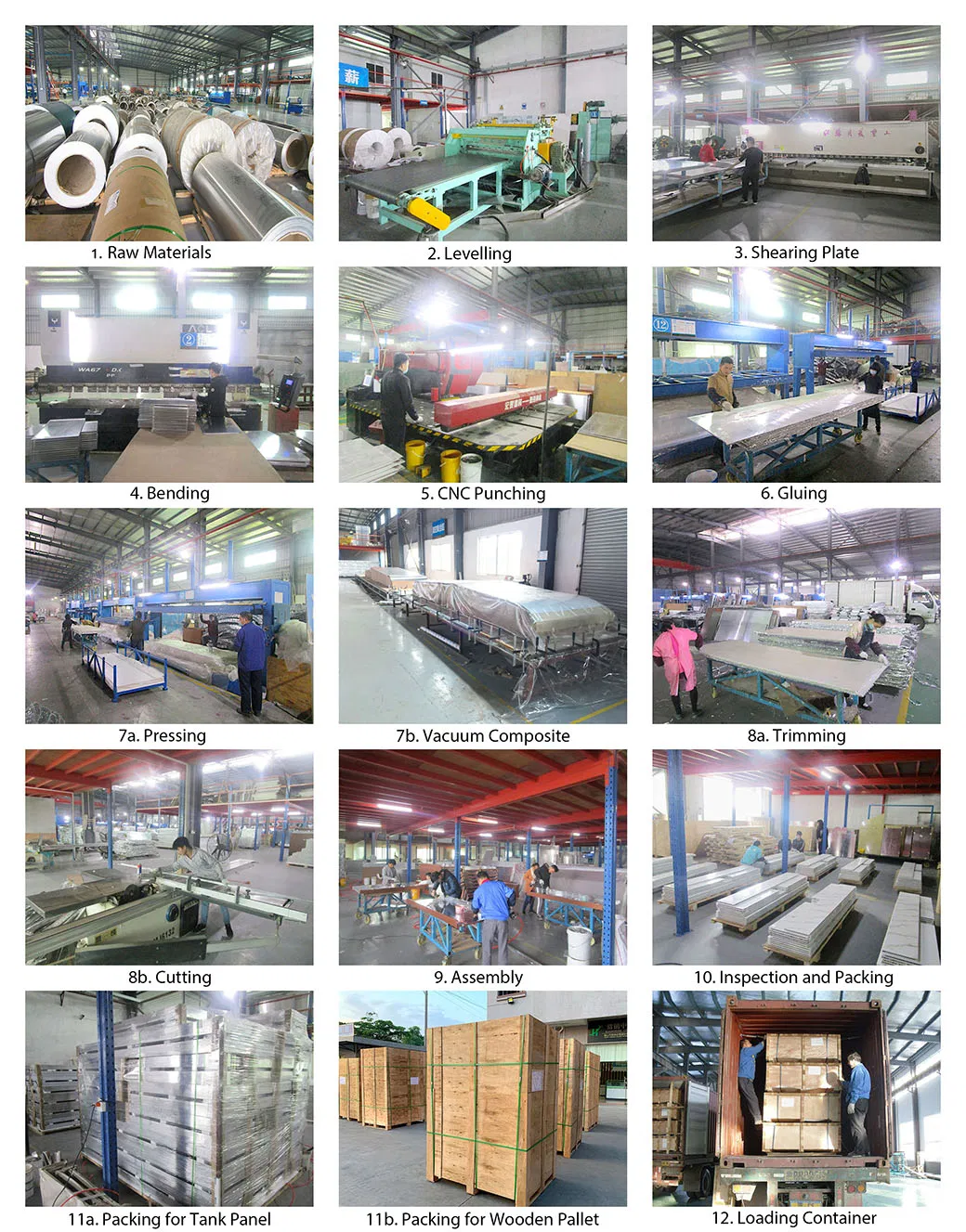

How Do We Process Our Products?

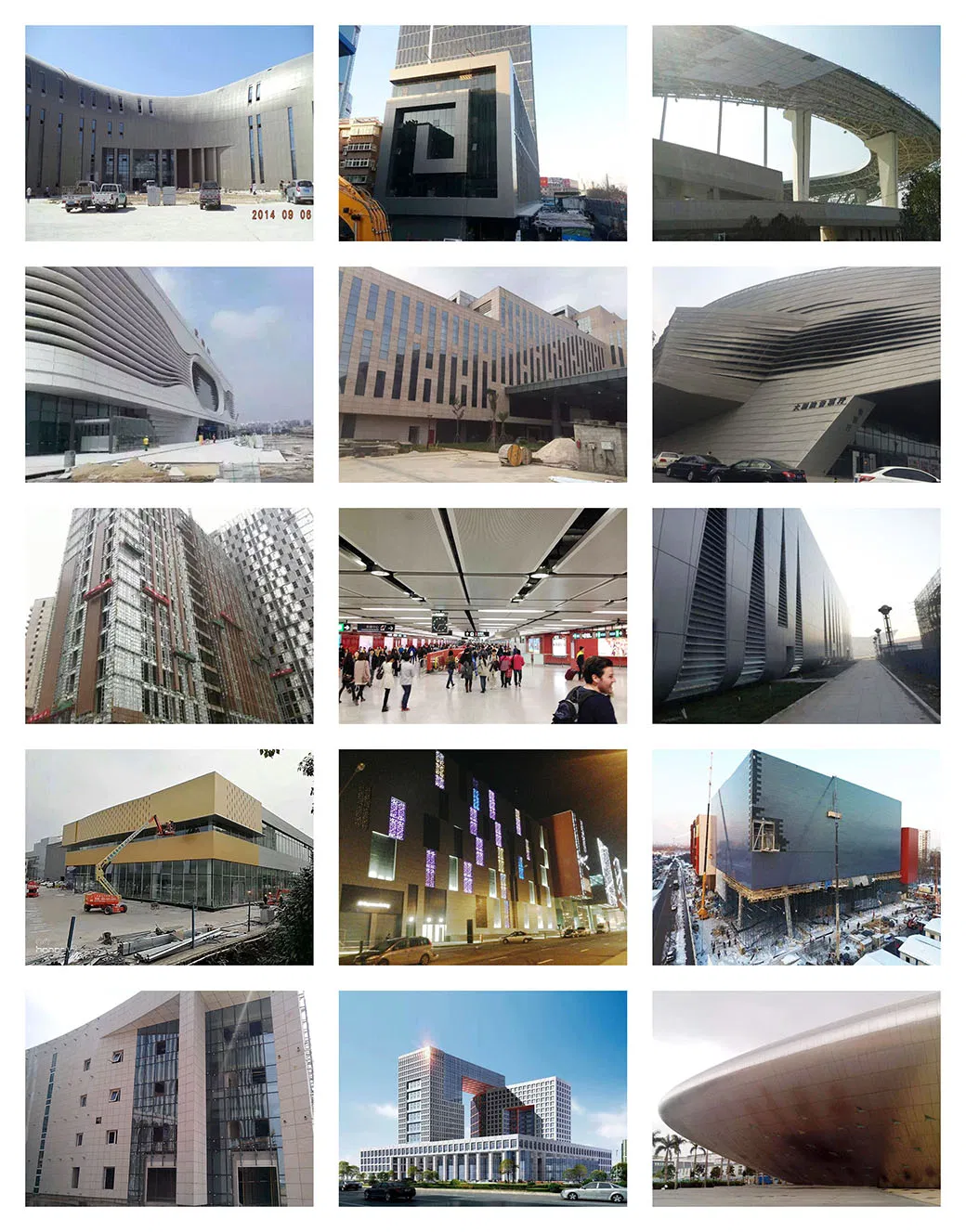

What Projects We did?

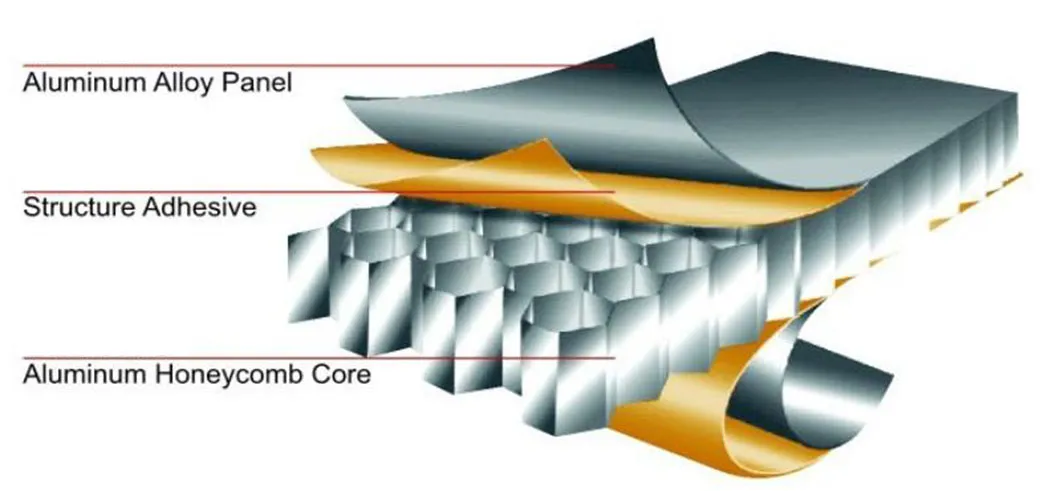

Structure of Our Aluminum Honeycomb Panel
Common Specifications:
| Material | Aluminum Alloy (3003/5052, etc.) |
| Regular Size (W*L) | 1220 * 2440 / 3000 mm |
| Max.Size(W*L*T) | 2000 * 12000 * 300 mm |
| Regular Thickness | 10/12/15/20/25 mm |
| Selectable Thickness | 5-300 mm |
| Regular Surface Treatment | PVDF,PE,Powder Coating, Anodized, etc. |
| Perforation | customizable |
| Applications | Wall cladding(exterior & interior), ceiling & flooring, cleanroom, partitions, ship hull, vehicles, tunnel, etc. |
| Customerization(MTM) | Yes (color, surface texture, size, shape, pattern, etc.) |
| OEM | Available |
| Suggestion: | |
| 1.For interior wall:Surface - PE coating;Thick range - from 8mm to 20mm (facing skin:1.0mm;Back skin:0.7mm) | |
| 2.For exterior wall:Surface - PVDF coating;Most popular thick:15mm, 18mm, 25mm,30mm (facing skin:1.0mm;Back skin:0.7mm) | |
Standard Installing System for Aluminum Honeycomb Panel:
(customized installation systems are available)

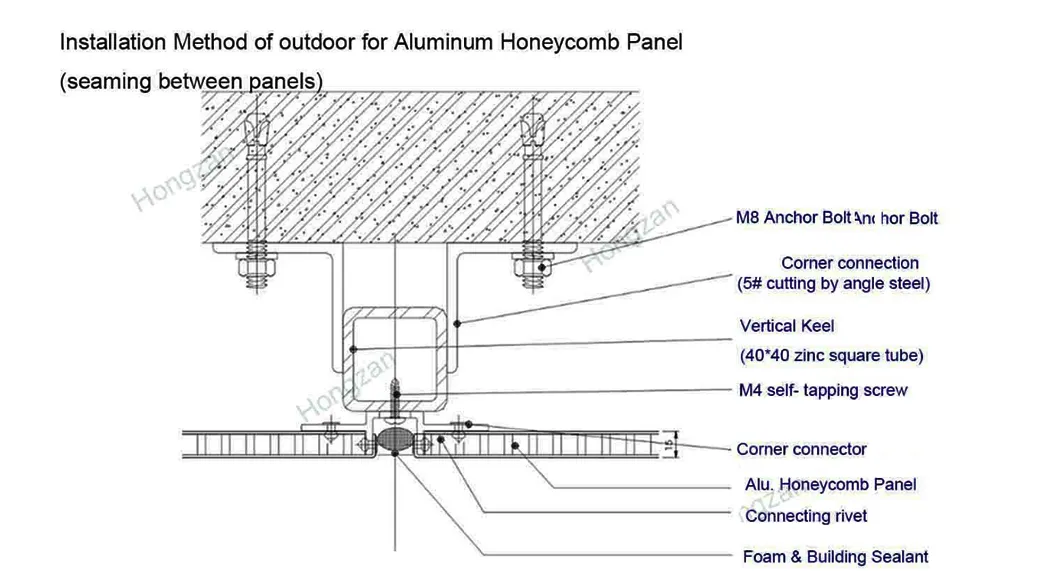

Type A: Standard seaming installing method of outdoor for aluminum honeycomb panel

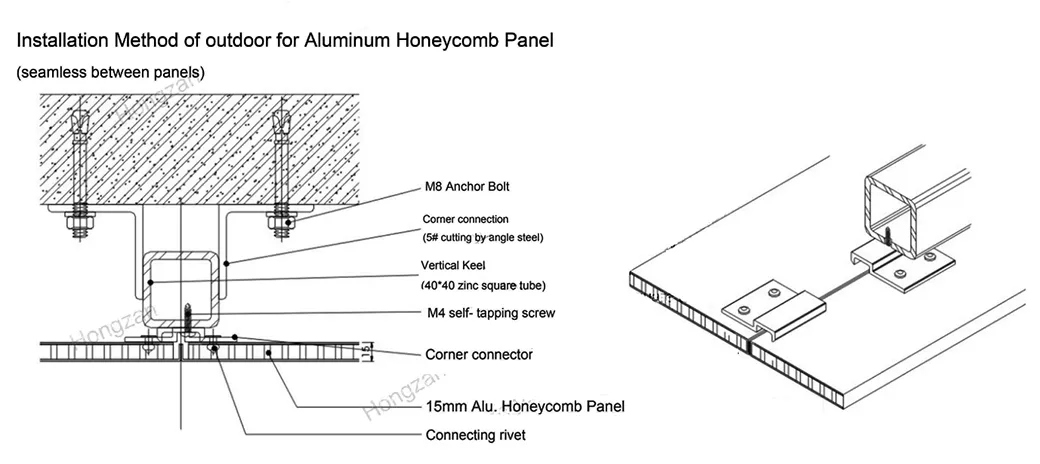

Type B: Standard seamless installing method of outdoor for aluminum honeycomb panel
Technical Data / Test Report
| Technical Data Of HONGZAN Honeycomb Panels | ||
| Testing sample thickness:20mm / 25mm ( 1.0+1.0) : | ||
| Thickness | 20mm | 25mm |
| Front aluminium panel | 1.00mm | |
| Back aluminium panel | 1.00mm | |
| Weight (kg/m2) | 7.4 | 7.8 |
| Mechanical Property of composite panel and panel | ||
| Inertia Moment I (cm4/m) | 19.85 | 31.67 |
| Section Modulus W (cm3/m) | 19 | 24 |
| Rigidity of Composite panel E.I (KN cm2/m) | 139000 | 2217000 |
| Aluminum profile panel | AA 5754A(ALMg3) | |
| Modulus of Elasticity (N/mm2) | 70000 | |
| Tensile Strength of facing panel (N/mm2) | Rm ≥ 220 | |
| 0.2% Yield Stress(N/mm2) | Rp0.2 ≥ 130 | |
| Extensibility (EN485-2:1194) | A50 ≥ 8 | |
| Aluminum linear thermal expansion | 2.4mm/m when the temperature difference is 100ºC | |
| Surface decoration layer | PVDF Spray Baking finish | |
| Glossiness (original Data) | 30-40% | |
| Hardness of pencil | HB-F | |
| Core of Honeycomb | ||
| Size of honeycomb | 1/4''(6.3mm) | |
| Density | About 80kg/m3 | |
| Compression strength (MILL-STD-401) | 4N/mm2 | |
| Fuction Of Acoustics | ||
| Data of sound absorption As | 0.05 | |
| Factor of sound insulation According to ISO717-RW | 23 | 25 |
| Fuction Of Heating | ||
| Data of Heat Conduction λ*(w/m2k) | 2.25 | 2.7 |
| Data of Thermal Insulation R(1/m) (m2k/w) | 0.0089 | 0.0093 |
| Data of Heat Transmission U(k) (w/m2k) | 5.59 | 5.575 |
Production lines & Capacity:
| Aluminum honeycomb panels | 500,000 sqm annually |
| Aluminum honeycomb core & corrugated core | 4.5 million sqm annually |

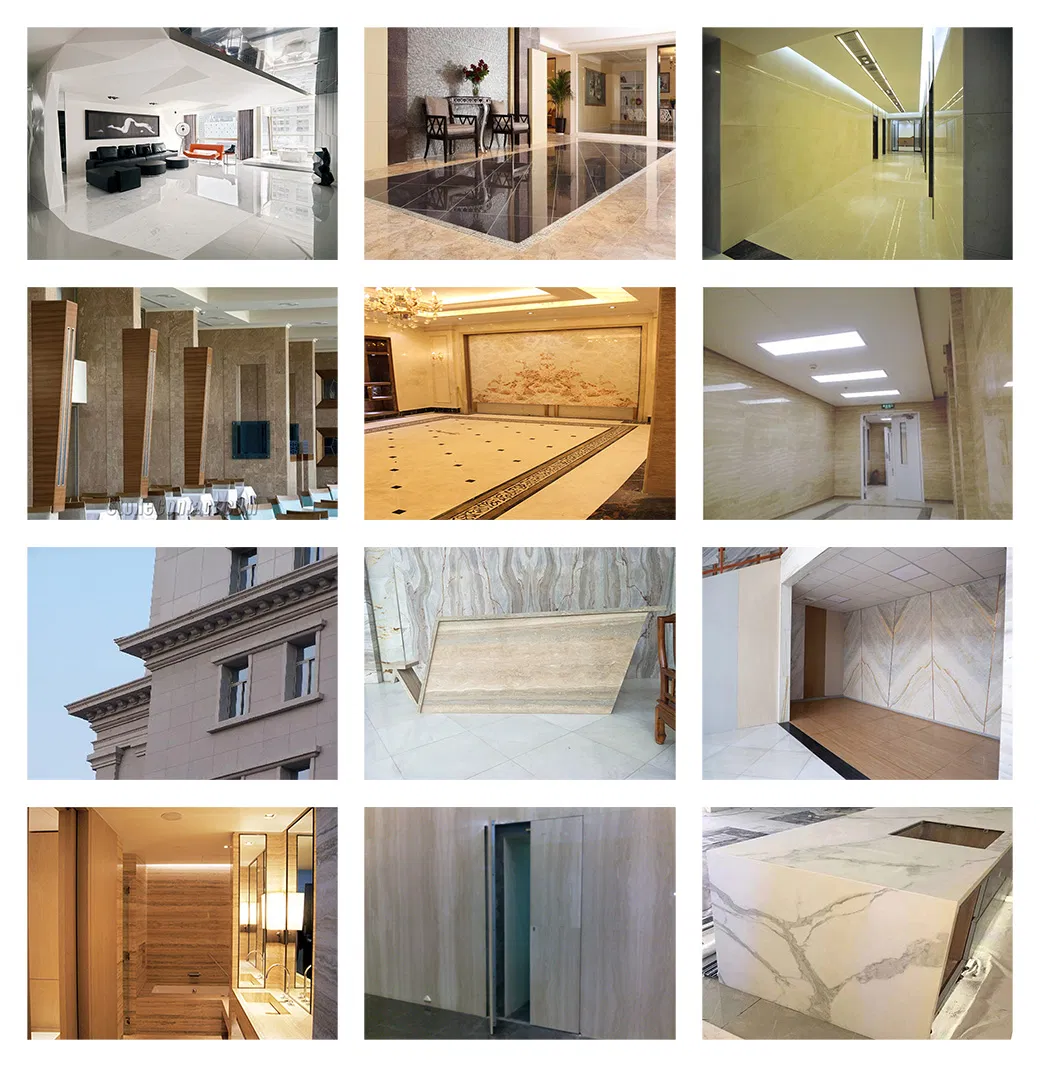

| Stone (marble,granite) & Porcelain honeycomb panel | 80,000 sqm annually |
| FRP honeycomb panel | 100,000 sqm annually |
| Rock wool Sandwich panel | 100,000 sqm annually |
| Solid aluminum sheet | 300,0000 sqm annually |
What Certificates We Obtained ?
Hongzan has obtained international recognized certificates and test reports for aluminum honeycomb panel related to Fire rate, sound insulation, and so on, E.G.:
- ISO 9001:2008 by BV
- Marine Certificates (Fire Rated A2) by LLOYDS
- BS 476 ,475 by TUV PSD Singapore
- EN13501-1 by ITS
- ASTM by ITS
