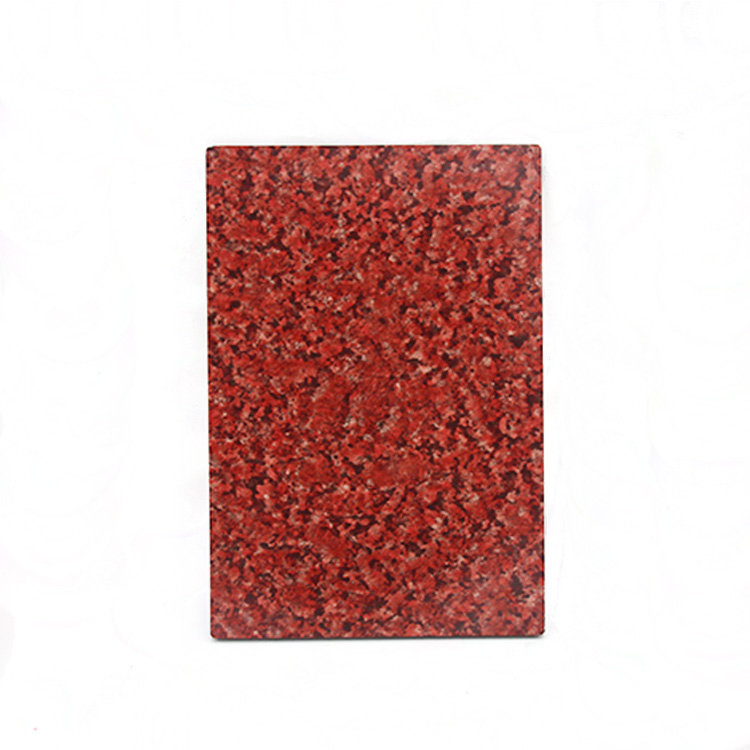

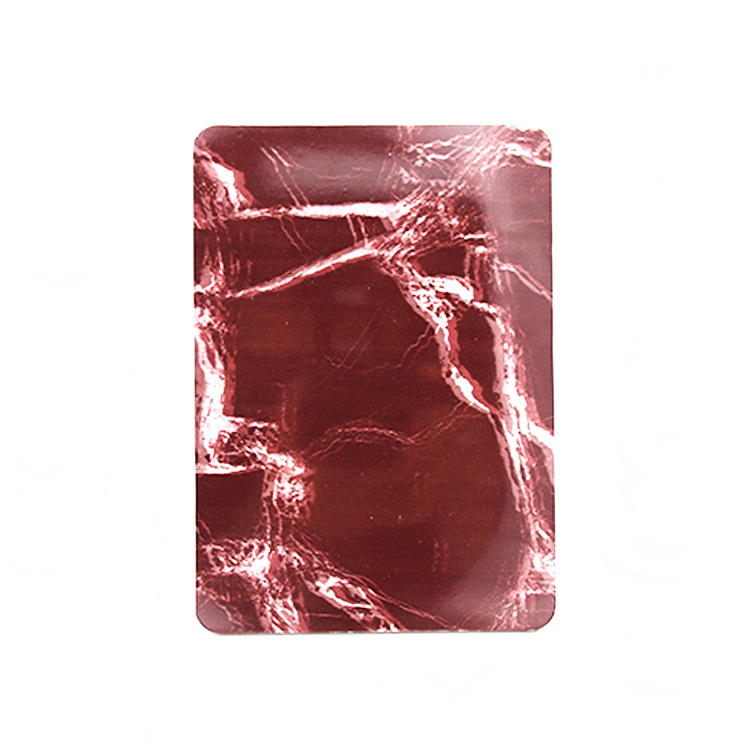

Marble/Stone ACP Fireproof Aluminum Composite Panel
A2/B1 grade Fireproof Aluminum Composite Panel Cladding In recent years, many heavy fire events in the world. It's mainly because the building applied the flammbale building decoration materials.Such as Aluminum Composite Panel, Because the middle core is LDPE , which is easy flammble materials,......
Send Inquiry
Product Description
A2/B1 grade Fireproof Aluminum Composite Panel Cladding
In recent years, many heavy fire events in the world. It's mainly because the building applied the flammbale building decoration materials.Such as Aluminum Composite Panel, Because the middle core is LDPE , which is easy flammble materials, so the building decorated with NON-FIREPROOF Aluminum Composite Panel will be easy fired in case of fire. New NEITABOND make research and produce NEITABOND Grade FR Aluminum Composite Panel
NEITABOND Grade B1 FR Aluminum Composite Panel (ACP panel) Introduction:
NEITABOND Grade B1 acp is a new high security wall decorative fireproof material,
use noncombustible inorganic material as the core,the outer layer is alloying aluminum.
Face fluorocarbob resin coating for the protect film made of a new type of metal composite material.

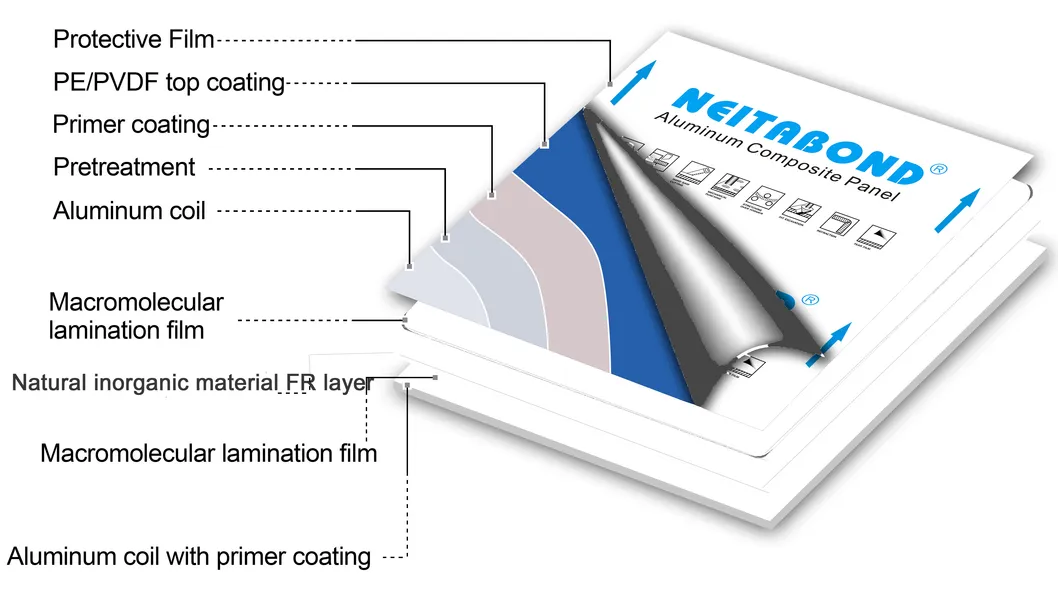

1.Details of B1 FR Aluminum Composite Panel :
2.Raw Material & Size :
Raw material:
Base material: High Strength aluminum alloy sheet
PE core material: Non-combustion miner B1 grade
Surface coating: PVDF,Polyester,FEVE,Nano-PVDF,Spectra
Back coating:Primer coating
Product Range:
| Aluminum Alloy | AA1100 ,AA3003,AA5005 |
| Aluminum Skin | 0.21mm,0.25mm,0.30mm,0.35mm,0.40mm,0.45mm,0.50mm |
| Panel Thickness | 3mm,4mm,5mm |
| Panel Width | 1220mm,1250mm,1500mm |
| Panel Length | 2440mm,3050mm,4050mm,4880mm,5000mm ect |
| Surface Treat | PVDF or PE coating |
| Customers Size | ACCEPTED |
| Glossy | 20%-80% |

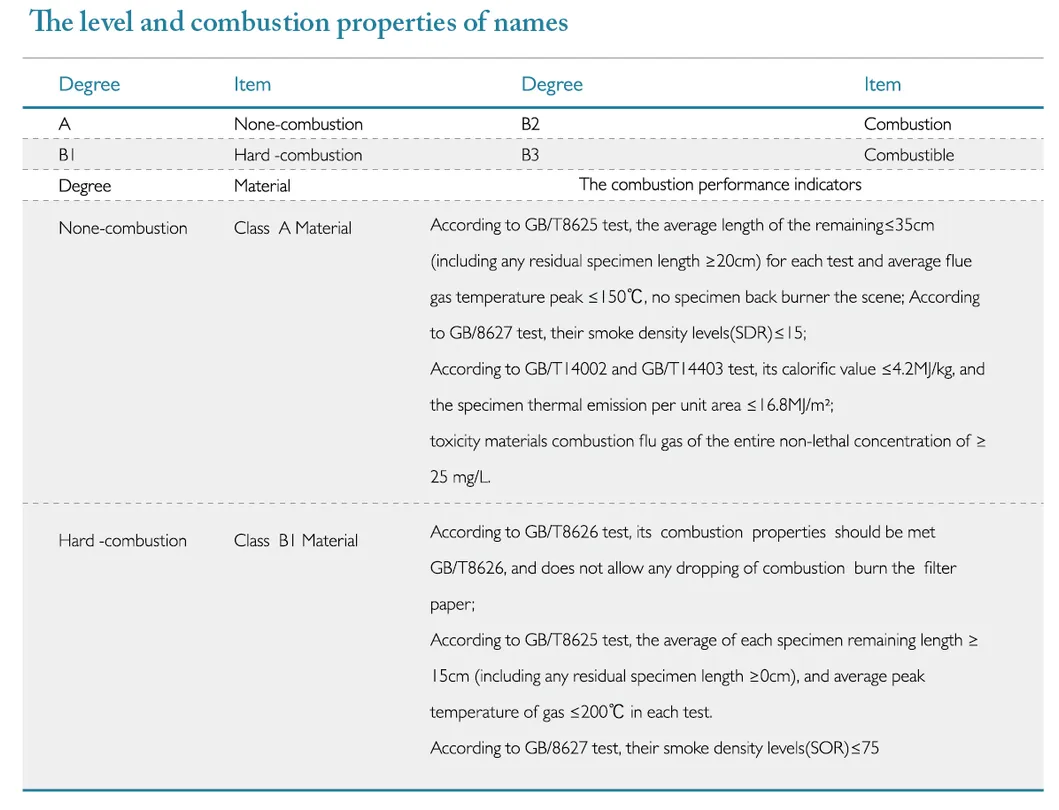

3.Safe & Fire Resistant:
4.Colors & Test:

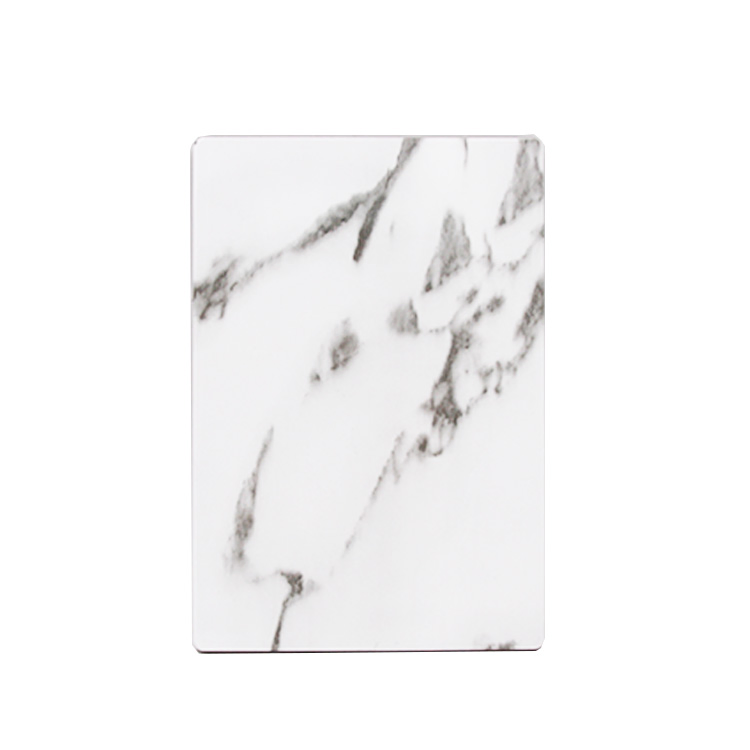

Solid Color Series, Wood/Marble Series,High Glossy Series, Spetra series | Special Color: |
5.Techinical date:
| Paint thickness | PE:15-18um PVDF:23-28um | Panel Length | +/-3mm |
| Paint type | PVDF or PE | Panel Thickness | +/-0.2mm |
| Warranty | PE:7-10 years PVDF:15-20 years | Aluminum thickness | +/-0.02mm |
| Panel Width | +/-2mm | Panel Diaonal | +/-5mm |
6.Advantages:
1.Fire-proof & Flame-retardant (Grade B1,S1,d0,t0)
2.Green Envionment Protection
3.Sound-insulation & Heat-insulation
4.Excellent Anti-seismic & Quakeproof performance
5.Water-proof & Moisture-proof
6.Excellent mechnical property
7.High intensity & Light weight
8.Durable(PVDF coated Grade B1 FR ACP with 20 years quantity warranty)
9.Smooth surface & Precise dimension Elegant appearance
10.Easy fabrication & Convenient Installation

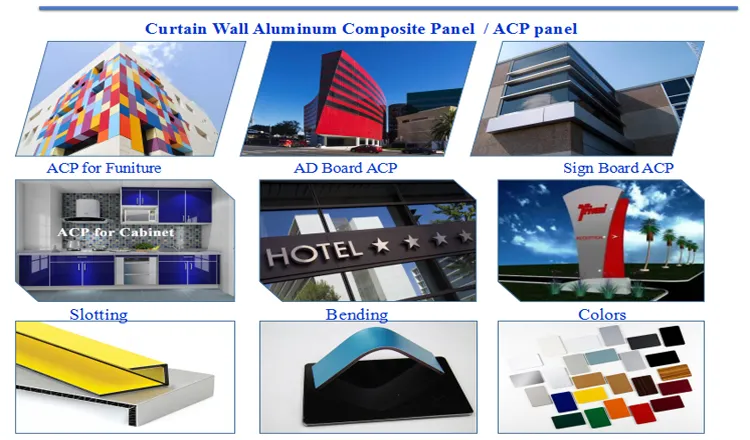

7.Application and usage:
Offce Buildings,Shopping Centers,Industrial Buildings,Airport,Hotels
Bus Station,Hospitals,Schools ,Supermarkets,Residential Buildings,Gas Station

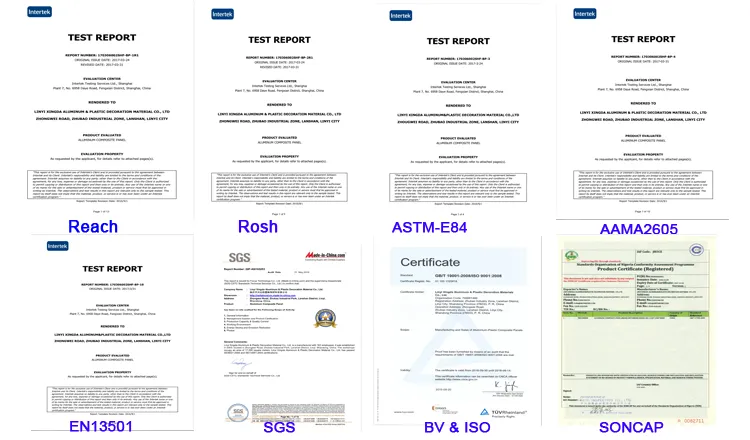

8.Certification:

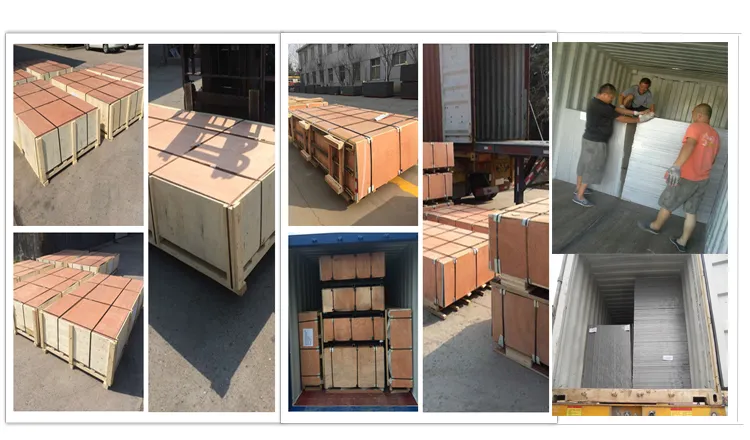

9.Package:

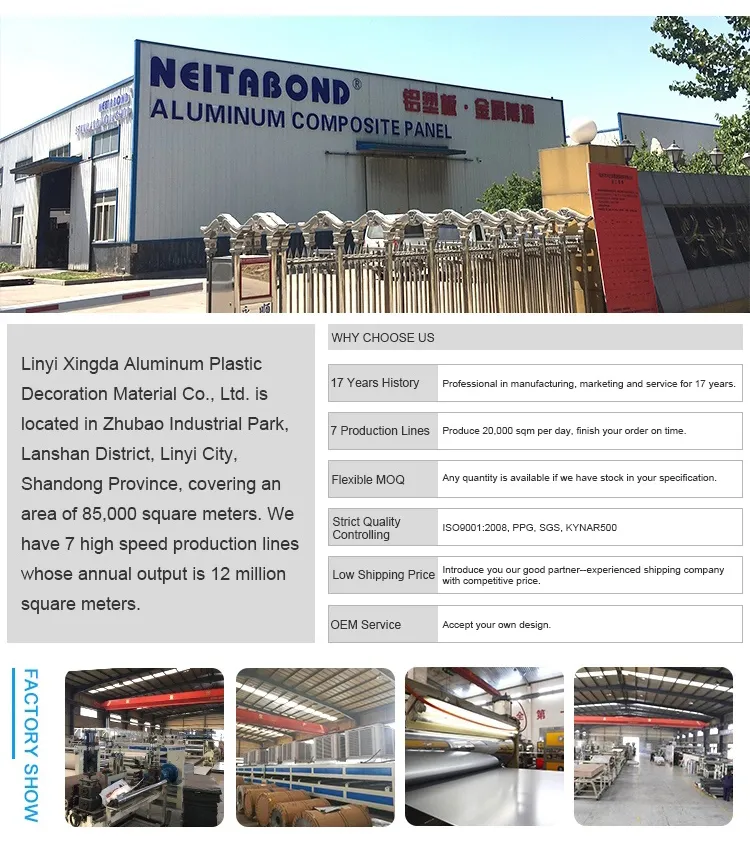

10.Our company:
Linyi Xingda Aluminum & Plastic Decoration Material Co.,Ltd located in Zhubao Industry Zone,Linyi City,Shandong,China.We have 7 aluminium composite panel production lines and exported more than 60 countries since 2008.Now we passed EU standard: Reach,Rosh, AAMA2605,EN13501,SGS,BV,ASTM-E84 ,ISO certification.Our main product is Different series Aluminum Composite Panel.What we doing is honesty business,if you need ACP,we are your better choice.
11.2019 Expo Plan:
12.FAQ:
Q: Where is your factory?
A: Our factory located in Zhubao Industry Zone,Linyi City,Shandong Province,China.
There is airport in Linyi city,when you are in Guangzhou,Shengzhen,Shanghai,Beijing,Hangzhou
and so on there is direct-flight.
Q: How soon can i get a price quote?
A: Once we get your panel thickness,aluminium thickness,dimensions,paint requirement(PVDFcoating or
PE coating),core material,color,we can provide you with one competitive price quote within 24 hours.
Q:Can I get a sample?
A:Yes,the samples are free for you.
Q:If i have sample,would you make the same color,quality to me?
A: Yes,we can.We will make the color for you to confirm.And we have ourself Lab,we can test your samples detail to offer you the price.
Q: How can my order be produced with my brand?
A: We can make it with your brand.Just offer your brand or LOGO design to us,then we will produce all
goods with your brand or LOGO.If your order quantity reaches two containers for first time,this OEM
production is FREE,if your quantity can't reach two containers,you need to pay addtional version
charge,230USD/Per color on the protect film,when your total quantity reach 4 container in
cumulatively,the version charge will re-back to you!
Q: What's your delivery time?
A: Except our legal holiday,it will take around 2 weeks to finish all your orders' production
Q: What's the MOQ?
A:Due to the high machine setup cost and shipping freight, our minimum order quantity is 500SQMS
(If we have stock). It is recommended for you to order a 20"GP to reduce the unit price and shipping cost
