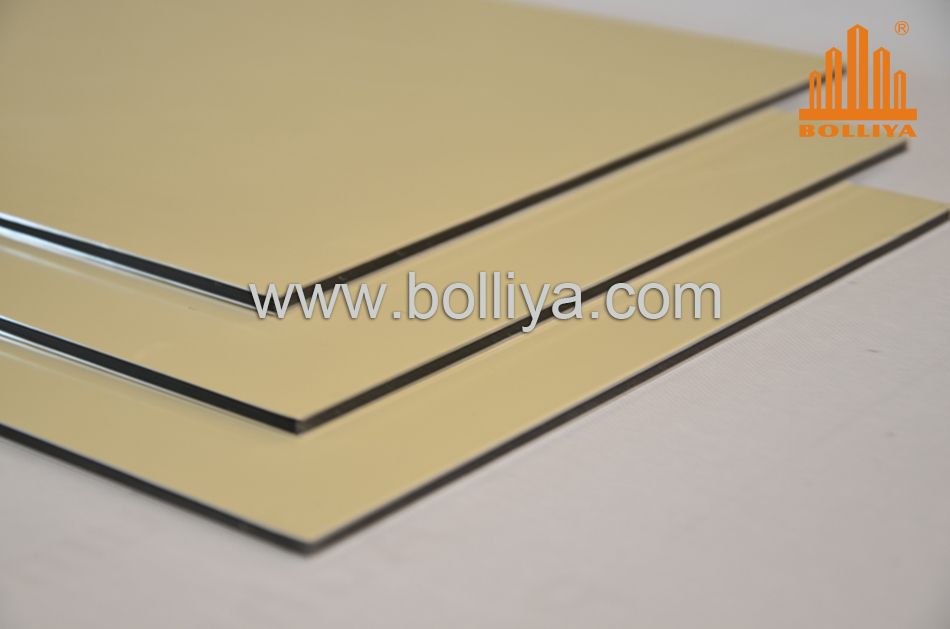

Outdoor Partition Acm ACP Aluminum Wall Panel

Aluminium Composite Panel For Cladding
PF series
1, Painting:
A) Front side painted with PVDF(Flurocarben Powder >70%, Kynar 500)
B) Reverse side painted with Polyester service painting.
2, Aluminium Coils
A)Alloy 1100 H18 or 3003 H24.
B)Thickness 0.08, 0.12, 0.15, 0.21, 0.30, 0.35, 0.40, 0.45, 0.50mm
3, Core Material
A) Thermal-plastic polythelene core
B) Firerated, B1 core. Mineral core.
4, Size and Dimension
A) Thickness: 3mm, 4mm, 5mm and 6mm
B) Width: 1220mm, 1250mm, 1500mm up to 1560mm
C) Length: Up to customer's request, maximum 5800mm.
5, Characteristics:
A)Impact resistant, light weight and easy to process
B)Outstanding weatherproof and fireproof properties
C)Easy to maintain
D) High peeling strength, >10N/cm.
Reybond, Alpolic
