GLOBOND ® INTRODUCTION: Guangdong Gaoli Aluminium Industry Co.,Ltd. with brand name GLOBOND, is a senior manufacturer of Aluminium Composite panel ,Solid aluminium panels and AEP (Aluminium energy saving panels )in China since 1998. The company introduces advanced production lines of automat......
Send Inquiry
Product Description
GLOBOND ® INTRODUCTION:
Guangdong Gaoli Aluminium Industry Co.,Ltd. with brand name GLOBOND, is a senior manufacturer of Aluminium Composite panel ,Solid aluminium panels and AEP (Aluminium energy saving panels )in China since 1998. The company introduces advanced production lines of automatic hot-pressing, related testing apparatus & latest technology from abroad, and chooses high-grade stuff from Sweden, U.S.A and South Korea. The company has established one suit of rigorous quality system, and won good reputation and was approved by many clients home and abroad by providing superior quality products and professional service.The factory have qualified ISO 9001:2014 certificate and quality system .
GLOBOND ® ALUMINIUM COMPOSITE PANELS.

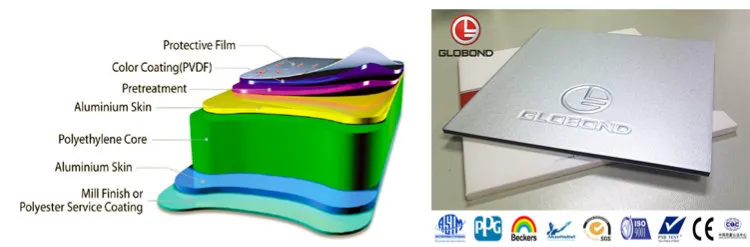

Is comprised of a strippable film. PVDF .FEVE.or PE coating. On front side and mill finish on the back side .two same aluminium skin sandwiching a core of Polyethylene or Fireproof materials. Can be used for interior or exterior with warranty .
GLOBOND ® PRODUCTS SPECIFICATION:
Specification:
GLOBOND ® PRODUCTS SERIES:
Globond products designed different treatment and specification for ranges of application .
GLOBOND @ Wooden color aluminium composite panels for interior and exterior using.
GLOBOND @ Stone color aluminium composite panels for interior and exterior using.
GLOBOND @ Brush color aluminium composite panels for interior and exterior using.
GLOBOND @ Mirror color aluminium composite panels for interior using.
GLOBOND @ Stainless steel aluminium composite panels for interior and exterior using.
GLOBOND @ Fireproof aluminium composite panels for interior and exterior using.
GLOBOND @ Plus PVDF aluminium composite panels for exterior using.
GLOBOND @ Nano PVDF aluminium composite panels for exterior using.
GLOBOND@ Polyester aluminium composite panels for interior using.
GLOBOND ® PRODUCTS CERTIFICATE:
Globond products qualified all kinds of and credited certification to meet classed Engineers and Designers demanding .application in the project orders.
Globond products physical and chemical test reports & certificate:
1.ASTM E330. Windload test report. 2.8kpa.
2.ASTM 119.
3.Japan JIS certificate.
Globond products fireproof test reports:
GLOBOND ® PRODUCTS APPLICATION :
Application scope:
Currently used project:
GLOBOND ® PRODUCTS RAW MATERIALS:
Globond products strictly choose reliable and reputation suppliers of raw materials . all the production procedures are control by electronic & form rules.all the raw materials have inspection & reports before enter the warehouse or start production .
Globond main suppliers :
1.America PPG ® kynar 500.
2.America Dupon ® macromolecular adhesive film .
3.Japan Alpolic protective film.
4.China Petro Oil Maoming Branch Polyethylene.
5.China Chongqing Southwest Alminium Group .aluminium coil.
GLOBOND ® PRODUCTS FEATURES:
1,Light weight, high rigidity and strength
2,Good anti-weathering and anti-corrosiveness properties
3,Good processing quality, able to be processed into various complicated shapes such as plane , arc and spherical surface .
4,Wide selection of colors, good decoration effect
5,Easy to be cleaned and maintained
6,Easy and quick in installation solid panel can be divided into common flat sheet and irregular sheet in terms of shape.
GLOBOND ®PRODUCTS WARRANTY:
Globond products offer different warranty for the different specification of products. For exterior products .the warranty terms is 10 to 20 years.
For interior products .the warranty terms is 5 to 10 years.
GLOBOND ® PRODUCTS FAQ:
1.Q: How long it will take to finish one orders?
A:Generally 15 days after get the deposit or Letter of credit.
2.Q: How many colors you can supply?
A: We have standard colors in the color chart and it for the standard color or order in small qty request. The non standard colors .All the colors we can do or match even wooden. Marble or granite. Chameleon .Spectra color.The best way and speed way is to use RAL color code .it is acceptable and used in the world wide orders.
3.Q: Can you do OEM or ODM ?
A: We have Globond brand with all kinds of ad materials & docs. If you want your own brand .we can supply also .
4.Q:Whats the size you can supply ?
A: We have standard size the same as world popular size 1220 x 2440 x 4mm. or 1250 x 3050 x 4mm even others. The special size we can supply also. Such as 1575 x 5800mm .1500 x 5600mm. the thickness from 2mm to 8mm. we can produce.
5.Q: Whats the quantity one 20GP can load?
A: One 20GP can load 3300m2 with wood packing .if without packing .we can load 4350m2.
6.Q: Whats the payment terms you can accept?
A: 30% amount paid in advance and the remaining paid before shipment.or full amount paid by irrevocable letter of credit at sight.
7.Q:How long the protective film can be keep on the panels after install the panels ?
A: We suggest with 45 days after expose the protective film in the sunlight.
8.Q: How to store the panels ?
A: Keep the panels in wind flew and dry area avoid water or wet area to touch the land directly.
9.Q:Whats the point we have to pay attention when install the panels ?
A: a. The accessories should be specified by the reputable and qualified designer or engineers.
b.Install the panels in ont direction only.
c.Panels span and frame spefication should be calculated by the structural engineers.
Guangdong Gaoli Aluminium Industry Co.,Ltd. with brand name GLOBOND, is a senior manufacturer of Aluminium Composite panel ,Solid aluminium panels and AEP (Aluminium energy saving panels )in China since 1998. The company introduces advanced production lines of automatic hot-pressing, related testing apparatus & latest technology from abroad, and chooses high-grade stuff from Sweden, U.S.A and South Korea. The company has established one suit of rigorous quality system, and won good reputation and was approved by many clients home and abroad by providing superior quality products and professional service.The factory have qualified ISO 9001:2014 certificate and quality system .
GLOBOND ® ALUMINIUM COMPOSITE PANELS.
Is comprised of a strippable film. PVDF .FEVE.or PE coating. On front side and mill finish on the back side .two same aluminium skin sandwiching a core of Polyethylene or Fireproof materials. Can be used for interior or exterior with warranty .
GLOBOND ® PRODUCTS SPECIFICATION:
Specification:
| Standard size | 1220 * 2440 * 4mm |
| Thickness: Range | 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm 10mm etc |
Length Range | 1220mm, 2440mm, 3200mm, 4000mm, 5000mm, 5500mm, 8000mm |
| Width available | 1250mm, 1270mm, 1500mm, 1575mm. 1600mm, 1700mm, 1800mm |
| Aluminum skin thickness | 0.30 ~ 0.50mm |
| Colors | As GLOBOND color chart show or special color which confirmed by mutual. |
| Coating | America PPG, Kynar 500. PVDF resin painting or FEVE coating. |
| Packing | Protective film and Wooden Pallet |
GLOBOND ® PRODUCTS SERIES:
Globond products designed different treatment and specification for ranges of application .
GLOBOND @ Wooden color aluminium composite panels for interior and exterior using.
GLOBOND @ Stone color aluminium composite panels for interior and exterior using.
GLOBOND @ Brush color aluminium composite panels for interior and exterior using.
GLOBOND @ Mirror color aluminium composite panels for interior using.
GLOBOND @ Stainless steel aluminium composite panels for interior and exterior using.
GLOBOND @ Fireproof aluminium composite panels for interior and exterior using.
GLOBOND @ Plus PVDF aluminium composite panels for exterior using.
GLOBOND @ Nano PVDF aluminium composite panels for exterior using.
GLOBOND@ Polyester aluminium composite panels for interior using.
GLOBOND ® PRODUCTS CERTIFICATE:
Globond products qualified all kinds of and credited certification to meet classed Engineers and Designers demanding .application in the project orders.
Globond products physical and chemical test reports & certificate:
1.ASTM E330. Windload test report. 2.8kpa.
2.ASTM 119.
3.Japan JIS certificate.
Globond products fireproof test reports:
- Australia AS/NZS 1350.3 AND 1350.1
- America ASTM E84 Class A. & ASTM E119 two hours fireproof.
- Singapore PSB test reports.
- Singapore TUV. Lab BS476 Part 6 and part 7.
- Germany DIN 4102 .Class 0.
- European Union EN13501.A2.
- China National Building Materials Test Center GB/T 17748-2008 B1.Grade.
- Russia GOST fireproof and Sanitary test reports.

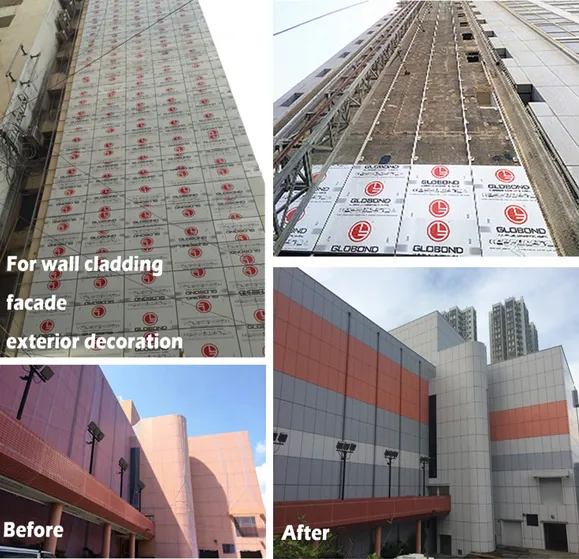

GLOBOND ® PRODUCTS APPLICATION :

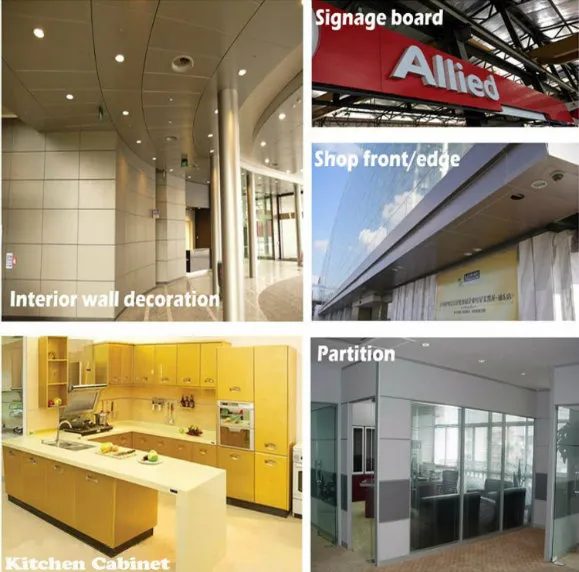

Application scope:
- Decoration of interior wall, lobby, ceiling, bathroom, kitchen.
- Partition, balcony, furniture.
- Advertisement board, signboard, display platform.
- Interior decoration of industrial plant, vehicle and boat materials.
- airport. bus station .stadium .furniture center. CBD. hotel project etc.

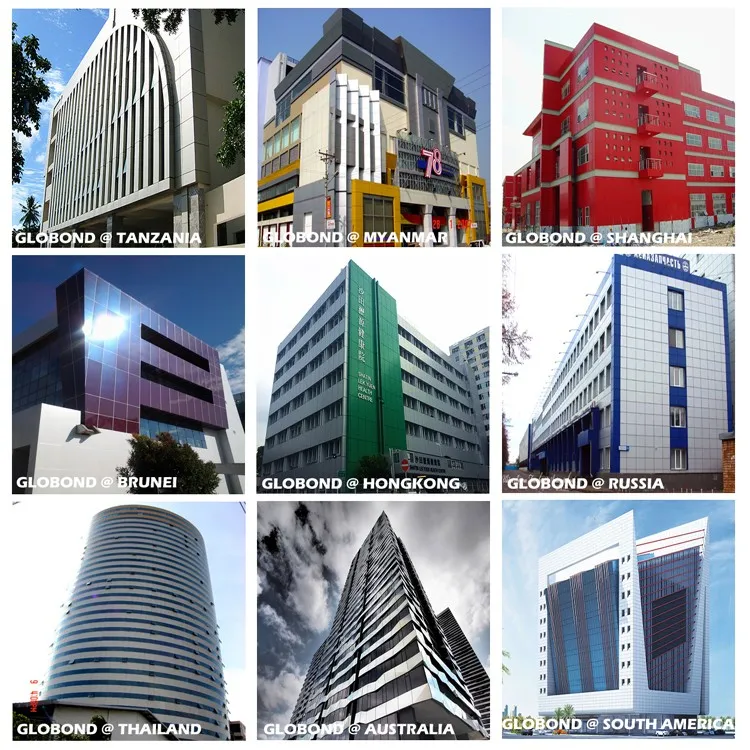

Currently used project:
- Auto-mobile showrooms: BMW, Fords, Toyota, Honda, Suzuki, Subaru, Mitsubishi, etc.
- McDonald's chain stores.
- Bus station or subway station, such as our Dubai Metro Station, Shanghai Subway Square, etc.
- Airports: New Doha International Airport(In Qatar), Penang International Airport (in Malaysia).
- Hotel exterior cladding: Green Island Hotel (5-star, located in Danang city of Vietnam), Lijing Hotel(5 star, Shanghai).
- Government office building: Vungtau Administrative Political Centre (Vietnam).
- Bank: China Construction Bank, BPD (Indonesia), HSBC (HK), etc.
- Supermarket: Jusco, Tesco and Walmart (interior and exterior application).
GLOBOND ® PRODUCTS RAW MATERIALS:
Globond products strictly choose reliable and reputation suppliers of raw materials . all the production procedures are control by electronic & form rules.all the raw materials have inspection & reports before enter the warehouse or start production .
Globond main suppliers :
1.America PPG ® kynar 500.
2.America Dupon ® macromolecular adhesive film .
3.Japan Alpolic protective film.
4.China Petro Oil Maoming Branch Polyethylene.
5.China Chongqing Southwest Alminium Group .aluminium coil.
GLOBOND ® PRODUCTS FEATURES:
1,Light weight, high rigidity and strength
2,Good anti-weathering and anti-corrosiveness properties
3,Good processing quality, able to be processed into various complicated shapes such as plane , arc and spherical surface .
4,Wide selection of colors, good decoration effect
5,Easy to be cleaned and maintained
6,Easy and quick in installation solid panel can be divided into common flat sheet and irregular sheet in terms of shape.
GLOBOND ®PRODUCTS WARRANTY:
Globond products offer different warranty for the different specification of products. For exterior products .the warranty terms is 10 to 20 years.
For interior products .the warranty terms is 5 to 10 years.
GLOBOND ® PRODUCTS FAQ:
1.Q: How long it will take to finish one orders?
A:Generally 15 days after get the deposit or Letter of credit.
2.Q: How many colors you can supply?
A: We have standard colors in the color chart and it for the standard color or order in small qty request. The non standard colors .All the colors we can do or match even wooden. Marble or granite. Chameleon .Spectra color.The best way and speed way is to use RAL color code .it is acceptable and used in the world wide orders.
3.Q: Can you do OEM or ODM ?
A: We have Globond brand with all kinds of ad materials & docs. If you want your own brand .we can supply also .
4.Q:Whats the size you can supply ?
A: We have standard size the same as world popular size 1220 x 2440 x 4mm. or 1250 x 3050 x 4mm even others. The special size we can supply also. Such as 1575 x 5800mm .1500 x 5600mm. the thickness from 2mm to 8mm. we can produce.
5.Q: Whats the quantity one 20GP can load?
A: One 20GP can load 3300m2 with wood packing .if without packing .we can load 4350m2.
6.Q: Whats the payment terms you can accept?
A: 30% amount paid in advance and the remaining paid before shipment.or full amount paid by irrevocable letter of credit at sight.
7.Q:How long the protective film can be keep on the panels after install the panels ?
A: We suggest with 45 days after expose the protective film in the sunlight.
8.Q: How to store the panels ?
A: Keep the panels in wind flew and dry area avoid water or wet area to touch the land directly.
9.Q:Whats the point we have to pay attention when install the panels ?
A: a. The accessories should be specified by the reputable and qualified designer or engineers.
b.Install the panels in ont direction only.
c.Panels span and frame spefication should be calculated by the structural engineers.
