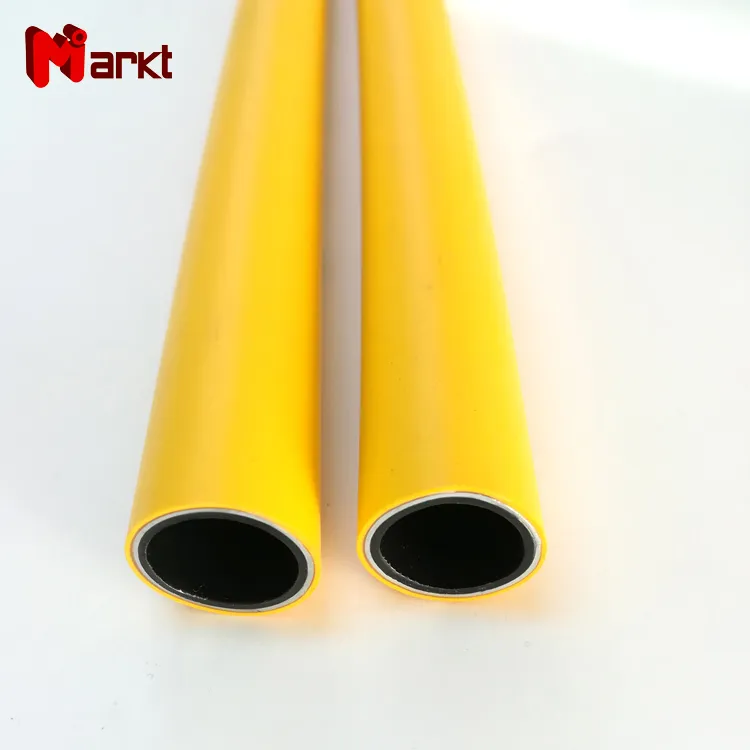

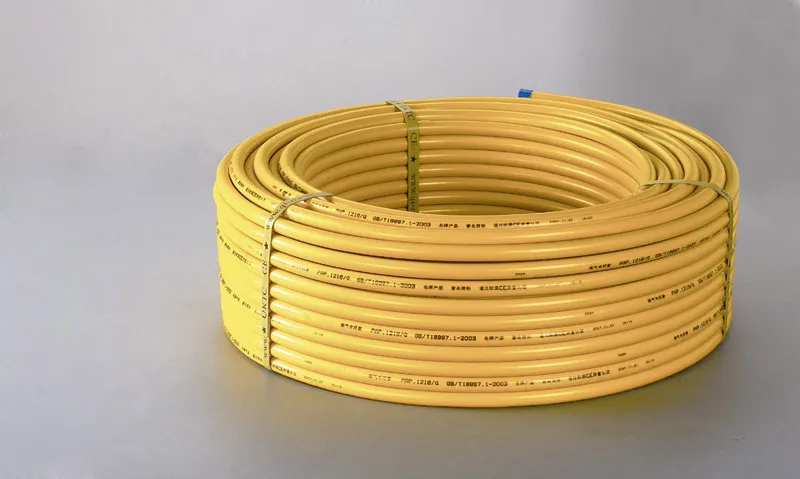

1014mm Polyethylene Aluminum Composite Pipe Natural Gas PE-Al-PE Pipe

Product Description

1014mm Polyethylene aluminum composite pipe natural gas PE-AL-PE pipe:
Description:
Mark Aluminum -plastic composite pipe is consists of aluminum sheet with inner and outer layer plastic, tightly bonded with a special adhesive to the aluminum sheet that is welded in overlapping and butt welding way.
It have advantage of both metal and plastic pipesit can be used in:
1. Pipes for hot and cold water pipeline system in industry and residential area.
2. Pipes for industry and chemical liquids conveying.
3. Pipes for conveying drinking water.
4. Pipeline for compressed air.
5. Heating system under floor and wall.
Main Characteristics
Thermal conductivity 0.45W/(m. K. )
Coefficient of heat expansion 0.025mm/(m. K)
Bend radius ≥ 5D(D means outside diameter)
Oxygen-permeability 0
Coefficient of heat roughness 0.0004mm
Other Static-free, longevity
Detail goods:
1014mm Polyethylene Aluminum Composite Pipe Natural Gas PE-Al-PE Pipe

Markt PE-AL-PE pipe type and size:
1,Type :butt welding and overlapped

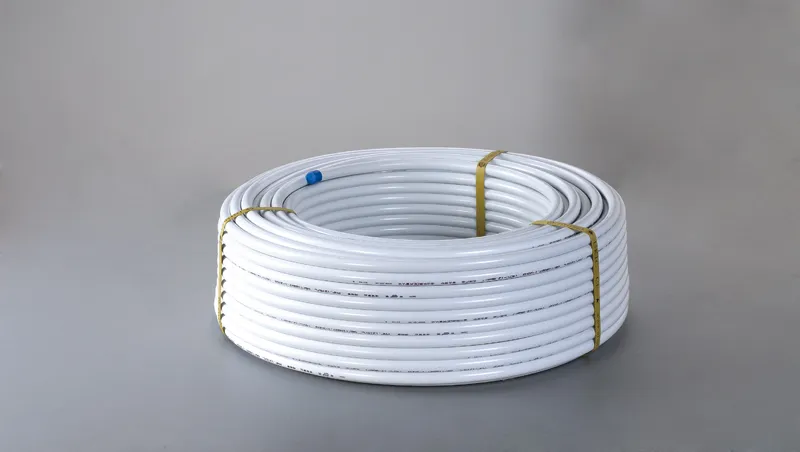

2,Color:Black out and white inside
Yellow out and white inside
3,Logo:OEM ,NO Logo or cusotmer logo
4,Used for :Water and gas systems
5,Size ,from 14-63mm
6,Supplly both pipe and fittings

ALUMINUNM PLASTIC COMPOSITE PIPE---overlaped PE(PEX)-AL-PE(PEX)
Picture	Desc.	Modle No.	Spec.	Wall thickness(mm)	Qty/pack(M)
	PE-AL-PE PIPE Cold water (MOLP-01)	MOLP12	0912	2.0	100/200/500
		MOLP14	1014	2.0	100/200/500
		MOLP15	1115	2.0	100/200/500
		MOLP16	1216	2.0	100/200/500
		MOLP18	1418	2.0	100/200
		MOLP20	1620	2.0	100/200
		MOLP22	1722	2.5	100/200
		MOLP25	2025	2.5	50/100
		MOLP26	2026	3.0	50/100
		MOLP32	2632	3.0	50/100
		MOLP40	3240	4.0	50/6
		MOLP50	4150	4.5	50/6
		MOLP63	5163	6.0	50/6
	Print:Logo PE-AL-PE water pipe 16*2.0mm 60°C-10bar standard Certificate No. Date 15M
	PE-AL-PE PIPE Gas systems (MOGP-01)	MOGP12	0912	2.0	100/200/500
		MOGP14	1014	2.0	100/200/500
		MOGP15	1115	2.0	100/200/500
		MOGP16	1216	2.0	100/200/500
		MOGP18	1418	2.0	100/200
		MOGP20	1620	2.0	100/200
		MOGP22	1722	2.5	100/200
		MOGP25	2025	2.5	50/100
		MOGP26	2026	3.0	50/100
		MOGP32	2632	3.0	50/100
		MOGP40	3240	4.0	50/6
		MOGP50	4150	4.5	50/6
		MOGP63	5163	6.0	50/6

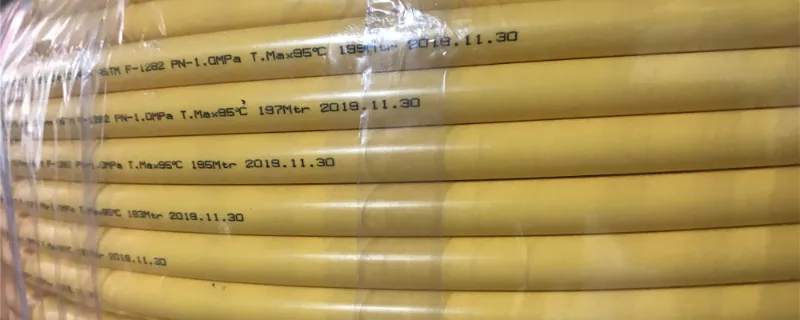

	Print:Logo PE-AL-PE gas pipe 16*2.0mm 60°C-10bar standard Certificate No. Date 15M
	PEX-AL-PEX PIPE Gas systems (MOGP-02)	MOGP12	0912	2.0	100/200/500
		MOGP14	1014	2.0	100/200/500
		MOGP15	1115	2.0	100/200/500
		MOGP16	1216	2.0	100/200/500
		MOGP18	1418	2.0	100/200
		MOGP20	1620	2.0	100/200
		MOGP22	1722	2.5	100/200
		MOGP25	2025	2.5	50/100
		MOGP26	2026	3.0	50/100
		MOGP32	2632	3.0	50/100
		MOGP40	3240	4.0	50/6
		MOGP50	4150	4.5	50/6
		MOGP63	5163	6.0	50/6
	Print: PEX-AL-PE(X) gas pipe 16*2.0mm 95°C10bar Standard Certificate No. Date 20M
	PEX-AL-PE(X) Hot water pipe (MORP-01) (MORP-02)	MORP12	0912	2.0	100/200/500
		MORP14	1014	2.0	100/200/500
		MORP15	1115	2.0	100/200/500
		MORP16	1216	2.0	100/200/500
		MORP18	1418	2.0	100/200
		MORP20	1620	2.0	100/200
		MORP22	1722	2.5	100/200
		MORP25	2025	2.5	50/100
		MORP26	2026	3.0	50/100
		MORP32	2632	3.0	50/100
		MORP40	3240	4.0	50/6
		MORP50	4150	4.5	50/6
		MORP63	5163	6.0	50/6
	Print: PEX-AL-PE(X) 16*2.0mm 95°C10bar Standard Certificate No. Date 20M

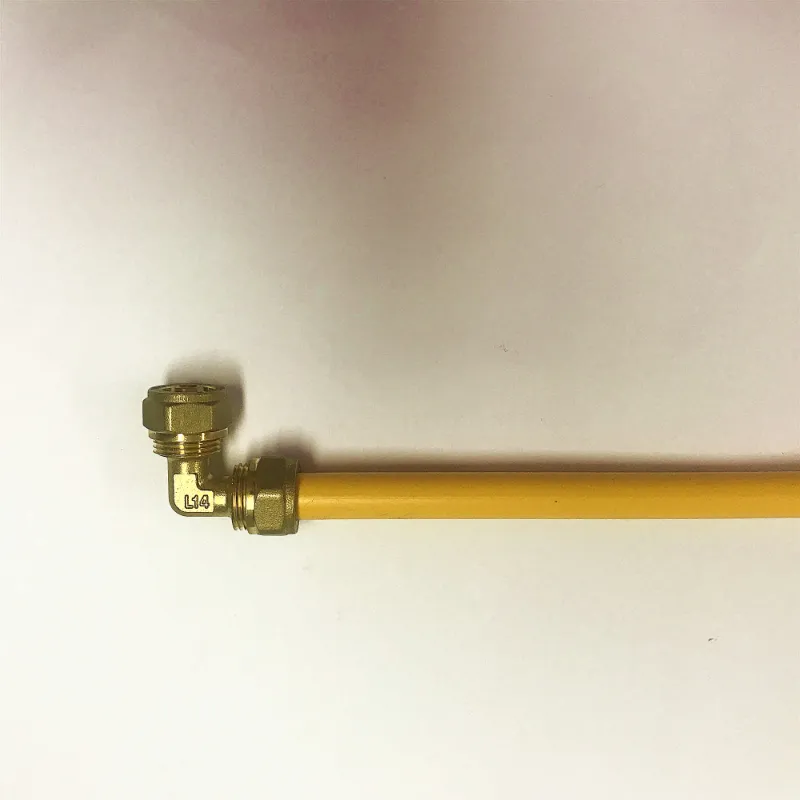

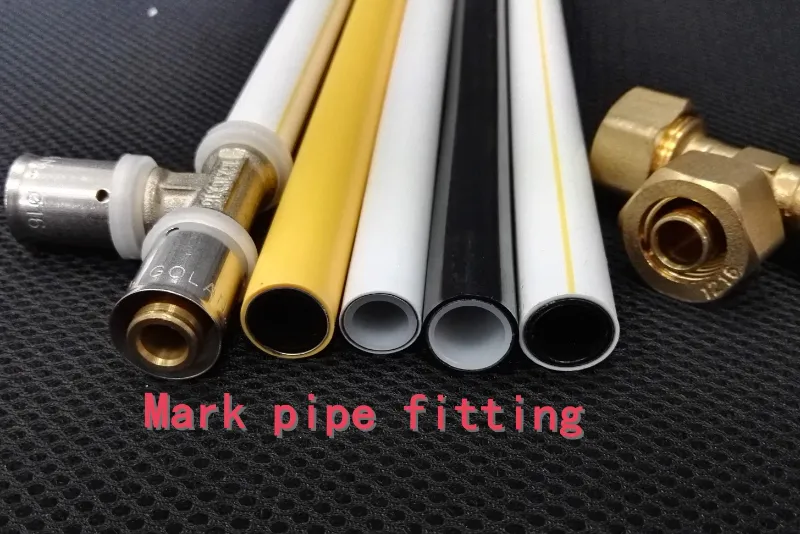

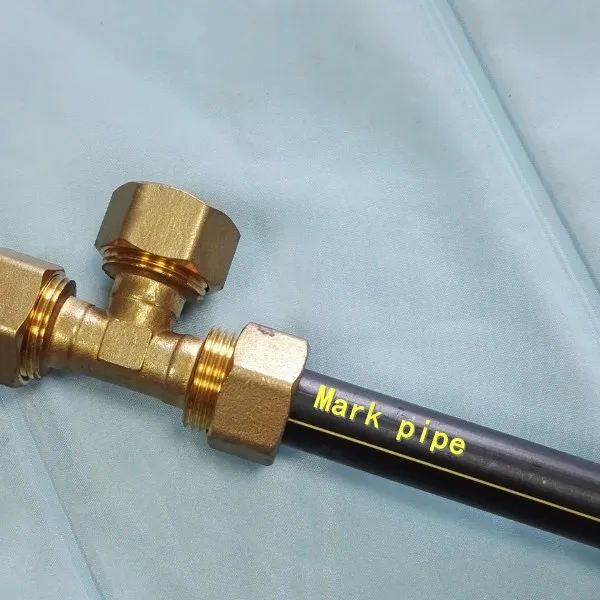

Connect of PE-AL-PE Pipe and brass fittings:

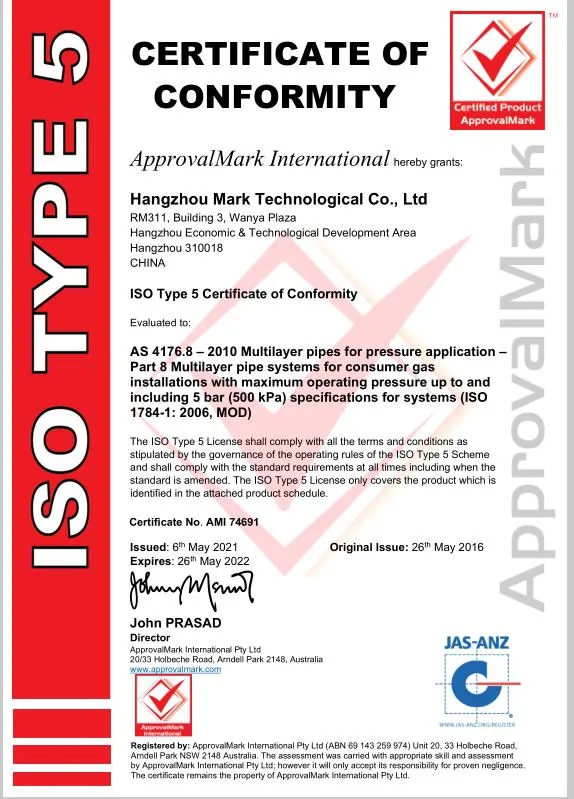

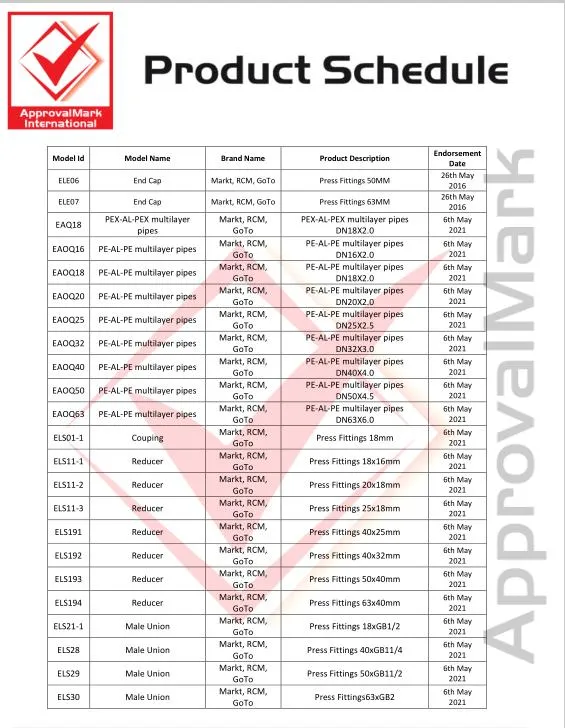

Certificate for markt PE-AL-PE Gas pipe :

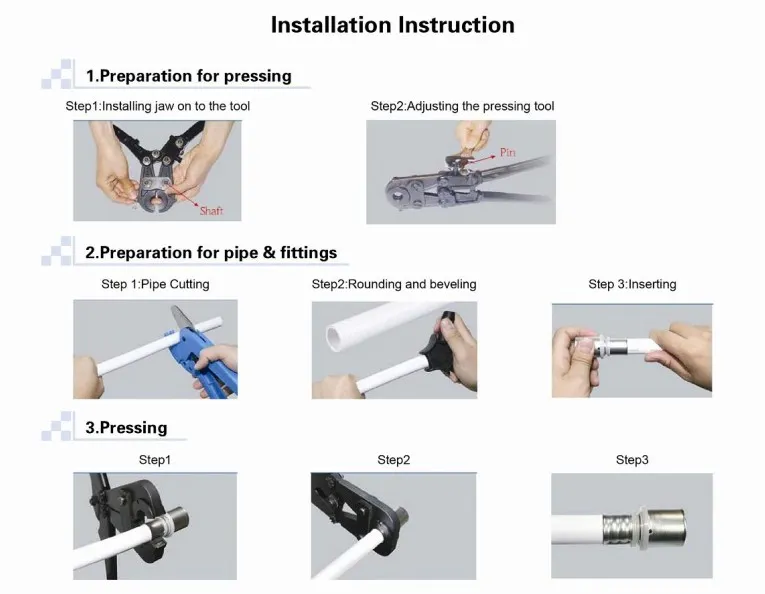

Pipe and fitting installen:

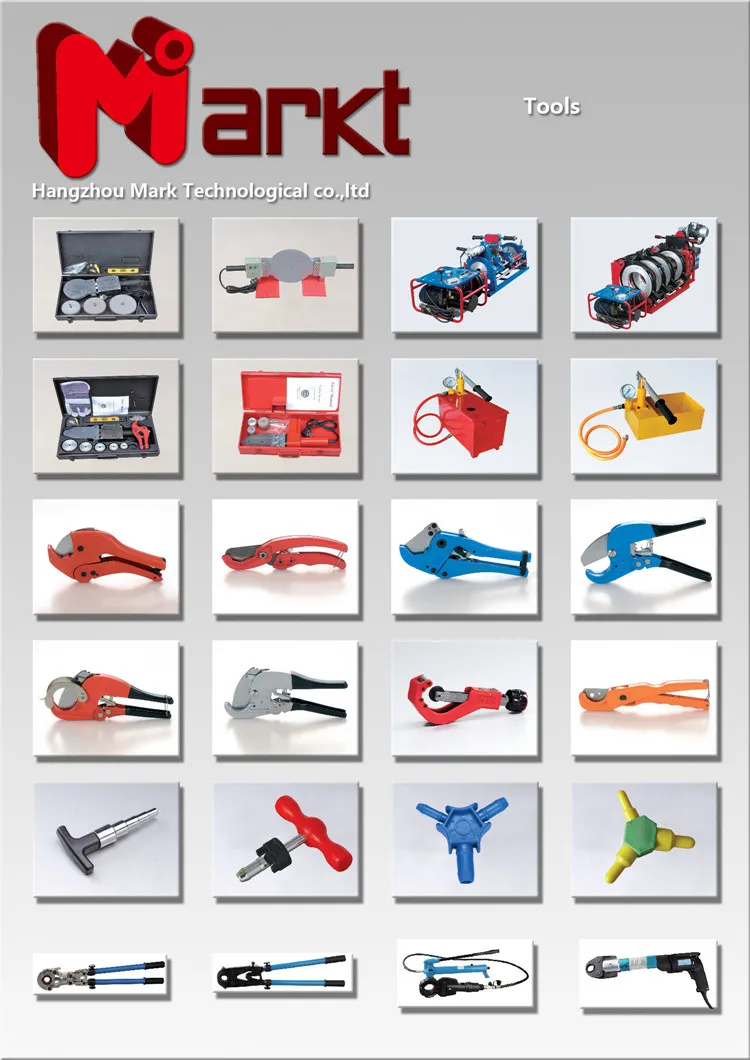

Tools for pex-al-pex pipe and fittings:
