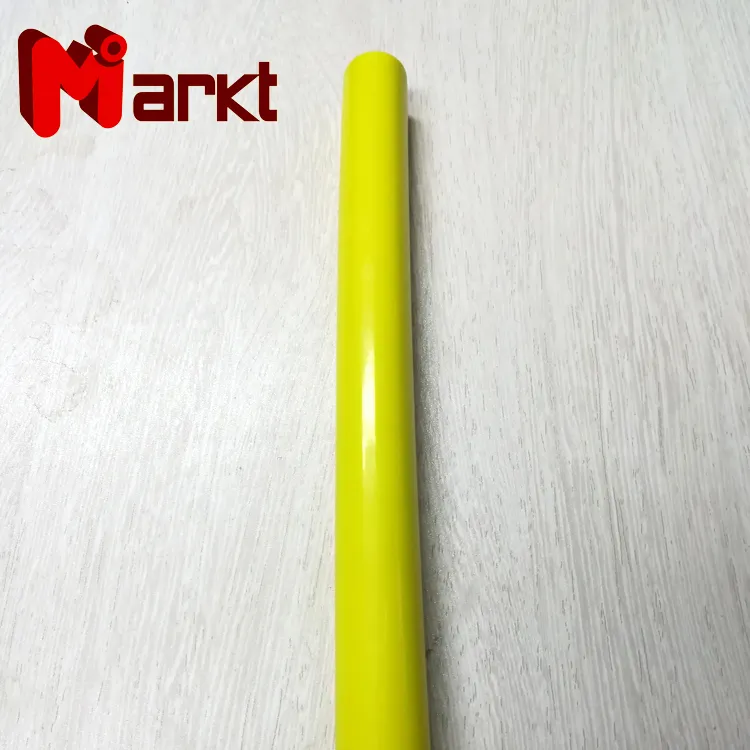

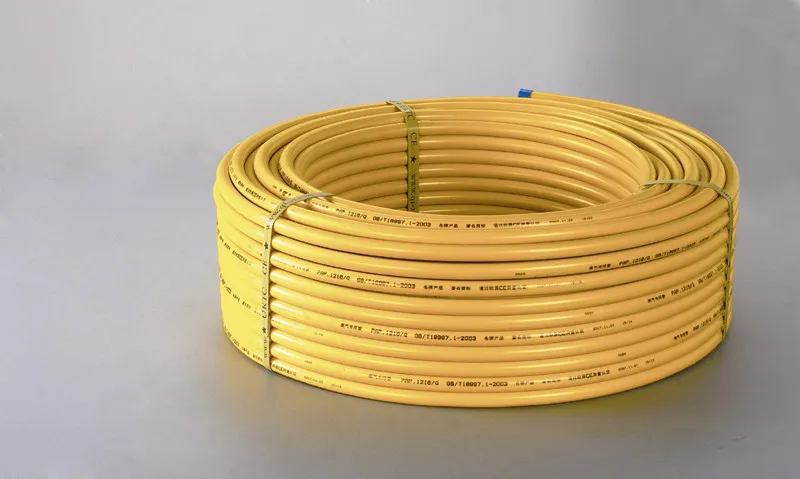

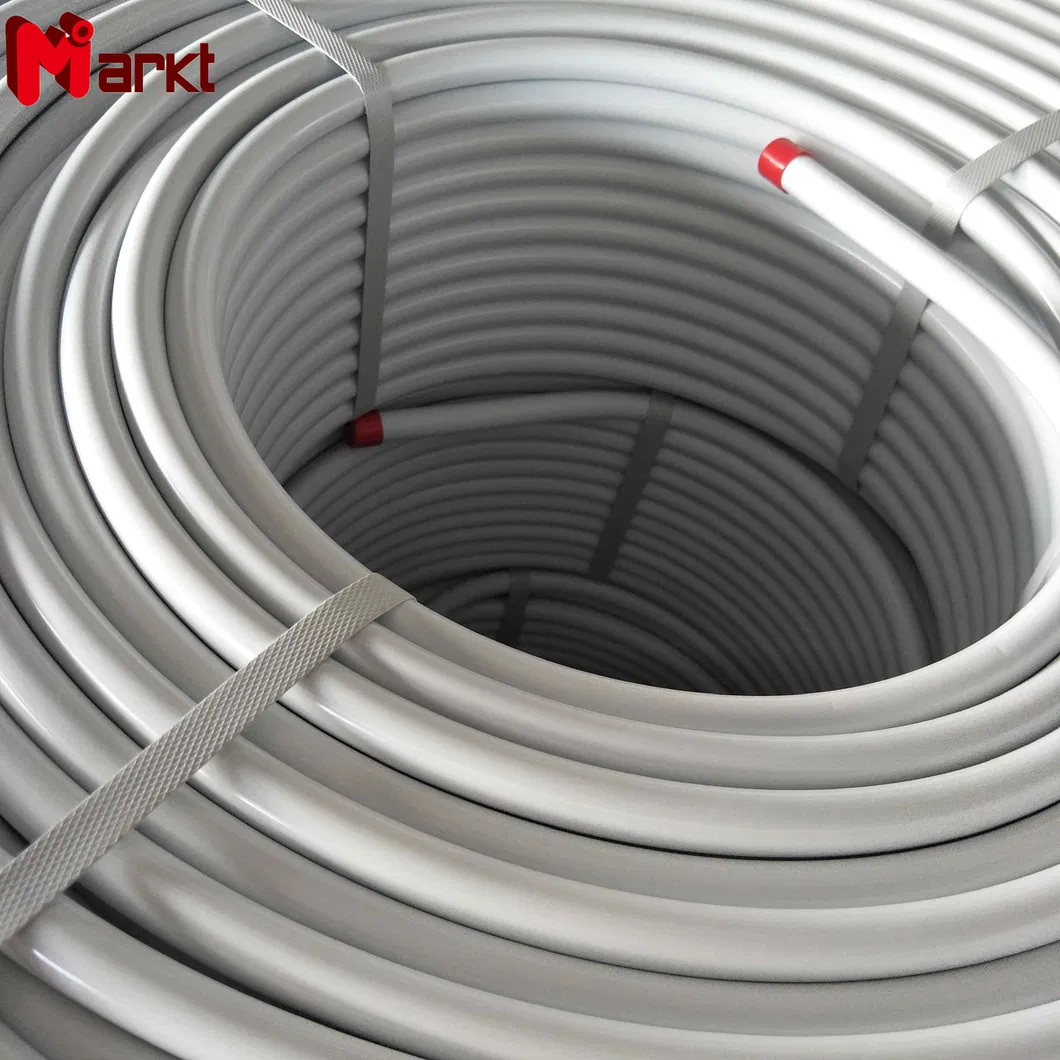

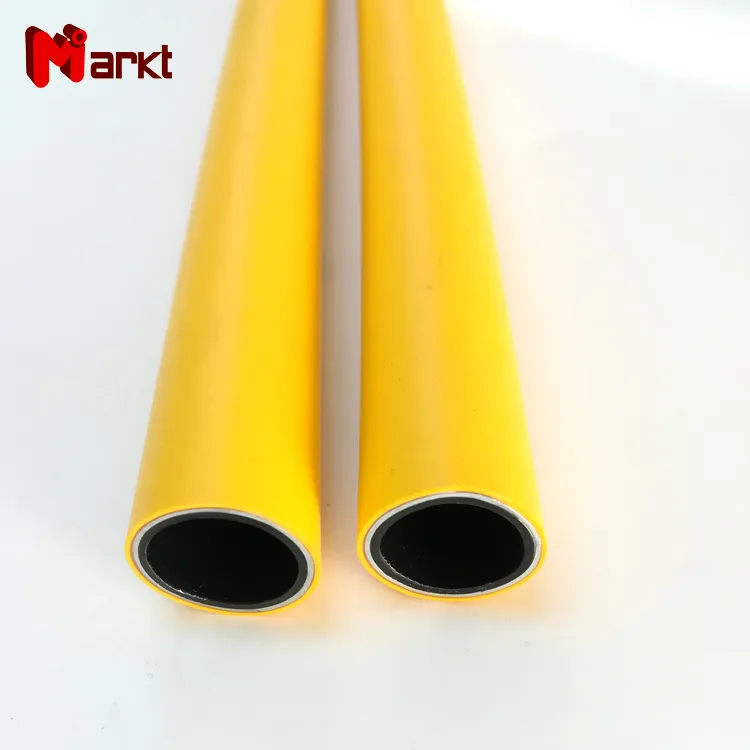

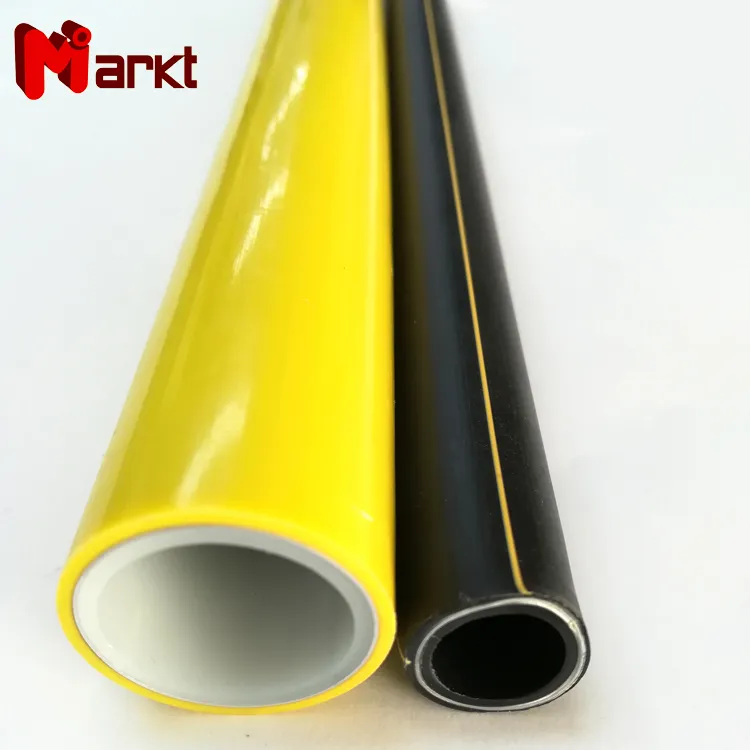

PE Al PE Composite Pipe for Gas and Oil System
PE Al PE Composite Pipe for Gas and Oil System:Description: Mark Aluminum -plastic composite pipe is consists of aluminum sheet with inner and outer layer plastic, tightly bonded with a special adhesive to the aluminum sheet that is welded in overlapping and butt welding way.It have advant......
Send Inquiry
Product Description
PE Al PE Composite Pipe for Gas and Oil System:
Description:

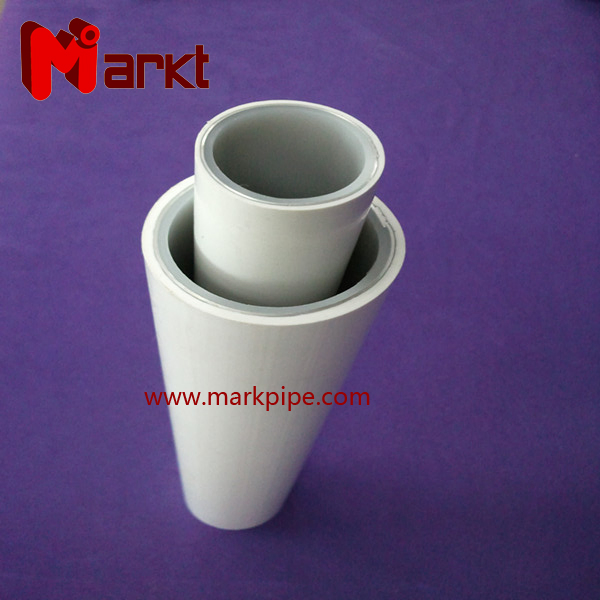

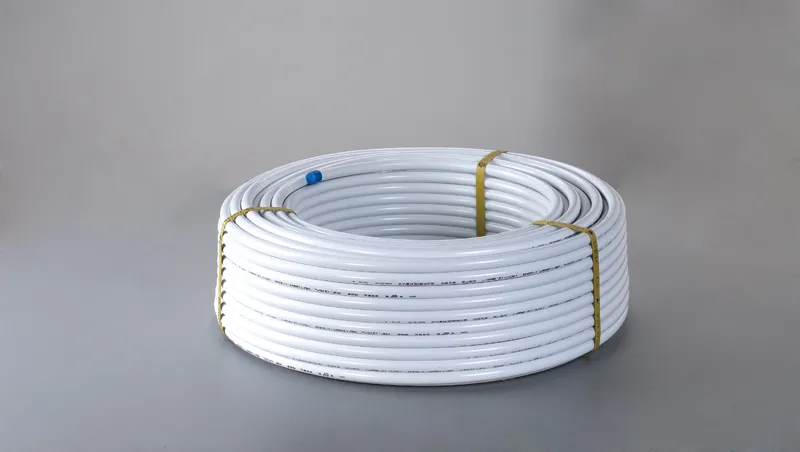

Mark Aluminum -plastic composite pipe is consists of aluminum sheet with inner and outer layer plastic, tightly bonded with a special adhesive to the aluminum sheet that is welded in overlapping and butt welding way.
It have advantage of both metal and plastic pipesit can be used in:
1. Pipes for hot and cold water pipeline system in industry and residential area.
2. Pipes for industry and chemical liquids conveying.
3. Pipes for conveying drinking water.
4. Pipeline for compressed air.
5. Heating system under floor and wall.
Main Characteristics
Thermal conductivity 0.45W/(m. K. )
Coefficient of heat expansion 0.025mm/(m. K)
Bend radius ≥ 5D(D means outside diameter)
Oxygen-permeability 0
Coefficient of heat roughness 0.0004mm
Other Static-free, longevity
Detail goods:
Markt PE-AL-PE pipe type and size:
1,Type ,butt welding and overlapped

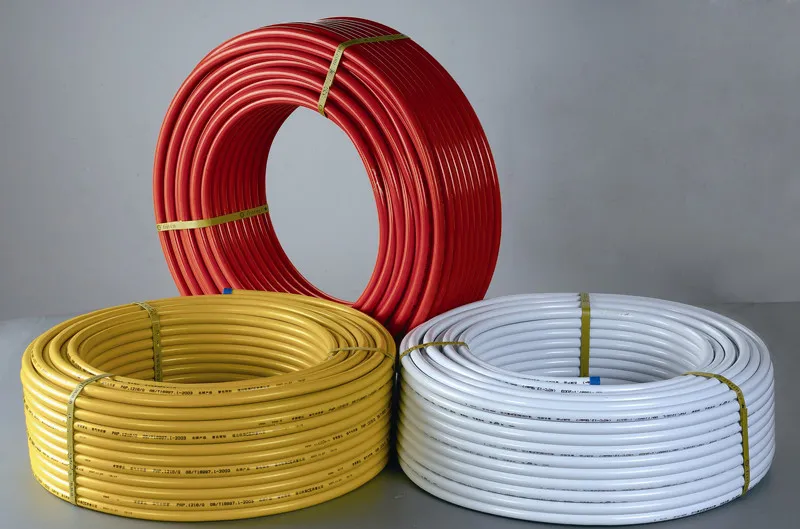

2,Color,white ,yellow ,orange ,blue and black as need
3,Logo:OEM ,NO Logo or cusotmer logo
4,Used for :Water and gas systems
5,Size ,from 16-63mm
6,Supplly both pipe and fittings
Mark other goods :

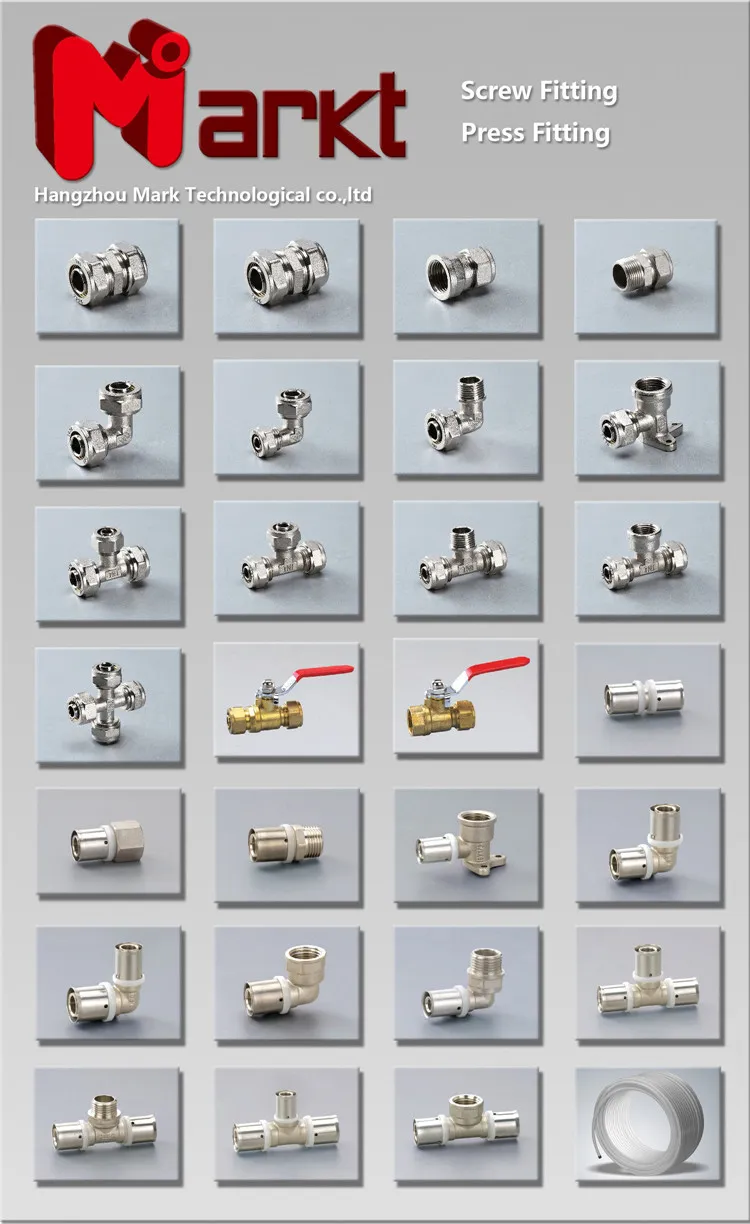

Brass fitting for pex-al-pex pipes:

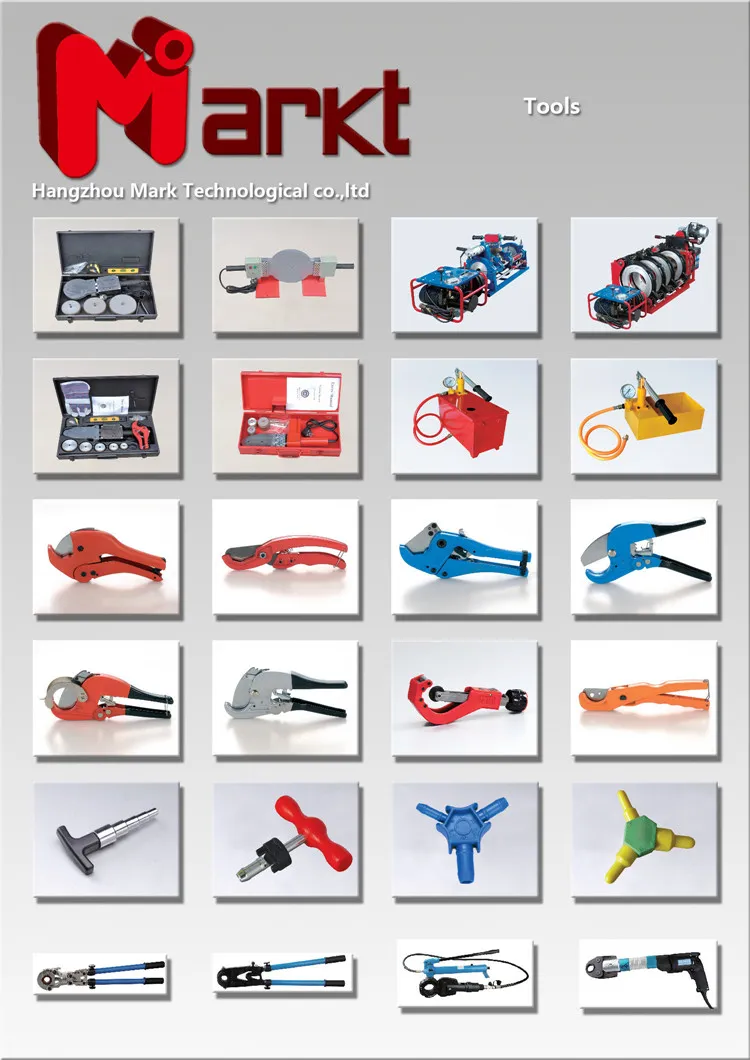

Tools for pex-al-pex pipe and fittings:
Description:
Mark Aluminum -plastic composite pipe is consists of aluminum sheet with inner and outer layer plastic, tightly bonded with a special adhesive to the aluminum sheet that is welded in overlapping and butt welding way.
It have advantage of both metal and plastic pipesit can be used in:
1. Pipes for hot and cold water pipeline system in industry and residential area.
2. Pipes for industry and chemical liquids conveying.
3. Pipes for conveying drinking water.
4. Pipeline for compressed air.
5. Heating system under floor and wall.
Main Characteristics
Thermal conductivity 0.45W/(m. K. )
Coefficient of heat expansion 0.025mm/(m. K)
Bend radius ≥ 5D(D means outside diameter)
Oxygen-permeability 0
Coefficient of heat roughness 0.0004mm
Other Static-free, longevity
Detail goods:
Markt PE-AL-PE pipe type and size:
1,Type ,butt welding and overlapped
2,Color,white ,yellow ,orange ,blue and black as need
3,Logo:OEM ,NO Logo or cusotmer logo
4,Used for :Water and gas systems
5,Size ,from 16-63mm
6,Supplly both pipe and fittings
| ALUMINUNM PLASTIC COMPOSITE PIPE---overlaped PE(PEX)-AL-PE(PEX) | |||||
| Picture | Desc. | Modle No. | Spec. | Wall thickness(mm) | Qty/pack(M) |
 | PE-AL-PE PIPE Cold water (MOLP-01) | MOLP12 | 0912 | 2.0 | 100/200/500 |
| MOLP14 | 1014 | 2.0 | 100/200/500 | ||
| MOLP15 | 1115 | 2.0 | 100/200/500 | ||
| MOLP16 | 1216 | 2.0 | 100/200/500 | ||
| MOLP18 | 1418 | 2.0 | 100/200 | ||
| MOLP20 | 1620 | 2.0 | 100/200 | ||
| MOLP22 | 1722 | 2.5 | 100/200 | ||
| MOLP25 | 2025 | 2.5 | 50/100 | ||
| MOLP26 | 2026 | 3.0 | 50/100 | ||
| MOLP32 | 2632 | 3.0 | 50/100 | ||
| MOLP40 | 3240 | 4.0 | 50/6 | ||
| MOLP50 | 4150 | 4.5 | 50/6 | ||
| MOLP63 | 5163 | 6.0 | 50/6 | ||
| Print:Logo PE-AL-PE water pipe 16*2.0mm 60°C-10bar standard Certificate No. Date 15M | |||||
 | PE-AL-PE PIPE Gas systems (MOGP-01) | MOGP12 | 0912 | 2.0 | 100/200/500 |
| MOGP14 | 1014 | 2.0 | 100/200/500 | ||
| MOGP15 | 1115 | 2.0 | 100/200/500 | ||
| MOGP16 | 1216 | 2.0 | 100/200/500 | ||
| MOGP18 | 1418 | 2.0 | 100/200 | ||
| MOGP20 | 1620 | 2.0 | 100/200 | ||
| MOGP22 | 1722 | 2.5 | 100/200 | ||
| MOGP25 | 2025 | 2.5 | 50/100 | ||
| MOGP26 | 2026 | 3.0 | 50/100 | ||
| MOGP32 | 2632 | 3.0 | 50/100 | ||
| MOGP40 | 3240 | 4.0 | 50/6 | ||
| MOGP50 | 4150 | 4.5 | 50/6 | ||
| MOGP63 | 5163 | 6.0 | 50/6 | ||
| Print:Logo PE-AL-PE gas pipe 16*2.0mm 60°C-10bar standard Certificate No. Date 15M | |||||
 | PEX-AL-PEX PIPE Gas systems (MOGP-02) | MOGP12 | 0912 | 2.0 | 100/200/500 |
| MOGP14 | 1014 | 2.0 | 100/200/500 | ||
| MOGP15 | 1115 | 2.0 | 100/200/500 | ||
| MOGP16 | 1216 | 2.0 | 100/200/500 | ||
| MOGP18 | 1418 | 2.0 | 100/200 | ||
| MOGP20 | 1620 | 2.0 | 100/200 | ||
| MOGP22 | 1722 | 2.5 | 100/200 | ||
| MOGP25 | 2025 | 2.5 | 50/100 | ||
| MOGP26 | 2026 | 3.0 | 50/100 | ||
| MOGP32 | 2632 | 3.0 | 50/100 | ||
| MOGP40 | 3240 | 4.0 | 50/6 | ||
| MOGP50 | 4150 | 4.5 | 50/6 | ||
| MOGP63 | 5163 | 6.0 | 50/6 | ||
| Print: PEX-AL-PE(X) gas pipe 16*2.0mm 95°C10bar Standard Certificate No. Date 20M | |||||
 | PEX-AL-PE(X) Hot water pipe (MORP-01) (MORP-02) | MORP12 | 0912 | 2.0 | 100/200/500 |
| MORP14 | 1014 | 2.0 | 100/200/500 | ||
| MORP15 | 1115 | 2.0 | 100/200/500 | ||
| MORP16 | 1216 | 2.0 | 100/200/500 | ||
| MORP18 | 1418 | 2.0 | 100/200 | ||
| MORP20 | 1620 | 2.0 | 100/200 | ||
| MORP22 | 1722 | 2.5 | 100/200 | ||
| MORP25 | 2025 | 2.5 | 50/100 | ||
| MORP26 | 2026 | 3.0 | 50/100 | ||
| MORP32 | 2632 | 3.0 | 50/100 | ||
| MORP40 | 3240 | 4.0 | 50/6 | ||
| MORP50 | 4150 | 4.5 | 50/6 | ||
| MORP63 | 5163 | 6.0 | 50/6 | ||
| Print: PEX-AL-PE(X) 16*2.0mm 95°C10bar Standard Certificate No. Date 20M | |||||
| ALUMINUNM PLASTIC COMPOSITE PIPE---butt welded PE(PEX)-AL-PE(PEX) | |||||
| Picture | Desc. | Modle No. | Spec. | Wall thickness(mm) | Qty/pack(M) |
 | PE-AL-PE PIPE (MBLP-01) | MBLP14 | 1014 | 2.0 | 100/200/500 |
| MBLP16 | 1216 | 2.0 | 100/200/500 | ||
| MBLP18 | 1418 | 2.0 | 100/200 | ||
| MBLP20 | 1620 | 2.0 | 100/200 | ||
| MBLP25 | 2025 | 2.5 | 50/100 | ||
| MBLP26 | 2026 | 3.0 | 50/100 | ||
| MBLP32 | 2632 | 3.0 | 50/100 | ||
| Print:Logo PE-AL-PE water pipe 16*2.0mm 60°C-10bar Standard Certificate No. Date 30M | |||||
 | PE-AL-PE PIPE (MBGP-01) | MBLG14 | 1014 | 2.0 | 100/200/500 |
| MBLG16 | 1216 | 2.0 | 100/200/500 | ||
| MBLG18 | 1418 | 2.0 | 100/200 | ||
| MBLG20 | 1620 | 2.0 | 100/200 | ||
| MBLG25 | 2025 | 2.5 | 50/100 | ||
| MBLG26 | 2026 | 3.0 | 50/100 | ||
| MBLG32 | 2632 | 3.0 | 50/100 | ||
| Print: PE-AL-PE gas pipe 16*2.0mm 95°C10bar Standard Certificate No. Date 20M | |||||
 | PEX-AL-PE(X) (MBRP-01) (MBRP-02) | MBRP14 | 1014 | 2.0 | 100/200/500 |
| MBRP16 | 1216 | 2.0 | 100/200/500 | ||
| MBRP18 | 1418 | 2.0 | 100/200 | ||
| MBRP20 | 1620 | 2.0 | 100/200 | ||
| MBRP25 | 2025 | 2.5 | 50/100 | ||
| MBRP26 | 2026 | 3.0 | 50/100 | ||
| MBRP32 | 2632 | 3.0 | 50/100 | ||
| Print:Logo PEX-AL-PEX 18*2.0mm 95°C10bar Standard Certificate No. DateM 16M | |||||
 | Gas pipe PE(x)-AL-PE(x) MBGP02 | MBGP14 | 1014 | 2.0 | 100/200/500 |
| MBGP16 | 1216 | 2.0 | 100/200/500 | ||
| MBGP18 | 1418 | 2.0 | 100/200 | ||
| MBGP20 | 1620 | 2.0 | 100/200 | ||
| MBGP25 | 2025 | 2.5 | 50/100 | ||
| MBGP26 | 2026 | 3.0 | 50/100 | ||
| MBGP32 | 2632 | 3.0 | 50/100 | ||
| Print: PEX-AL-PE(X) gas pipe 16*2.0mm 95°C10bar Standard Certificate No. Date 20M | |||||
Brass fitting for pex-al-pex pipes:
Tools for pex-al-pex pipe and fittings:
