Outdoor Furnace Chimney
Product DescriptionProduct NameTwist lock twin wall straight pipe for boilerMaterialSUS304;SUS430 & baColorstainless steel colour, color painted or powder coated, can be customizedStandardEN 1856-1, CertificateCE, passed certificate accords to UL certificateSize5", 6", 7", 8"......
Send Inquiry
Product Description
Product Description
Advantages
1.Without thermal bridge, decrease heat transfer between inner wall and outer wall, keep a better insulation.
2. Spigot part and the chimney body is integrated, increase the strength of connection
Application
Wood fireplaces, pellet fireplaces, stove, boiler, generator, heater chimney

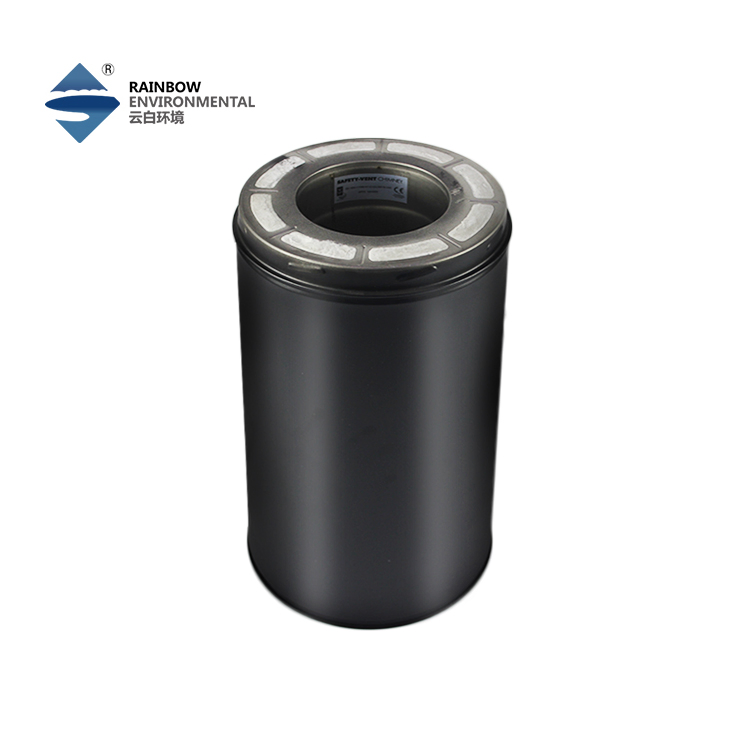

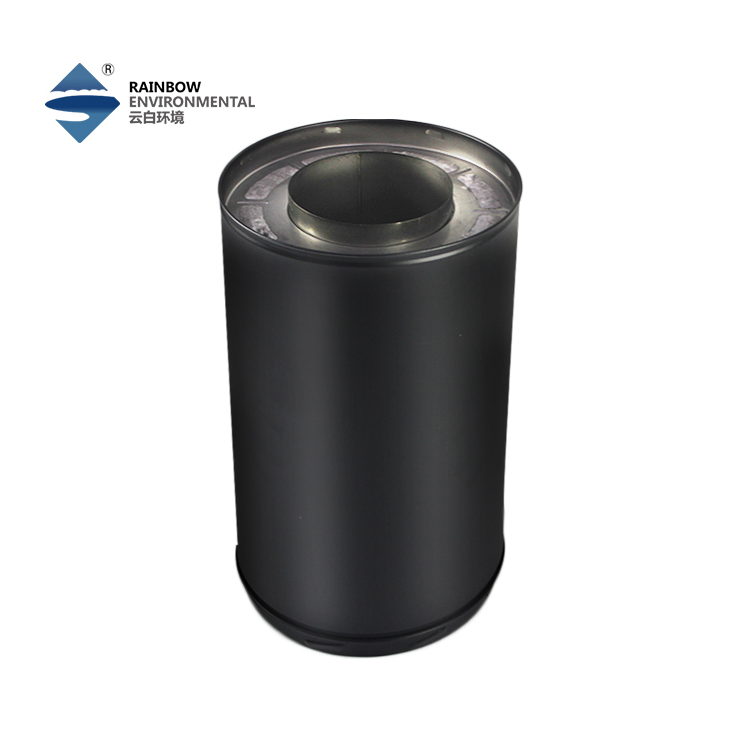

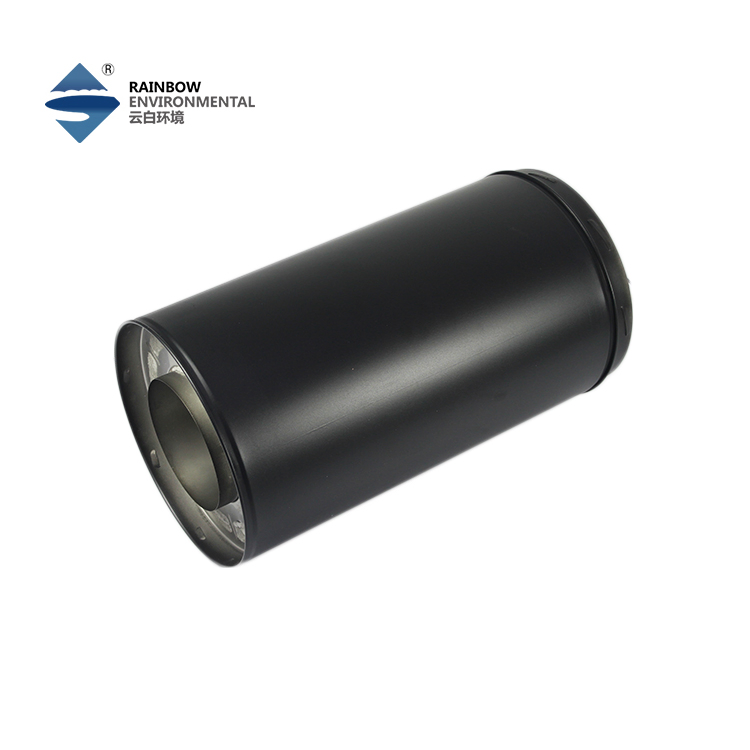

Product Picture

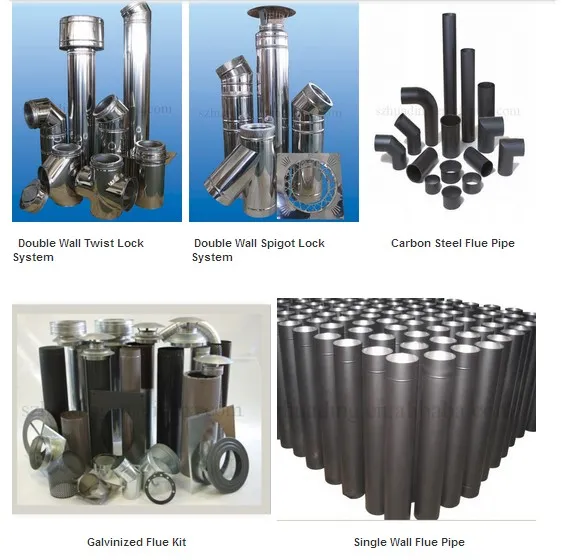

More Products

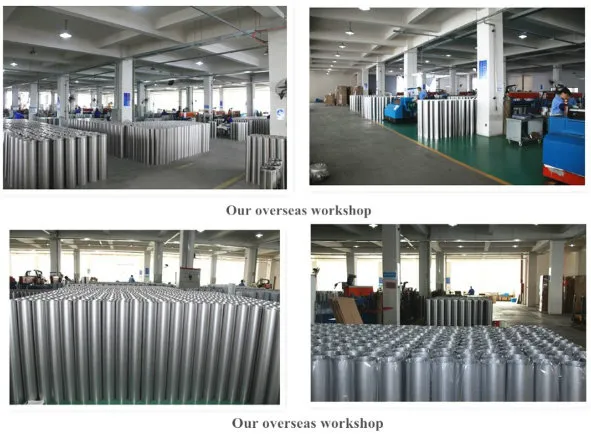

Our Workshop

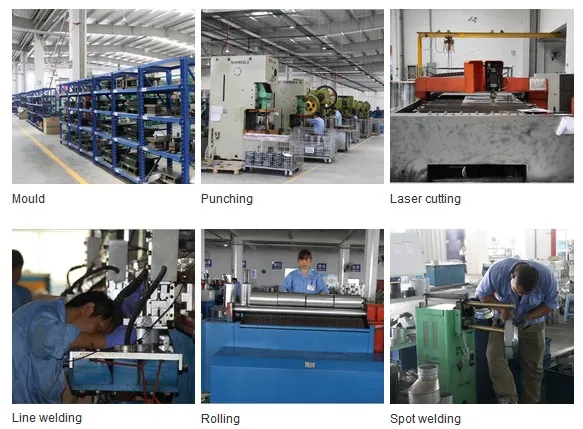

Our Machinery
Our Company
Our Certifications
FAQ
| Product Name | Twist lock twin wall straight pipe for boiler |
| Material | SUS304;SUS430 & ba |
| Color | stainless steel colour, color painted or powder coated, can be customized |
| Standard | EN 1856-1, |
| Certificate | CE, passed certificate accords to UL certificate |
| Size | 5", 6", 7", 8", 10", 12" |
| Thickness | 0.4mm-1.0mm |
| Outer wall hardness | 177HV |
| inner wall hardness | 200HV |
| outer wall Tensile strength | 480MPa/mm2 |
| inner wall Tensile strength | 690MPa/mm2 |
| Insulation material | Cotton insulation-Aluminum silicate |
| Insulation Resistance high temperature | 1, 200 degree |
| Insulation Thickness | 25mm |
| Fiber Diameter | ≥ 0.006 micron |
| Length | 1200mm-120mm |
| Used | Wood fireplaces, pellet fireplaces, stove, boiler, generator, heater chimney,boiler chimney, furnace chimney |
Advantages
1.Without thermal bridge, decrease heat transfer between inner wall and outer wall, keep a better insulation.
2. Spigot part and the chimney body is integrated, increase the strength of connection
Application
Wood fireplaces, pellet fireplaces, stove, boiler, generator, heater chimney
Product Picture
More Products
Our Workshop
Our Machinery
Our Company
Our Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally speaking one container needs 35~40 days for delivery.
Q: What is your terms of payment ?
A: T/T or L/C.
If you have another question, pls feel free to contact us as below:
