How do pipe fittings connect to pipes or other fittings

Pipe fittings connect to pipes or other fittings using various methods, depending on the type of fitting and the material of the pipes. Here are some common methods of connecting pipe fittings to pipes or other fittings:

1. Threaded Connections:

  - Threaded pipe fittings have male or female threads that screw into matching threads on the pipe or other fitting.

  - Teflon tape or pipe dope may be applied to the threads to create a secure seal and prevent leaks.

  - Common thread standards include NPT (National Pipe Thread) and BSP (British Standard Pipe).

2. Welding Connections:

  - Welded pipe fittings are typically used in applications where a permanent and leak-free connection is required.

  - Welding methods include butt welding, socket welding, and fusion welding, depending on the type and material of the fitting and pipe.

  - Common types of welded fittings include butt weld elbows, tees, and reducers.

3. Socket Connections:

  - Socket fittings have a socket or opening that fits over the end of a pipe or another fitting.

  - A solvent cement or adhesive is applied to the joint, which chemically bonds the parts when they are pushed together.

  - Common in plastic and PVC piping systems.

4. Flanged Connections:

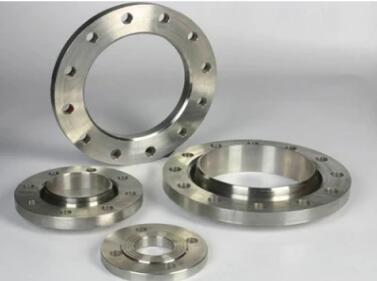

  - Flange fittings have a flat, disc-like flange with holes for bolts. They are used to connect pipes, valves, or other equipment.

  - Gaskets are placed between the flanges to create a sealed connection, and bolts secure the parts together.

  - Flanged connections are common in high-pressure and high-temperature applications.

5. Compression Connections:

  - Compression fittings consist of a nut, a ferrule, and a body. The ferrule is compressed against the pipe by tightening the nut, creating a secure, leak-resistant connection.

  - Commonly used in copper and plastic piping systems, such as for water supply lines.

6. Push-to-Connect Connections:

  - Push-to-connect fittings are used in some modern plumbing systems. They allow pipes to be simply pushed into the fitting, where an O-ring or gripping mechanism holds them in place.

  - These fittings are easy to install and remove without the need for special tools.

7. Grooved Connections:

  - Grooved pipe fittings have grooves on their ends. Couplings or connectors are used to secure the pipes by fitting into the grooves and are then tightened with bolts and nuts.

  - Often used in fire protection, HVAC, and some industrial piping systems.

8. Clamped Connections:

  - Clamped fittings use clamps or bands to secure pipes. The clamps are tightened using bolts or a specialized tool.

  - Commonly used in hygienic and high-purity applications, such as food processing and pharmaceutical industries.

9. Push-Fit Connections:

  - Push-fit fittings are designed to create a secure, watertight connection by simply pushing the pipe or fitting into the connector. They often use rubber o-rings or grippers for sealing.

10. Solder Connections:

   - Soldered or sweated fittings are used with copper pipes. Solder is applied to the joint, and the fitting is heated to create a watertight seal.

The choice of connection method depends on the type of pipe, the material of the pipes and fittings, the application, and the required level of sealing and permanence. Proper installation and adherence to recommended procedures and materials are essential to ensure leak-free and secure connections in a piping system.
