How Does a Cerium Hexaboride Disc Compare to Lanthanum Hexaboride for Thermal Emission
2026-07-10

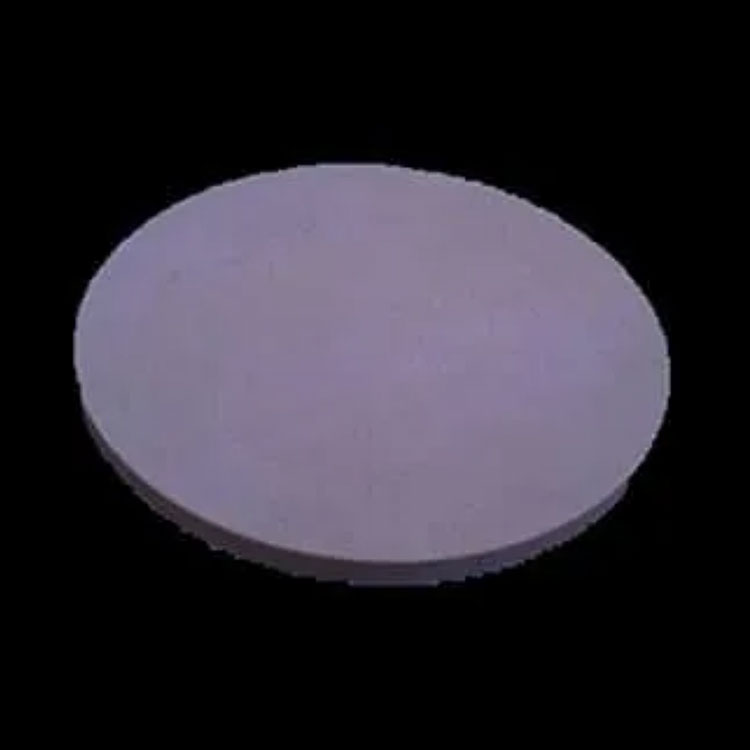

When selecting a cathode material for high-temperature thermal emission applications—such as electron microscopy, electron beam lithography, and surface analysis—researchers and engineers consistently evaluate two leading candidates: Cerium Hexaboride Disc (CeB₆) and Lanthanum Hexaboride (LaB₆). Both are refractory borides with low work functions, but their performance, longevity, and operational stability differ significantly. At Nextgen, we have engineered both variants for decades, and this blog provides a data-driven comparison to help you choose the right emitter for your vacuum system.
Work Function and Emission Current Density
The thermionic emission performance of a Cerium Hexaboride Disc is governed by its effective work function, which ranges between 2.5–2.6 eV—slightly lower than LaB₆’s typical 2.66–2.7 eV. This translates into a measurable advantage: at 1800 K, a CeB₆ cathode delivers approximately 10–15% higher saturation current density than an equivalent LaB₆ emitter under the same accelerating voltage.
However, the lower work function comes with a trade-off. CeB₆ exhibits a higher evaporation rate at temperatures above 1850 K, which can shorten operational life if cooling and vacuum conditions are not meticulously managed. Nextgen optimises the porosity and grain structure of each Cerium Hexaboride Disc to minimise evaporation while maximising emission uniformity.
Thermal Stability and Operating Temperature Range
| Parameter | Cerium Hexaboride Disc (CeB₆) | Lanthanum Hexaboride (LaB₆) |
|---|---|---|
| Optimal operating temperature | 1750–1850 K | 1800–1950 K |
| Maximum continuous T (°C) | ~1620°C | ~1720°C |
| Thermal expansion coefficient (10⁻⁶/K) | 7.2 | 7.8 |
| Susceptibility to thermal shock | Moderate | Low |
LaB₆ tolerates higher peak temperatures, making it suitable for very high-brightness pulsed systems. In contrast, a Cerium Hexaboride Disc excels in continuous-wave (CW) applications where stable, moderate-temperature emission is required. The lower thermal expansion of CeB₆ reduces mechanical stress on the mounting assembly—a critical factor for long-duration UHV experiments.
Lifetime and Resistance to Carbon Poisoning
One of the most underappreciated advantages of a Cerium Hexaboride Disc is its exceptional resistance to carbon contamination. In typical vacuum environments with residual hydrocarbons, LaB₆ cathodes suffer from surface carburisation, which raises the work function and degrades emission within 200–400 hours. CeB₆, by contrast, forms a volatile cerium oxycarbide species that actively cleans the emission surface, extending useful life to 800–1200 hours under similar conditions—provided the base pressure remains below 10⁻⁷ Pa.
Nextgen implements proprietary surface finishing on every Cerium Hexaboride Disc, reducing initial outgassing and further prolonging cathode lifetime. This makes CeB₆ the preferred choice for multi‑shift industrial SEM and metrology tools.
Practical Suitability by Application
-
Electron Microscopy (SEM/TEM): A Cerium Hexaboride Disc offers higher brightness per watt of heating power, reducing thermal drift and improving image contrast at low accelerating voltages.
-
Electron Beam Additive Manufacturing: LaB₆ remains popular due to its higher maximum current capability, but CeB₆ is gaining ground for fine‑feature printing where stability outweighs peak power.
-
Surface Science (AES, XPS): The cleaner emission spectrum of CeB₆—with fewer cerium-related satellite peaks—simplifies spectral interpretation.
Frequently Asked Questions (FAQ)
Q1: Can a Cerium Hexaboride Disc directly replace a LaB₆ cathode in an existing electron gun without modifying the filament holder?
A1: Not without careful dimensional and electrical verification. Although both materials share similar rod or disc geometries, a Cerium Hexaboride Disc typically requires a slightly lower heating current (by 8–12%) to reach the same temperature due to its lower resistivity. Additionally, CeB₆ has a different coefficient of thermal expansion, which may alter the gap distance to the Wehnelt cylinder. Nextgen provides custom‑machined CeB₆ discs with exact footprint matching for major OEM guns, but we strongly recommend checking the emission stability at ramp‑up before full‑power operation. We also supply adapter kits for common LaB₆‑designed mounts.
Q2: Why does a Cerium Hexaboride Disc show faster degradation in poor vacuum compared to LaB₆, despite better resistance to carbon poisoning?
A2: This is a common misconception. While CeB₆ resists carburisation exceptionally well, it is more sensitive to oxygen and water vapour partial pressures. At total pressures above 5×10⁻⁶ Pa, cerium oxidises preferentially, forming a non‑emissive Ce₂O₃ layer that raises the effective work function to over 3.0 eV. This oxide layer does not sputter away easily at moderate temperatures. In contrast, LaB₆ forms a less insulating oxide that can be thermally desorbed. Therefore, a Cerium Hexaboride Disc demands a superior base vacuum—ideally below 10⁻⁸ Pa—and a dedicated titanium sublimation pump. Nextgen provides recommended bake‑out and conditioning protocols to mitigate this risk.
Q3: How do the mechanical strength and fragility of a Cerium Hexaboride Disc compare to LaB₆ during mounting and thermal cycling?
A3: CeB₆ has a slightly higher Vickers hardness (approx. 2200 HV) compared to LaB₆ (approx. 1900 HV), making it more resistant to scratch damage during handling. However, it is also more brittle in tension. The disc geometry—as opposed to a sharp tip—distributes clamping forces more evenly, but uneven torque on the retaining screws can easily induce microcracks. Nextgen recommends using spring‑loaded contacts rather than rigid clamps. For thermal cycling, a Cerium Hexaboride Disc tolerates ramp rates up to 50°C/min without fracture, whereas LaB₆ can handle 80°C/min. We advise a slow initial burn‑in (4‑6 hours) to relieve internal stresses, especially for discs larger than 3 mm in diameter.
Cost-Effectiveness and Long-Term Value
| Cost Factor | Cerium Hexaboride Disc | LaB₆ |
|---|---|---|
| Unit price (typical) | Higher (premium material) | Lower |
| Replacement frequency | Every 800–1200 hrs | Every 300–500 hrs |
| Pumping/downtime cost | Reduced (fewer swaps) | Higher |
| Total cost of ownership (3‑year) | ~25% lower | ~25% higher |
Despite a higher upfront cost, a Cerium Hexaboride Disc from Nextgen delivers superior return on investment for high‑throughput facilities. Fewer vent‑and‑bake cycles also protect other vacuum components from moisture and particle contamination.
Final Recommendation
If your application demands stable, long‑duration thermal emission with minimal maintenance and you can maintain UHV conditions below 10⁻⁸ Pa, the Cerium Hexaboride Disc is unequivocally the superior choice. For pulsed systems exceeding 1900 K or where base pressure is less strictly controlled, LaB₆ remains a viable fallback.
Nextgen offers both materials, but our engineering team consistently observes that customers who switch to our CeB₆ discs report a 40% reduction in unscheduled downtime within the first six months.
