How Is Lamination Metallizable BOPP Base Film Manufactured and What Makes It Metallizable
2026-10-09
Lamination Metallizable BOPP Base Film has become a cornerstone material in flexible packaging, lamination, and metallization processes worldwide. At HUA HENG, we manufacture this specialized film through a tightly controlled multi-stage process that ensures consistent surface quality, thermal stability, and metallization receptivity. Understanding how this film is produced, and what gives it the ability to accept a metallized layer, helps converters and brand owners select the right substrate for high-performance packaging structures.
What Is Lamination Metallizable BOPP Base Film?

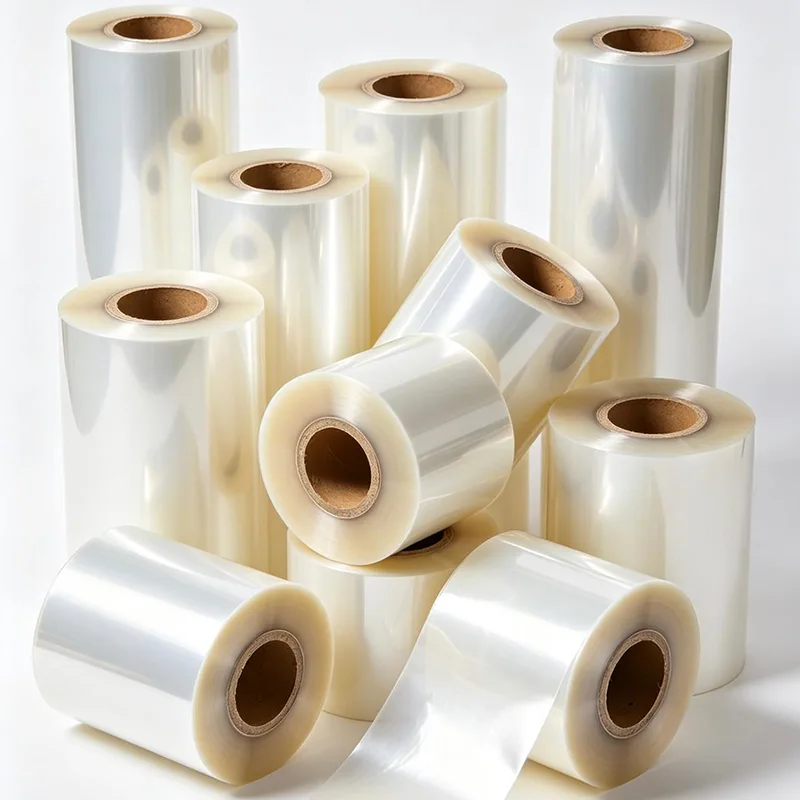

Lamination Metallizable BOPP Base Film is a biaxially oriented polypropylene film engineered with a dedicated skin layer that promotes adhesion during metallization and lamination. Unlike standard BOPP, it is designed with controlled surface energy, slip properties, and optical clarity to support vacuum metallization and subsequent lamination with other substrates.
The Manufacturing Process Step by Step
| Stage | Process | Purpose |
|---|---|---|
| 1 | Resin Selection | High-purity PP homopolymer and copolymer resins are chosen for clarity and strength |
| 2 | Co-extrusion | Core and skin layers are co-extruded to build the metallizable surface |
| 3 | Casting | Molten polymer is cast onto a chill roll for initial web formation |
| 4 | Machine Direction Orientation | Film is stretched longitudinally to align molecular chains |
| 5 | Transverse Direction Orientation | Film is stretched laterally in a tenter frame for balanced strength |
| 6 | Surface Treatment | Corona or flame treatment adjusts surface energy for metallization |
| 7 | Winding and Slitting | Finished rolls are wound and slit to customer specifications |
What Makes It Metallizable?
-
Controlled Surface Energy: A treated skin layer provides the wetting and adhesion needed for aluminum vapor deposition.
-
Low Surface Roughness: Smooth skin layers reduce defects and improve metal gloss and barrier uniformity.
-
Thermal Stability: Balanced orientation allows the film to withstand metallization chamber temperatures without deformation.
-
Clean Surface Chemistry: Minimal slip additives on the metallizable side prevent contamination and poor metal bonding.
-
Consistent Thickness: Uniform gauge ensures even metal deposition and reliable lamination performance.
Why HUA HENG's Lamination Metallizable BOPP Base Film Stands Out
At HUA HENG, every roll of Lamination Metallizable BOPP Base Film is produced under strict quality control. Our film offers:
-
High metal adhesion and excellent bond strength
-
Superior optical clarity and gloss after metallization
-
Consistent coefficient of friction for smooth converting
-
Reliable performance in high-speed lamination lines
-
Customizable thickness and surface properties
Lamination Metallizable BOPP Base Film FAQ
Q: What is the main difference between standard BOPP and Lamination Metallizable BOPP Base Film?
A: Standard BOPP is often designed for printing or general packaging, while Lamination Metallizable BOPP Base Film features a specialized skin layer with controlled surface energy and low roughness, allowing it to accept a metallized layer and bond effectively during lamination.
Q: Can Lamination Metallizable BOPP Base Film be used in food packaging?
A: Yes. Lamination Metallizable BOPP Base Film is widely used in food packaging because it provides excellent moisture and oxygen barrier properties after metallization, and it can be laminated with PE, CPP, or other sealant layers to form compliant, food-safe structures.
Q: How should Lamination Metallizable BOPP Base Film be stored and handled?
A: Lamination Metallizable BOPP Base Film should be stored in a dry, temperature-controlled environment away from direct sunlight. Rolls should remain wrapped until use to protect the treated surface from dust, moisture, and contamination that could reduce metallization quality.
Conclusion
Choosing the right base film directly affects metallization quality, lamination strength, and final package performance. HUA HENG delivers Lamination Metallizable BOPP Base Film with the consistency and technical support that converters trust. For specifications, samples, or custom solutions, contact us today to discuss how HUA HENG can support your next packaging project.
