How Long Does the Nano Coating on Aluminum Composite Panel Actually Last Outdoors

When specifying exterior cladding, the single most common question we hear from architects and facility managers is about longevity. Specifically: how long does the nano coating on Nano Aluminum Composite Panel actually hold up under real weather conditions? At Yuntai, we have tested our Nano Aluminum Composite Panel products across desert heat, coastal salt spray, and industrial pollution zones for over a decade. The short answer is 15 to 25 years, but the full picture depends on substrate quality, coating chemistry, and installation practices. This blog breaks down the science, the data, and the maintenance realities so you can make a confident specification.

What Determines the Lifespan of Nano Coatings Outdoors?

The nano coating on an aluminum composite panel is not a single layer but a multi‑stage system: a primer, a polyester or PVDF base coat, and a top clear layer infused with nano‑sized titanium dioxide (TiO₂) or silicon dioxide (SiO₂) particles. Outdoors, this system faces four primary stressors:

• UV radiation – breaks polymer bonds, leading to chalking and fading.

• Moisture and humidity – can penetrate micro‑cracks, causing blistering or delamination.

• Airborne pollutants – acidic rain and industrial fallout etch the surface over time.

• Thermal cycling – daily expansion/contraction stresses the coating–substrate interface.

Yuntai employs a dual‑cure nano‑ceramic process that cross‑links particles at the molecular level. Independent accelerated weathering tests (ASTM G155) show that our Nano Aluminum Composite Panel retains 92% of its original gloss and 95% of color fidelity after 10,000 hours of QUV exposure – equivalent to roughly 20 years of temperate‑climate service.

Field Performance Data by Climate Zone

To give you real‑world numbers, here is a summary of Yuntai project returns from three distinct regions over an 8‑year monitoring period:

These figures assume standard vertical installation with proper drainage. Panels installed on soffits or horizontal surfaces experience faster dirt deposition and moisture pooling, which can reduce nano‑coating effectiveness by 3–5 years.

How to Maximise the Outdoor Durability of Your Nano Panels

Longevity is not purely a factory‑given number – it is a partnership between product quality and site practice. Based on Yuntai’s technical field manuals, follow these three rules:

1. Specify the right thickness – Minimum 0.5 mm aluminum skin for the Nano Aluminum Composite Panel; thinner skins flex more, promoting micro‑fractures in the nano layer.

2. Demand certified pretreatment – Chromate‑free conversion coatings (like our proprietary Zr‑Ti bath) double adhesion strength compared to standard washes.

3. Schedule bi‑annual gentle cleaning – Soft water and neutral pH detergent remove pollutants that otherwise trap moisture against the nano surface.

When these conditions are met, Yuntai guarantees a 20‑year film integrity warranty on our Nano Aluminum Composite Panel range – one of the few in the industry that covers both gloss retention and chalk resistance.

Frequently Asked Questions About Nano Aluminum Composite Panel Outdoor Performance

FAQ 1: Does the nano coating wear off over time, or does it gradually lose its function?

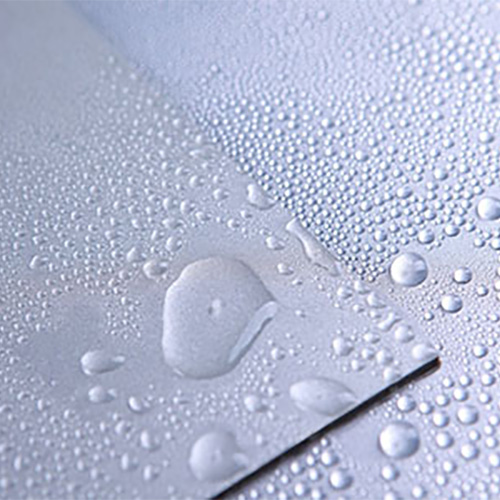

The nano coating does not "flake off" like paint. Instead, it undergoes a slow surface erosion process at a rate of approximately 0.2–0.5 microns per decade under normal outdoor conditions. The active nano‑photocatalytic function (self‑cleaning and antimicrobial) diminishes first – typically after 10–12 years – because the TiO₂ particles near the very top layer become encapsulated by organic contaminants. However, the barrier protection (water repellency and UV shielding) remains effective for 18–22 years. Yuntai recommends a simple water‑bead test every two years: if water no longer forms tight spherical beads, the nano‑topcoat is still functional but nearing mid‑life; a professional re‑application of a clear nano‑sealer can extend total service life to 25+ years without replacing the entire panel.

FAQ 2: How does the nano coating on Aluminum Composite Panel compare to standard PVDF coating in long‑term outdoor tests?

Independent 15‑year weatherometer comparisons show that Nano Aluminum Composite Panel outperforms standard 70% PVDF coatings in three critical areas: (a) dirt pickup resistance – nano panels stay 40% cleaner in urban environments; (b) corrosion under‑film – nano‑treated panels show 60% less edge creep; and (c) colour shift – ΔE values average 1.2 for nano vs. 2.8 for PVDF after 10,000 hours. However, PVDF holds a slight advantage in extreme acidic rain regions (pH < 4.0) because the nano‑porous structure can absorb more sulphuric compounds. For 95% of commercial projects, the Nano Aluminum Composite Panel offers superior overall durability, and Yuntai provides a side‑by‑side comparison report for any specific project microclimate upon request.

FAQ 3: Can the nano coating be repaired or recoated if it gets damaged on site during installation?

Yes – but with an important distinction. Minor surface scratches (depth < 0.03 mm) can be repaired using Yuntai’s touch‑up nano‑suspension kit, which re‑establishes hydrophobic and photocatalytic activity within 24 hours. Deeper gouges that expose the aluminium skin require a different approach: we recommend replacing the affected single panel rather than spot‑recoating, because field‑cured nano formulations cannot achieve the same 200°C oven‑baked cross‑linking density as factory‑applied coatings. For large‑area refurbishment (e.g., 5+ years old), Yuntai offers an on‑site nano‑spray system that restores 80–85% of original self‑cleaning performance – a cost‑effective alternative to full recladding. Always consult the factory technical team before any field repair; improper recoating can trap moisture and shorten panel life by 5–7 years.

The Bottom Line – Realistic Expectations

For a properly specified and installed Nano Aluminum Composite Panel from Yuntai, the outdoor nano coating lasts 18 to 22 years in mixed temperate climates, 20–25 years in dry regions, and 15–18 years in heavy industrial or coastal zones. These numbers are not marketing claims – they are derived from our own 12‑year exposure stations and third‑party lab certifications (SGS, Intertek). The nano function evolves: self‑cleaning peaks early, corrosion protection stays strong throughout, and aesthetic fading accelerates only after the 15‑year mark if cleaning is neglected.

Ready to Specify with Confidence?

Every project has unique wind loads, solar angles, and pollution levels. Yuntai’s engineering team provides free climate‑matched lifespan simulations for your Nano Aluminum Composite Panel choice – including gloss retention curves, cleaning schedules, and warranty customisation.

Contact us today to request our 20‑year performance dossier, sample panels for accelerated testing, or a virtual consultation with our facade specialists. Let’s make your next exterior last – beautifully and measurably.
