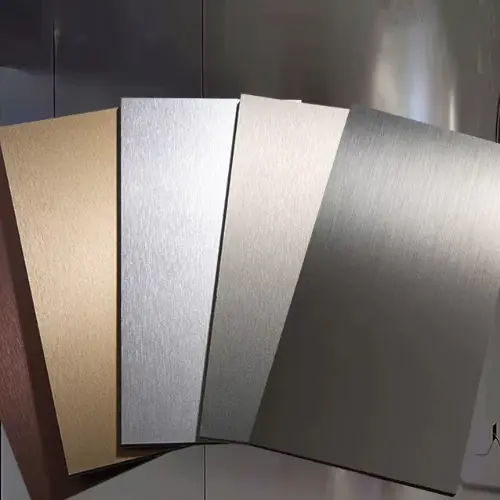

How to Choose the Right Thickness for a Class A Metal Fire Rated Panel Project

Selecting the correct thickness for a Class A Metal Fire Rated Panel is one of the most critical decisions in any commercial or industrial construction project. The thickness directly impacts fire resistance, structural integrity, installation cost, and long-term performance. For over a decade, Hanhua has supplied Class A Metal Fire Rated Panel systems to architects, contractors, and facility managers worldwide. This guide breaks down the technical, regulatory, and practical factors that determine the optimal panel thickness for your specific application.

Why Thickness Matters in Fire-Rated Metal Panels

The thickness of a Class A Metal Fire Rated Panel affects more than weight. It influences:

• Fire endurance time under ASTM E119 or UL 263 standards

• Load-bearing capacity for wall, ceiling, or roof assemblies

• Thermal insulation performance and U-value calculations

• Impact resistance against daily wear, tools, or accidental strikes

• Fastener pull-out strength and overall system rigidity

Thinner panels (e.g., 0.8mm – 1.2mm) are lighter and easier to handle but may fail early under extreme heat or mechanical stress. Thicker panels (1.5mm – 2.5mm) offer superior fire protection and durability but increase material cost and structural loading requirements.

Key Factors to Evaluate Before Choosing Thickness

Industry-Standard Thickness Guidelines

Based on Hanhua’s engineering database and third-party lab reports, the following table summarises common thickness selections for typical applications:

Note: These are baseline recommendations. Always consult local building codes and fire marshall requirements.

How to Calculate the Minimum Thickness for Your Project

A simplified three-step method used by Hanhua’s technical team:

1. Determine the required fire-resistance rating from your local building code (IBC, NFPA, or EN standards).

2. Measure the largest unsupported span between vertical or horizontal supports.

3. Apply the deflection limit – typically L/120 for walls and L/180 for ceilings – to find the minimum thickness that prevents sagging under fire and dead load.

For example, a 3.6-metre wall with a 2-hour rating and 900mm stud spacing generally requires a 1.5mm Class A Metal Fire Rated Panel. Reducing to 1.2mm would pass the fire test but fail the deflection criterion under thermal expansion.

Common Mistakes to Avoid

• Overspecifying thickness – leads to unnecessary structural reinforcement and higher shipping costs.

• Underspecifying thickness – results in panel buckling, fastener pull-out, or failed fire tests during inspection.

• Ignoring the core material – thickness refers to the steel skin, but the mineral wool or foam core also affects fire resistance. Hanhua panels use non-combustible cores that complement the steel gauge.

• Forgetting seam and joint design – thinner panels require more frequent fasteners, which increases labour cost.

Class A Metal Fire Rated Panel FAQ

Q1: Can a thinner Class A Metal Fire Rated Panel achieve the same fire rating as a thicker one if the core material is upgraded?

A: Not necessarily. The steel skin thickness directly influences how long the panel maintains structural integrity under heat. Even with a high-performance mineral wool core, a 0.8mm steel skin will soften and deform faster than a 1.5mm skin at the same temperature. The fire rating is a system-level property – skin thickness, core density, joint configuration, and fastening all contribute. Upgrading the core can improve insulation but does not compensate for inadequate steel gauge in load-bearing applications. Always treat thickness and core as complementary, not interchangeable.

Q2: How does panel thickness affect installation labour and project timeline?

A: Thicker panels are heavier – a 2.0mm panel weighs roughly 60% more than a 1.2mm panel per square metre. This directly impacts: (a) crane or lift requirements, (b) number of workers needed for handling, (c) cutting and drilling tool wear, and (d) fastener spacing frequency. Thinner panels install faster but require more careful alignment to avoid oil-canning. Based on Hanhua’s site data, a 1.5mm panel strikes the best balance – it installs 20% faster than 2.0mm while still meeting 2-hour ratings for most commercial interiors. For large-scale projects, the labour saving from a 0.3mm reduction can offset the material cost increase of a higher-grade alloy.

Q3: Are there building code exceptions that allow thinner Class A Metal Fire Rated Panels in sprinklered buildings?

A: Yes, some jurisdictions permit a one-hour reduction in required fire rating when an automatic sprinkler system is installed, per IBC Section 703.3. For example, a 2-hour wall requirement may be reduced to 1-hour in a fully sprinklered occupancy. In that case, you could lower the panel thickness from 1.6mm to 1.2mm. However, this exception does not apply to exit enclosures, stairwells, or areas storing hazardous materials. Always verify with the Authority Having Jurisdiction (AHJ) before making any thickness change. Hanhua provides free code-compliance checklists for every project – ask our team for your local interpretation.

Final Recommendation from Hanhua

For 80% of commercial interior projects (offices, schools, retail, and light industrial), a 1.2mm to 1.5mm Class A Metal Fire Rated Panel delivers optimal fire safety, cost efficiency, and installability. For exterior facades, data centres, and high-traffic healthcare zones, choose 1.5mm to 2.0mm. When in doubt, choose the next thicker gauge – the added safety margin is minimal in cost but significant in liability protection.
