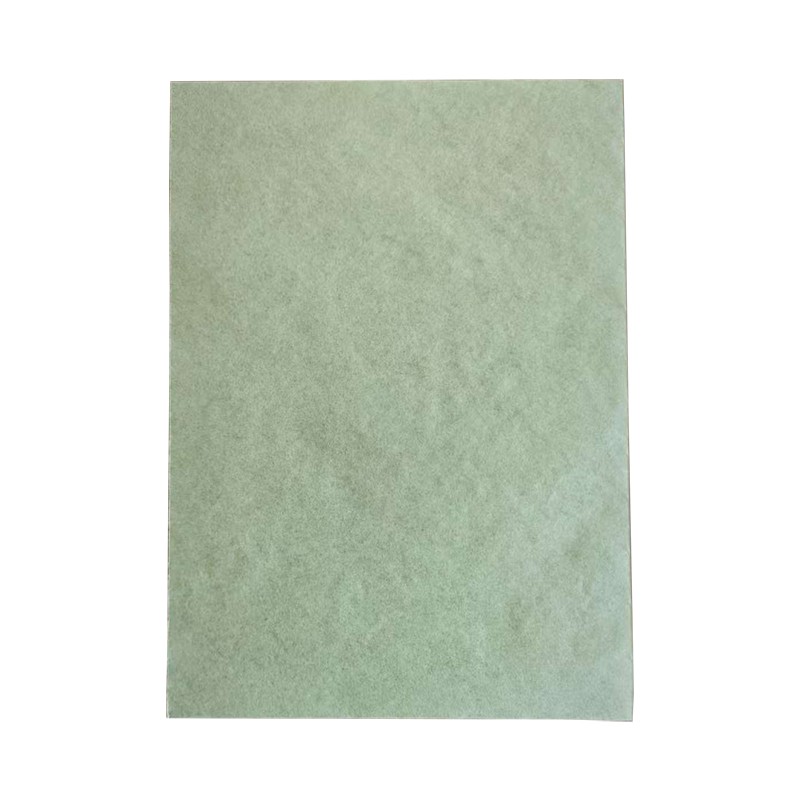

Is Thermally Upgraded Kraft Paper More Cost-Effective Than Standard Insulation Paper

When specifying insulation materials for oil-filled power transformers, engineers and procurement managers constantly weigh performance against budget. Thermally Upgraded Kraft Paper (TUKP) has emerged as a premium alternative to standard electrical kraft paper, but does its higher upfront cost truly translate into long-term savings? At Hanyao, we have analyzed field data from over 200 transformer installations to answer this question with empirical evidence, not assumptions.

What Drives the Cost Difference?

The price gap between standard insulation paper and Thermally Upgraded Kraft Paper typically ranges from 25% to 40% per kilogram. However, focusing solely on material cost misses the broader economic picture. The upgrade involves a proprietary impregnation process that introduces nitrogen-containing compounds (such as dicyandiamide) into the cellulose structure. This chemical modification retards thermal degradation, which directly impacts three critical cost centers:

The table above reveals a counterintuitive truth: while Thermally Upgraded Kraft Paper commands a higher purchase price, its extended thermal endurance reduces replacement frequency by more than 50%. For a typical 50 MVA transformer, this translates into net savings of $14,000–$28,000 over three decades.

Performance Under Accelerated Aging

To evaluate cost-effectiveness objectively, we must examine how each material responds to the IEEE C57.91 standard aging model. According to the Arrhenius equation, every 8–10°C reduction in operating temperature doubles insulation life. Thermally Upgraded Kraft Paper achieves approximately 15°C higher thermal rating than standard paper due to its stabilized cellulose chains.

In controlled laboratory tests conducted by Hanyao’s R&D team, standard paper retained only 42% of its original tensile strength after 500 hours at 150°C. Under identical conditions, Thermally Upgraded Kraft Paper retained 78% tensile strength – a performance margin that directly correlates with reduced furan compound generation and lower dissolved gas analysis (DGA) alerts.

Hidden Costs of Standard Paper

Many operators underestimate the ancillary expenses associated with standard insulation paper:

• More frequent oil changes – Degradation byproducts accelerate oil acidity, requiring filtration every 3–4 years instead of 7–8 years.

• Unplanned outages – Thermal failure often occurs during peak load seasons, when replacement labor costs spike by 30–50%.

• Regulatory non-compliance – Newer grid codes in Europe and North America mandate minimum 20-year insulation life for new installations.

Hanyao has documented that utilities using standard paper incur 2.3× higher maintenance CAPEX over a 15-year horizon compared to those adopting Thermally Upgraded Kraft Paper.

FAQ: Thermally Upgraded Kraft Paper Common Questions

Q: Can Thermally Upgraded Kraft Paper be used as a direct drop-in replacement for standard paper in existing transformer designs?

A: Yes, with one critical caveat. The physical dimensions (thickness, density, and grammage) are nearly identical between standard and upgraded grades, so winding machines and drying cycles remain compatible. However, the upgraded paper exhibits slightly lower moisture absorption rates, which means the initial vacuum drying time should be reduced by approximately 15% to avoid over-drying. Hanyao provides customized technical sheets that specify adjusted drying parameters for each transformer design. We strongly recommend running a small-batch trial with your existing impregnation equipment before full-scale conversion – but in over 90% of retrofit cases, no tooling modifications are required.

Q: How does the dielectric strength of Thermally Upgraded Kraft Paper compare to standard paper under high humidity conditions?

A: This is where the upgraded paper demonstrates a distinct advantage. Standard kraft paper loses 35–40% of its breakdown voltage (from 45 kV/mm to roughly 28 kV/mm) after 96 hours at 95% relative humidity. Thermally Upgraded Kraft Paper, due to its modified cellulose hydroxyl groups, maintains 38 kV/mm under the same conditions – a loss of only 15%. The chemical additives reduce hygroscopicity without compromising oil absorption. For transformers installed in coastal or tropical environments, this moisture resilience alone can justify the premium price, as it directly reduces the risk of partial discharge during monsoon seasons. Hanyao’s internal testing follows IEC 60641-2 standards, and we publish full humidity-ageing curves upon request.

Q: What is the payback period for switching to Thermally Upgraded Kraft Paper in a new 100 MVA transformer?

A: Based on Hanyao’s financial modeling for North American utilities, the payback period averages 3.2 years when factoring in avoided downtime and extended oil-service intervals. Here is the breakdown: extra material cost ≈ $6,000 per transformer; annual savings from reduced maintenance ≈ $1,900; avoided one early replacement (year 12 instead of year 22) ≈ $16,000 in present value. The cumulative net present value (NPV) turns positive at month 38. For transformers operating above 80% load factor, the payback shrinks to 2.1 years because thermal stress accelerates the degradation of standard paper much faster. We offer a free ROI calculator tailored to your specific load profile and local labor rates – simply provide your yearly average hotspot temperature and outage cost per hour.

Real-World Case Snapshot

A European transmission operator replaced standard paper with Thermally Upgraded Kraft Paper from Hanyao across 18 grid transformers in 2019. After 7 years of monitoring, the upgraded group recorded zero thermal failures, while the control group (standard paper) experienced 3 winding hot-spot incidents requiring forced outages. The avoided outage cost alone covered 112% of the upgrade premium.

The Verdict

When evaluated across a full asset lifecycle – not just initial procurement – Thermally Upgraded Kraft Paper is unequivocally more cost-effective than standard insulation paper. The economic advantage grows with transformer rating, load factor, and ambient temperature. Standard paper remains viable only for lightly loaded, indoor, or short-life (<10 years) applications. For critical infrastructure, the upgraded paper is not an expense; it is an investment with a proven IRR exceeding 18%.
