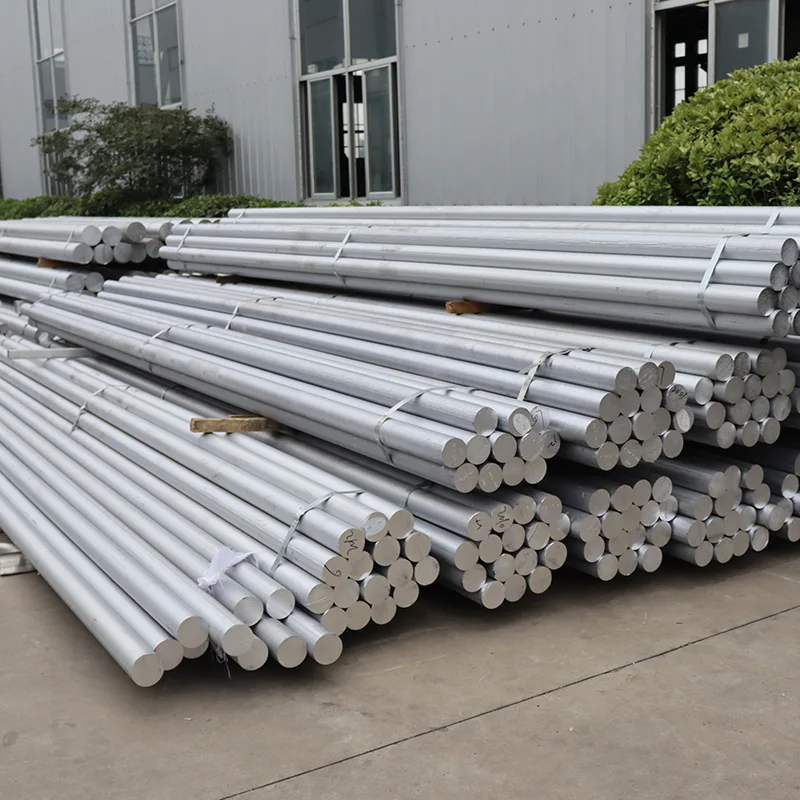

What Is the Maximum Operating Temperature for 5xxx Series Aluminum Alloy Bars

When engineers and procurement specialists evaluate 5xxx Series Aluminum Alloy Bars for high-temperature environments, the first question is rarely about room-temperature tensile strength. Instead, it centers on thermal limits. Unlike heat-treatable 6xxx or 7xxx alloys, the 5xxx Series (primarily Al-Mg system) derives its strength from solid-solution hardening and cold work—not precipitation hardening. This metallurgical distinction fundamentally alters how these materials respond to elevated temperatures. At Perfect, we have tested thousands of 5xxx Series Aluminum Alloy Bars across marine, automotive, and pressure-vessel applications, and the data consistently shows that the maximum continuous operating temperature is 65°C–95°C (150°F–200°F), depending on the specific alloy, temper, and magnesium content. Exceeding this range invites two irreversible degradation mechanisms: sensitization (precipitation of Mg₅Al₈ at grain boundaries) and loss of strain-hardening from recovery and recrystallization.

The Thermal Threshold: By Alloy and Temper

The table below summarizes the practical maximum service temperatures for common 5xxx Series Aluminum Alloy Bars, based on ASTM B221 and internal Perfect qualification data:

Critical note: The "O" temper (annealed) 5xxx Series Aluminum Alloy Bars tolerate slightly higher temperatures because they have no stored cold-work energy to lose—but their baseline strength is already lower.

Why 65°C–95°C? The Science of Sensitization

The magnesium in 5xxx Series Aluminum Alloy Bars (typically 2.5–5.5% Mg) is the hero and the vulnerability. Above 65°C, magnesium atoms begin to diffuse and precipitate as β-phase (Mg₅Al₈) along grain boundaries. This precipitation is:

• Time-dependent – hours at 80°C can start the process; days at 70°C will also trigger it.

• Irreversible – once β-phase forms, even solution heat treatment cannot fully restore the original grain structure.

• Corrosion-enabling – the β-phase is anodic to the aluminum matrix, creating a galvanic path for intergranular corrosion (IGC) and, in chloride environments, stress corrosion cracking (SCC).

At Perfect, our accelerated aging tests on 5083-H116 bars show that after 1,000 hours at 80°C, the yield strength drops by 22%, and the IGC susceptibility (per ASTM G67) increases from < 5 mg/cm² to > 25 mg/cm²—well above the acceptable limit for marine-class materials.

Short-Term vs. Long-Term Exposure

A distinction must be made between peak temperature spikes and continuous service:

• Intermittent exposure (e.g., welding, solar gain, short process upsets): up to 120°C–130°C is tolerable for minutes, provided the material cools below 65°C afterward. However, repeated cycles accumulate sensitization damage.

• Continuous service: Perfect recommends a conservative 70°C ceiling for welded assemblies (because the heat-affected zone is already sensitized) and 85°C for unwelded, cold-worked bars in non-corrosive media.

For cryogenic or sub-zero applications, 5xxx Series Aluminum Alloy Bars excel—their toughness actually increases down to -196°C—but that is a separate discussion.

5xxx Series Aluminum Alloy Bars – FAQ

Q: Can 5xxx Series Aluminum Alloy Bars be used at 150°C if the load is very low?

A: No, not safely. At 150°C, the diffusion rate of magnesium is exponentially higher—β-phase precipitation occurs within hours, not days. Even under zero mechanical load, the grain-boundary precipitation fundamentally alters the microstructure. After cooling, the bar will have lost 40–60% of its original yield strength (depending on temper) and will exhibit severe IGC when exposed to moisture or salt. Perfect has evaluated customer-returned bars that were briefly exposed to 150°C during powder-coating curing; all failed ASTM G67 corrosion tests within 48 hours. For any sustained temperature above 120°C, you must switch to a heat-treatable alloy (e.g., 6061 or 6082).

Q: How does welding affect the maximum operating temperature of 5xxx Series Aluminum Alloy Bars?

A: Welding fundamentally lowers the maximum service temperature because the heat-affected zone (HAZ) already experiences a thermal cycle that partially precipitates β-phase. For a welded 5xxx Series Aluminum Alloy Bar, the maximum continuous operating temperature drops to 55°C–60°C, regardless of the parent temper. This is critical for pressure vessels or pipe supports where weldments are exposed to engine-room heat or solar radiation. At Perfect, we recommend post-weld stress relief only if the bar is in the O temper; for H-tempers, no post-weld heat treatment is effective, and the safest approach is to design the system such that weld zones stay below 55°C. If your application requires welded joints above 60°C, consider using a 5083-O bar with a lower initial strength but better thermal stability in the HAZ.

Q: Is there any way to extend the operating temperature limit of 5xxx Series Aluminum Alloy Bars through coatings or surface treatments?

A: Coatings (anodizing, painting, or cladding) protect against external corrosion but do not raise the intrinsic thermal limit of the base metal. The sensitization and softening occur internally—at the grain-boundary level—regardless of surface condition. However, coatings can indirectly help by reducing corrosion risk if the bar accidentally exceeds the temperature threshold for a short period, because a coated surface delays the ingress of electrolytes that would trigger IGC. That said, at Perfect, we have tested coated 5456-H321 bars at 80°C for 500 hours; while the coating remained intact, the underlying bar still lost 18% of its elongation and showed β-phase under SEM. The only proven method to genuinely increase thermal capacity is to reduce the magnesium content (e.g., switch to 5052 with ~2.5% Mg rather than 5083 with ~4.5% Mg) or choose a different alloy series entirely. For sustained temperatures > 100°C, we consistently advise our clients to migrate to 6xxx Series bars.

Practical Guidelines from Perfect’s Engineering Team

• For continuous service > 70°C: Request Perfect’s stabilized tempers (e.g., H116 or H321) which have controlled magnesium precipitation during manufacturing—they offer ~5–8°C more headroom than standard H32.

• For cyclic thermal loads: Monitor cumulative time above 65°C. Use a simple Arrhenius-based rule: every 10°C above 65°C halves the allowable exposure time before sensitization becomes critical.

• Always specify: "Maximum service temperature" on your purchase order. Perfect provides certified thermal-test reports for each heat lot of 5xxx Series Aluminum Alloy Bars, including IGC susceptibility after accelerated aging.

When to Move to a Different Alloy

If your design requires 100°C+ continuous operation, do not force 5xxx Series Aluminum Alloy Bars into that regime. The cost of premature failure, inspection downtime, and liability far outweighs the material savings. For high-temperature structural applications, Perfect stocks 6061-T6, 6082-T6, and 7075-T73 bars—all of which maintain their strength up to 150°C–180°C due to precipitation-hardening precipitates (Mg₂Si or Al-Zn-Mg-Cu) that are thermodynamically stable at higher temperatures.
