Why Choose an Asphalt Shingle Roof Mounting System for Your Solar Installation?

When it comes to residential solar installations, one of the most common roofing types in North America is asphalt shingles. For homeowners, contractors, and solar companies, ensuring that solar panels are mounted securely and efficiently on this type of roof is critical. This is where an Asphalt Shingle Roof Mounting System comes into play. Designed with precision, durability, and adaptability, these systems provide a reliable foundation for solar projects while maintaining the roof's integrity.

At Weifang Ante Steel Structure Engineering Co., Ltd., we specialize in delivering advanced solar mounting solutions tailored to various roofing conditions, with the asphalt shingle system being one of our most sought-after products.

What Is an Asphalt Shingle Roof Mounting System?

An Asphalt Shingle Roof Mounting System is a specialized racking structure that allows solar panels to be safely installed on residential rooftops covered with asphalt shingles. Unlike tile or metal roofs, asphalt shingles require customized flashing and sealing techniques to prevent leaks and ensure long-term weather resistance.

These systems are engineered to:

• Distribute the load evenly across the roof structure.

• Provide watertight connections to prevent moisture infiltration.

• Enable quick installation without compromising roof integrity.

• Offer compatibility with different solar module sizes.

Key Features and Advantages

• Durability: Made from high-quality aluminum and stainless steel for corrosion resistance.

• Ease of Installation: Pre-assembled components reduce on-site labor.

• Waterproofing: Integrated flashing guarantees protection against leaks.

• Flexibility: Adjustable design allows for various tilt angles and panel orientations.

• Cost-Effective: Reduces both installation time and long-term maintenance costs.

Technical Specifications

Below is a detailed breakdown of the technical parameters for our Asphalt Shingle Roof Mounting System.

Main Components

• Rail System: Extruded aluminum alloy, lightweight yet strong.

• Roof Flashing: Precision-engineered to fit under shingles for complete waterproofing.

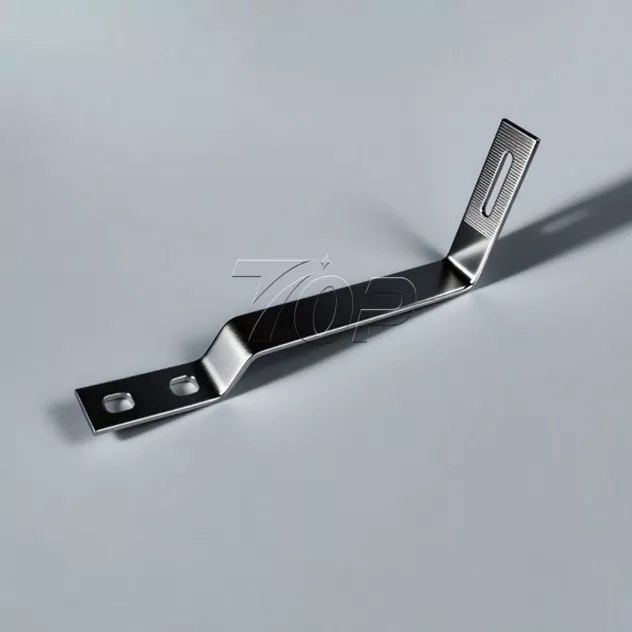

• L-Foot & Hook: Adjustable stainless steel for universal fit.

• Clamps: Universal mid and end clamps for different solar module sizes.

• Fasteners: Stainless steel bolts and nuts for maximum strength.

Specification Table

How Does the Asphalt Shingle Roof Mounting System Work?

The installation process follows a precise yet straightforward method:

1. Roof Preparation: Identify the rafters and determine the placement of flashing.

2. Flashing Installation: Slide the flashing under the shingles to create a watertight barrier.

3. L-Foot Attachment: Secure the L-foot with stainless steel bolts into the rafter.

4. Rail Mounting: Fix the aluminum rails onto the L-foot brackets, aligning for panel placement.

5. Module Installation: Use universal clamps to lock solar modules in either landscape or portrait orientation.

6. Final Sealing: Ensure all penetrations are sealed and flashing is secured tightly under shingles.

Why Is It Important to Use a Professional Mounting System?

Many installers and homeowners underestimate the importance of a reliable mounting solution. Choosing the right Asphalt Shingle Roof Mounting System not only improves solar efficiency but also ensures safety, durability, and long-term roof protection. At Weifang Ante Steel Structure Engineering Co., Ltd., our systems are designed after years of engineering research to meet international standards and withstand harsh environments.

FAQ: Asphalt Shingle Roof Mounting System

Q1: Is the Asphalt Shingle Roof Mounting System compatible with all types of asphalt shingles?
A1: Yes. The system is engineered for universal compatibility with both three-tab shingles and architectural shingles. Its flashing components are designed to slide under various shingle types, ensuring a watertight seal.

Q2: Will installing the system damage my roof or cause leaks?
A2: No, when properly installed, the system is completely leak-proof. The integrated flashing and sealing technology prevent water infiltration. Our mounting solutions undergo rigorous waterproof testing to guarantee roof safety.

Q3: How long does installation usually take?
A3: Depending on roof size and solar capacity, a typical residential installation can be completed within 1–2 days. The pre-assembled design of our system reduces labor time by up to 30% compared with conventional racking.

Q4: What is the lifespan of the Asphalt Shingle Roof Mounting System?
A4: The system is engineered for long-term performance, with a service life of over 25 years. It can withstand extreme weather conditions including high winds and heavy snow loads, making it ideal for diverse climates.

Conclusion

Selecting the right Asphalt Shingle Roof Mounting System is a critical step in any solar installation project. It not only secures the panels but also protects the roof, ensuring maximum energy generation and long-term reliability.

At Weifang Ante Steel Structure Engineering Co., Ltd., we are committed to providing innovative, durable, and cost-effective solar mounting solutions. With a strong focus on product quality and customer satisfaction, our mounting systems are trusted by solar installers worldwide.

For more details or inquiries, please contact us at Weifang Ante Steel Structure Engineering Co., Ltd. and let us support your next solar project with professional-grade solutions.
