Why Do Engineers Prefer EPGC 308 Over Phenolic or Polyester Based Insulation Boards
2026-04-13

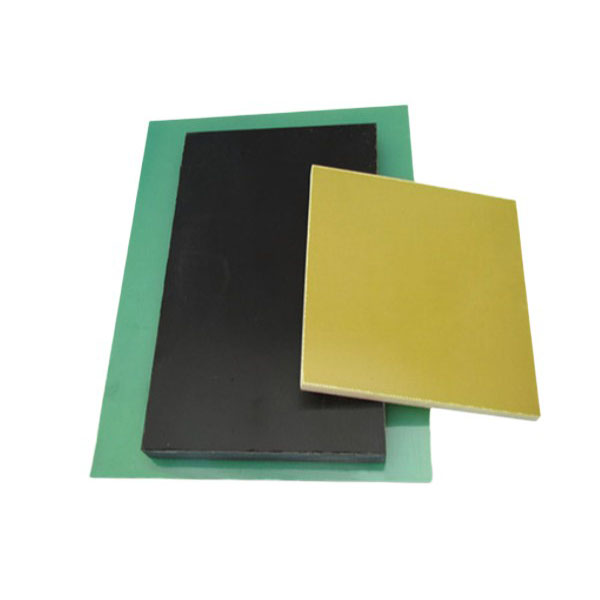

When selecting materials for high-voltage equipment, engineers consistently turn to Electrical Insulation EPGC 308 Epoxy Fiberglass Board due to its superior mechanical strength, thermal stability, and dielectric performance. Unlike phenolic or polyester alternatives, Hanyao offers precision-manufactured EPGC 308 sheets that meet rigorous international standards, making them the trusted choice for switchgear, busbars, and transformer applications.
Key Performance Comparison
The following table highlights why EPGC 308 outperforms phenolic and polyester boards in critical engineering parameters:
| Property | EPGC 308 (Epoxy Glass) | Phenolic Board | Polyester Board |
|---|---|---|---|
| Maximum operating temperature | 155°C (Class F) | 120°C (Class E) | 130°C (Class B) |
| Dielectric strength (kV/mm) | 20–25 | 12–16 | 15–18 |
| Water absorption (%) | <0.2 | 0.5–1.0 | 0.3–0.6 |
| Flexural strength (MPa) | 350–450 | 200–250 | 180–220 |
| Arc resistance (seconds) | 180+ | 120 | 100 |
| Machinability (drilling/cutting) | Excellent | Good | Moderate |
Why Engineers Choose Hanyao’s EPGC 308
Mechanical and Thermal Advantages
Electrical Insulation EPGC 308 Epoxy Fiberglass Board maintains structural integrity under continuous heat up to 155°C, whereas phenolic boards tend to crack and polyester boards soften at elevated temperatures. This makes Hanyao EPGC 308 ideal for compact designs where heat dissipation is limited.
Dielectric Reliability
With a dielectric strength exceeding 20 kV/mm, EPGC 308 provides consistent insulation even in humid environments. Phenolic materials absorb moisture more readily, leading to surface tracking and reduced breakdown voltage. Polyester boards, while moderately resistant, lack the arc resistance needed for high-switching applications.
Chemical and Environmental Resistance
Hanyao EPGC 308 resists oils, mild acids, and solvents far better than phenolic alternatives, which degrade when exposed to transformer oils. Polyester boards are vulnerable to alkaline environments, limiting their use in industrial settings.
Common Questions About EPGC 308 Epoxy Fiberglass Board
What is the maximum continuous operating temperature for EPGC 308 and how does it compare to phenolic and polyester boards?
The maximum continuous operating temperature for Electrical Insulation EPGC 308 Epoxy Fiberglass Board is 155°C (Class F insulation). Phenolic boards are typically rated at 120°C (Class E), and polyester boards at 130°C (Class B). Exceeding these limits causes phenolic to carbonize and polyester to deform, while EPGC 308 retains its mechanical and dielectric properties without significant degradation, making it the preferred choice for high-temperature environments such as dry-type transformers and motor end windings.
Can EPGC 308 be machined into complex shapes without delamination?
Yes, Electrical Insulation EPGC 308 Epoxy Fiberglass Board offers excellent machinability for drilling, milling, punching, and shearing without delamination or edge chipping. This is due to its high-density epoxy resin system and continuous fiberglass reinforcement. In contrast, phenolic boards tend to crack under stress during machining, and polyester boards may exhibit fuzzy edges or poor hole tolerances. Hanyao provides EPGC 308 sheets with tight thickness tolerances, enabling engineers to produce precision components for busbar supports and arc chutes.
How does long-term moisture exposure affect the dielectric strength of EPGC 308 versus phenolic alternatives?
After 24 hours in water at 23°C, Electrical Insulation EPGC 308 Epoxy Fiberglass Board absorbs less than 0.2% moisture, retaining over 95% of its original dielectric strength. Phenolic boards absorb 0.5–1.0% moisture, which can reduce dielectric strength by up to 40%, leading to increased leakage current and risk of flashover. Polyester boards absorb 0.3–0.6% moisture but suffer from reduced surface resistivity. For outdoor or high-humidity applications such as railway traction systems or offshore switchgear, Hanyao EPGC 308 is the reliable standard.
Conclusion
From thermal endurance to arc resistance and moisture stability, EPGC 308 consistently outperforms phenolic and polyester alternatives. Hanyao delivers premium Electrical Insulation EPGC 308 Epoxy Fiberglass Board with certified traceability and consistent batch-to-batch quality, helping engineers reduce failure risks and extend equipment life.
Contact us today to request technical datasheets, free samples, or a quotation tailored to your insulation requirements. Let Hanyao support your next high-reliability project.
