Customized Size Jas -Anz Pine LVL Wood Beam

Product Description

LVL(laminated veneer lumber)is a kind of plywood which is made from peeling or chipping veneer.
After drying and gluing the veneer,we put all of them or most of them together transversely.then
hot press them,if all of the veneers are put transeversely,we call it LVL,if some of them are longitudinal,

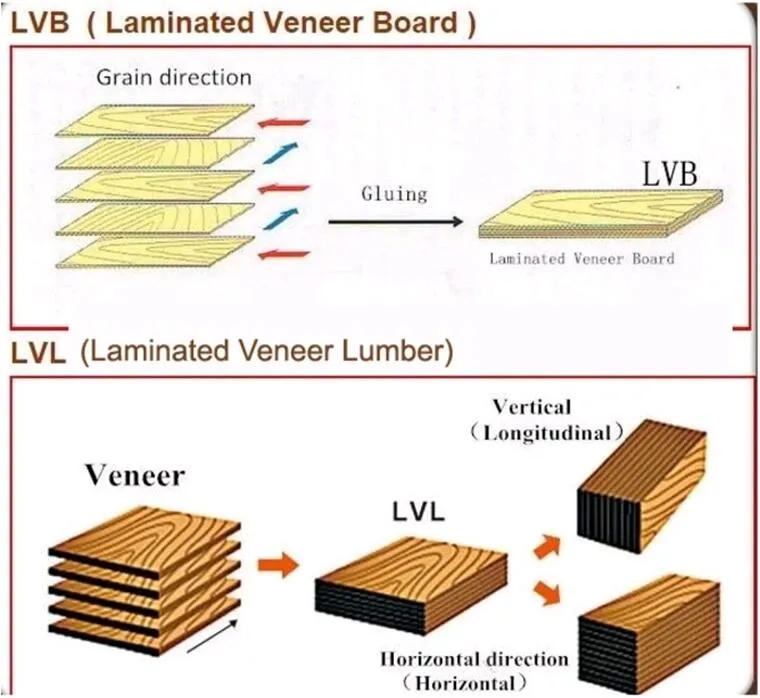

we call it LVB.The below pic will show you clearly for the structure.
Customized Size Jas-Anz Pine LVL Wood Beam

Customized Size Jas-Anz Pine LVL Wood Beam

structural laminated veneer lumber (LVL) which has been manufactured in accordance with AS/NZS 4357
with properties determined in accordance with AS/NZS 4063.2 and therefore complies with the requirements
for structural design in accordance with AS1720.1

structural LVL is manufactured using an 'A' Bond with less than 0.5mg/l Formaldehyde (equivalent to E0)
emissions from the final product.

A full range of LVL sizes from 95 x 45mm right up to 220 x 75mm.
Meets AS/NZS 4357 (Structural LVL)

Produced in industry-standard sizes

Painted 'safety yellow/ red/ blue' for easy identification

Can be used as for concrete formwork support structures such as joists, bearers, walers and soldiers

Also suitable for edge boards in concrete formwork framing projects and boxing for residential slabs

Raw Material	LARCH PINE
Density	720kgs/m3
Finish of Surface	Sanding
Certificate	BenchMark AS/NZS4357 ,JAS-ANZ
Core	Larch
Glue	Phenolic
Thickness	45mm,63mm,63mm,80mm &ETC
Size	*90mm/95mm/120mm/145mm/195mm/220mm/300mm(W) UP TO 6000mm (L)**

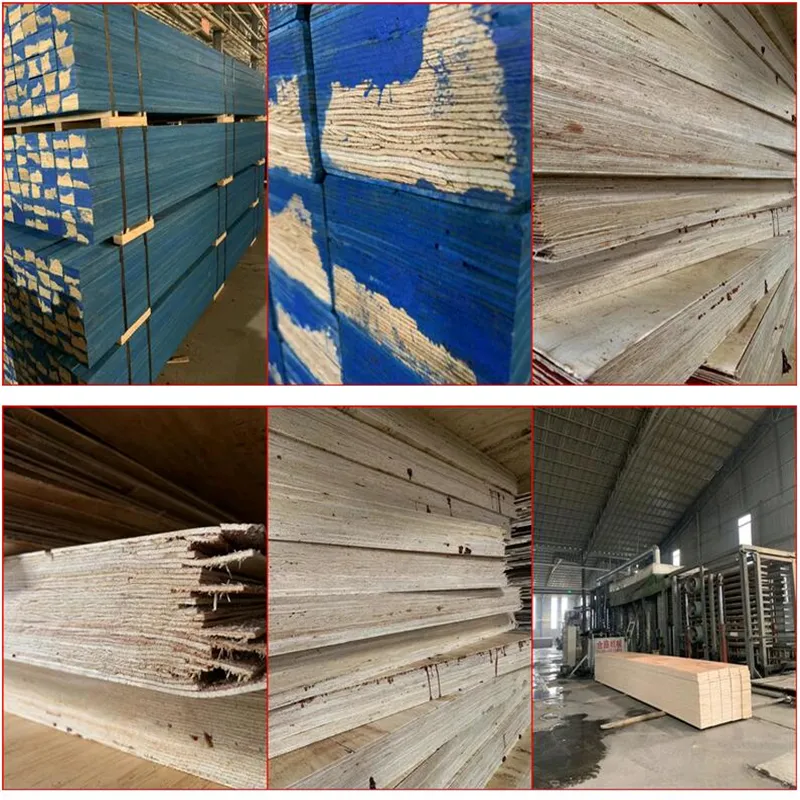

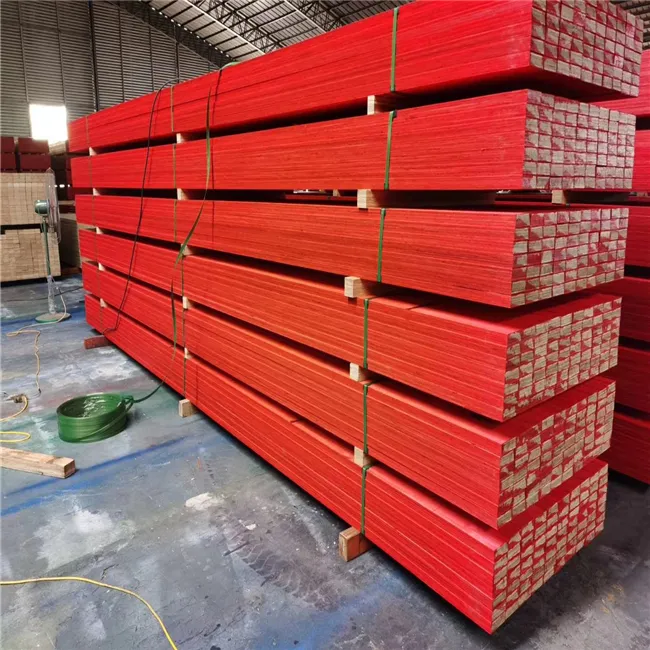

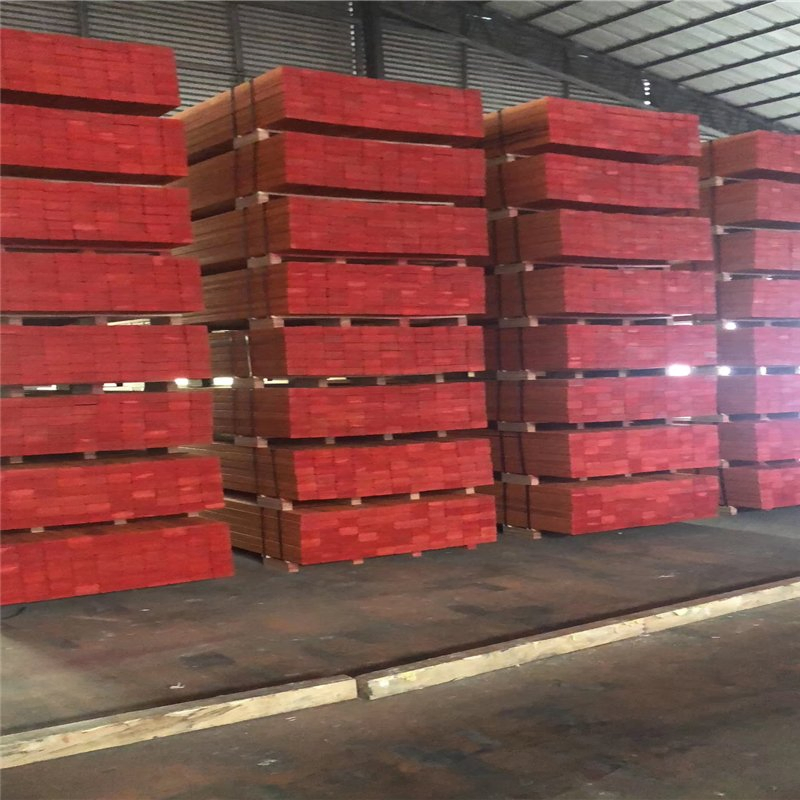

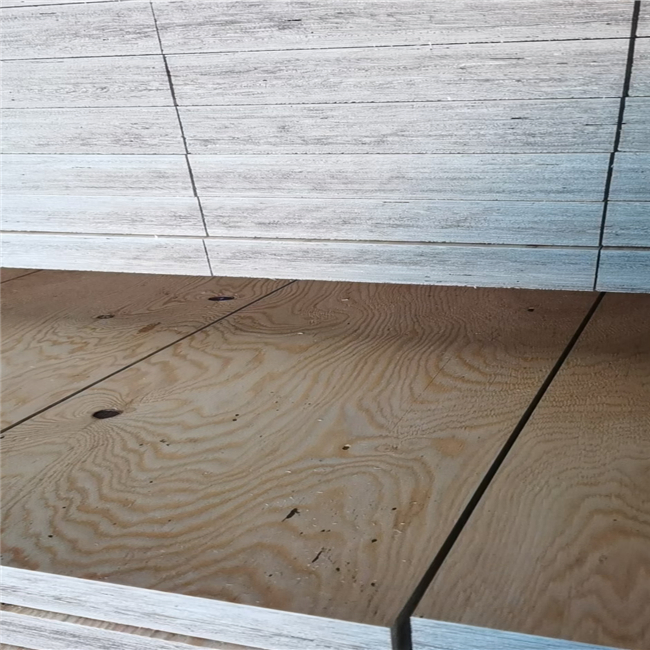

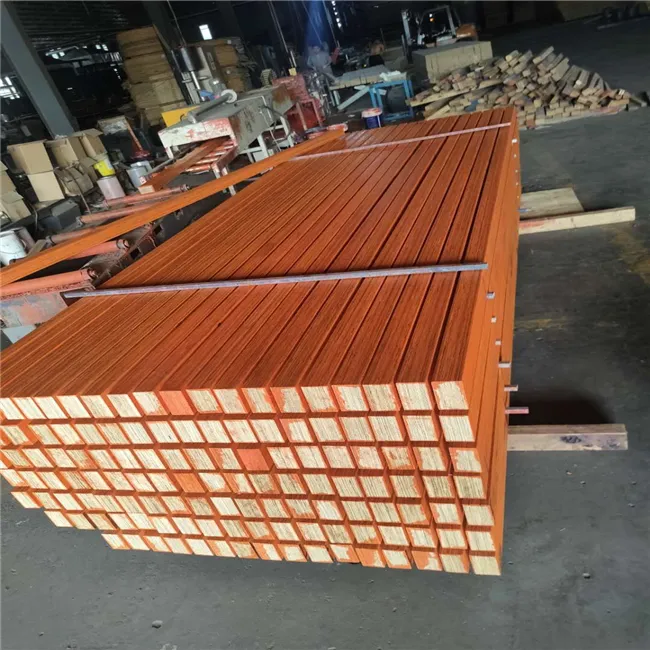

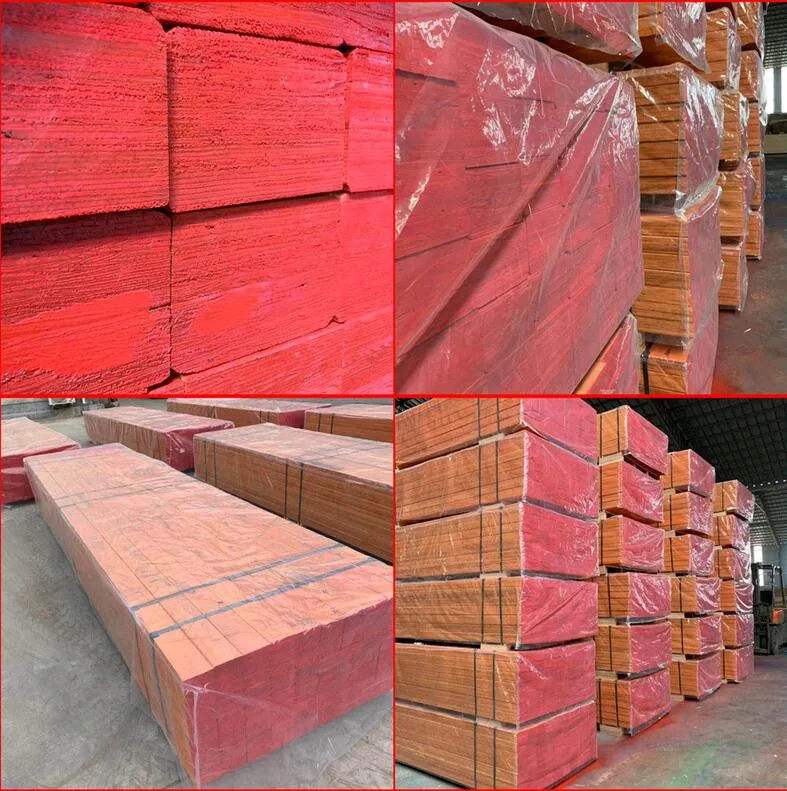

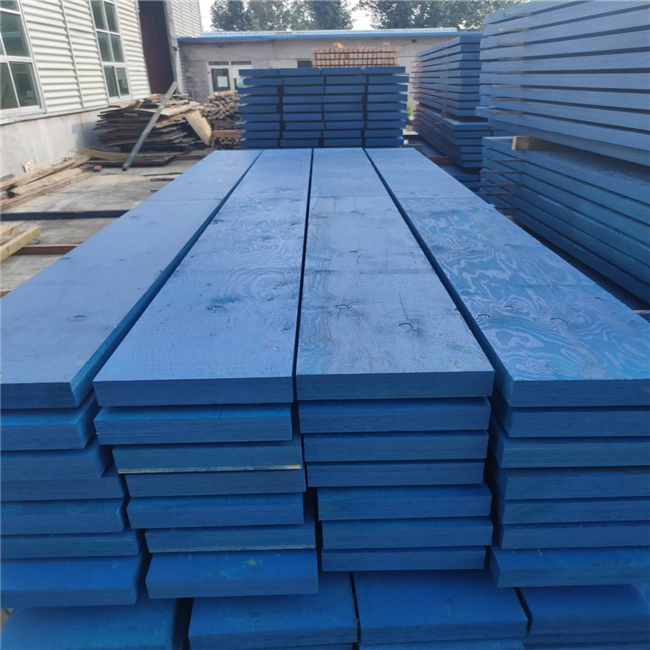

Here are some pictures to help you have a specific view about our LVL Beams:

Customized Size Jas-Anz Pine LVL Wood Beam

If you have inquiry of our plywood, we are willing to give you the best price and satisfy your demand.
Customized Size Jas-Anz Pine LVL Wood Beam

Notice:Above plywood pictures only a part of our products ,it may not be what you need,
and do not worry,you could contact us to get you need,thanks.

Customized Size Jas-Anz Pine LVL Wood Beam

Packaging of commercial plywood.

Inter packing:0.2mm plastic;
Outer packing:bottom is pallets, covered with plastic film,around is carton or plywood, strenghthen by steel or iron 3*6
Or the plywood is packed as the customers' requirement.

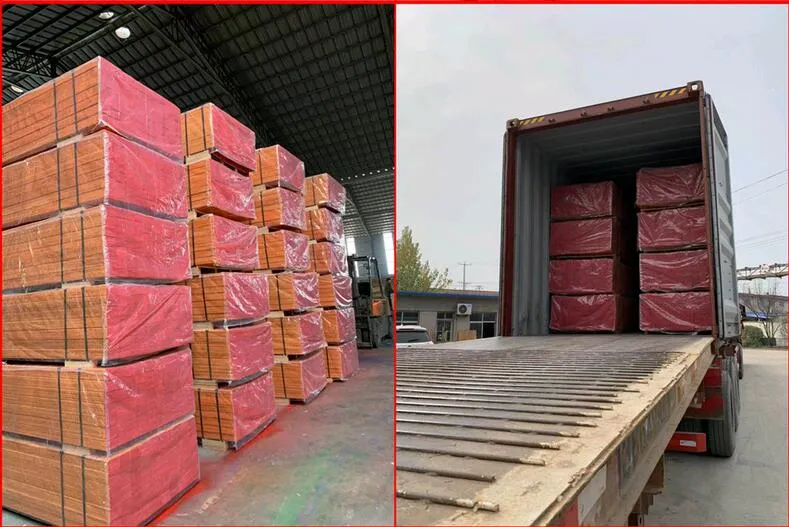

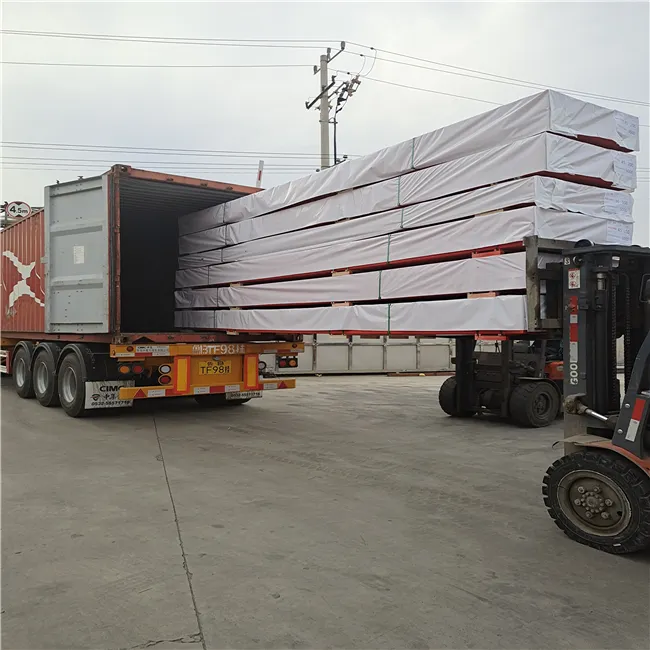

Loaded on container.

All plywoods are packed carefully.
Commercial plywoods are loaded on container to all over the world.
Quantity:
20GP 8pallets/21M3
40GP 16pallets/42M3
40HQ 18pallets/53M3
The quantity may be different because of different size of plywood.
