Aluminum Alloy Extruded Seamless Tubes (5A02/5A03/ 5A05 )

Product Description

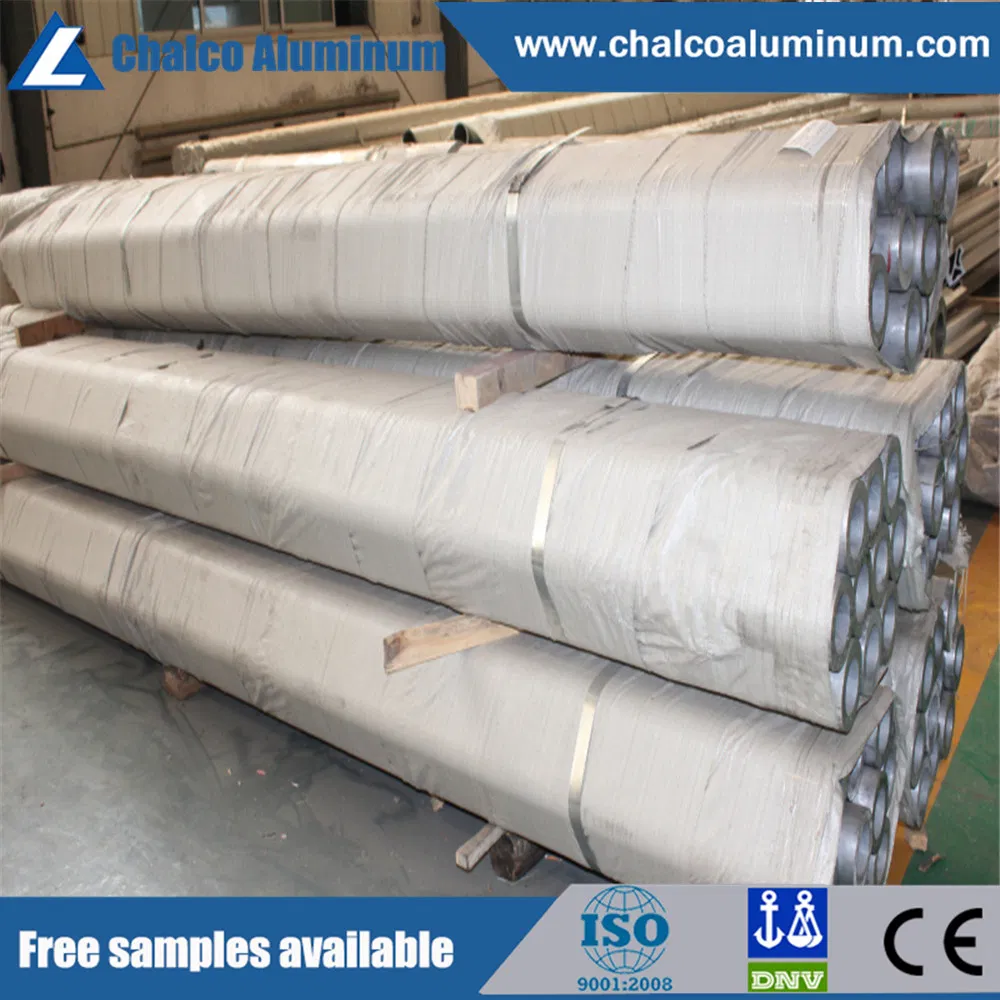

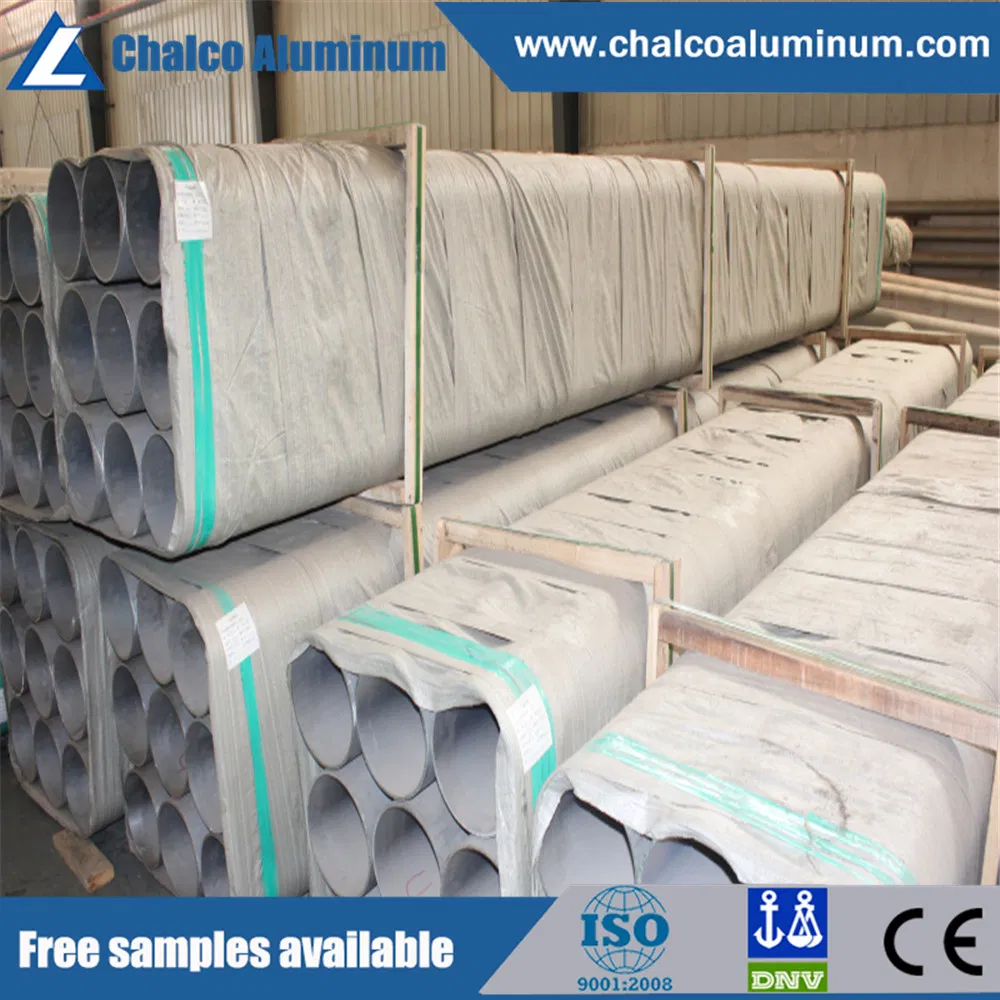

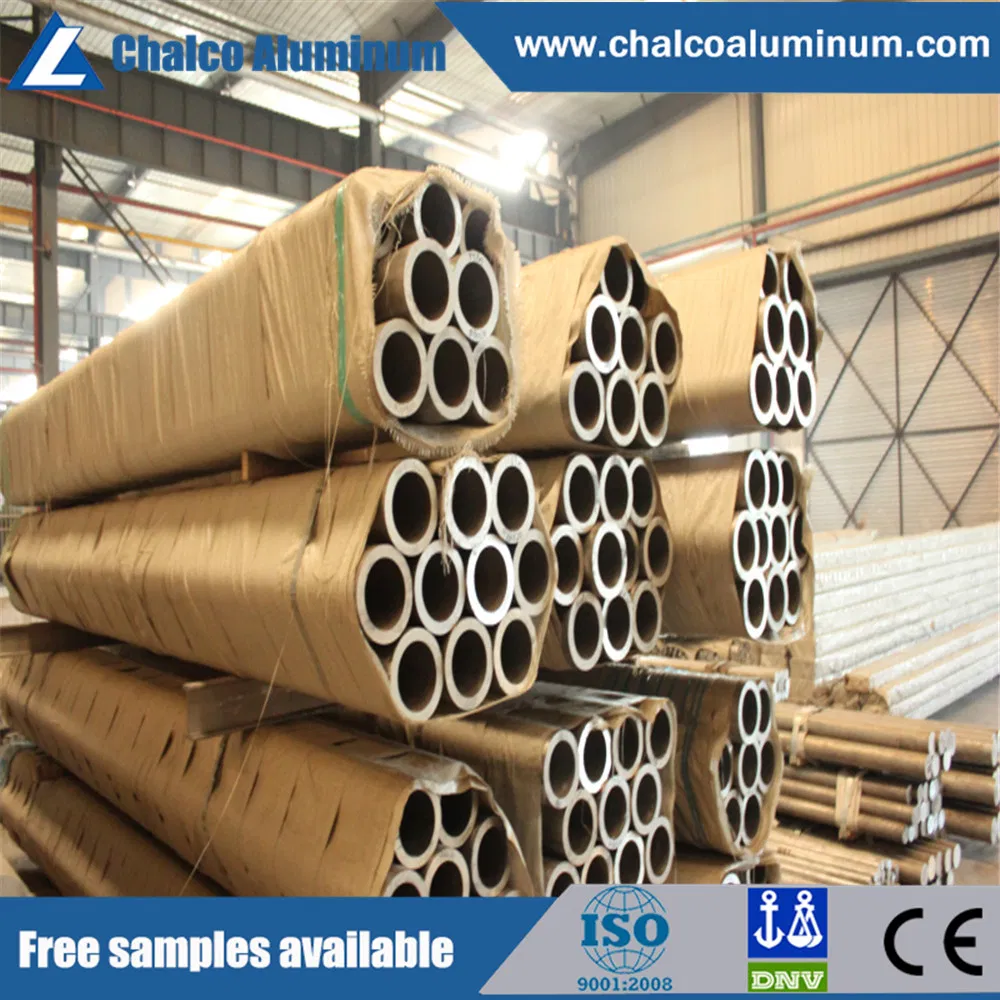

Aluminum Alloy Extruded Seamless Tubes(5A02/5A03/5A05)

5052 5083 5086 5154 5454 5456 aluminum tube pipe has good strength, good corrosion resistance and good machinability in non heat-resistant alloy. The surface of the anodized surface is beautiful. The performance of arc welding is good. The main alloy element of the 5052 5083 5086 5154 5454 5456 aluminum tube pipe is magnesium, which has good corrosion resistance and weldability, and medium strength. Excellent corrosion resistance makes 5052 5083 5086 5154 5454 5456 aluminum tube pipe widely used in marine applications such as ships, as well as cars, aircraft welding parts, subway light rail, and strict fire resistant pressure vessels (such as liquid tank car, refrigerator car, refrigerated container), refrigeration equipment, TV Tower, drilling equipment, transportation equipment, missile parts, armor and so on.

5052 5083 5086 5154 5454 5456 aluminum tube pipe are the most common aluminum pipe materials, most of the 5 series pipe is seamless pipe, of course, part of the 5052 used for marine ships and so on.

Specification:
Alloy: 5052 5083 5086 5154 5454 5456
Temper: O,H112,H111,F
OD: 3--130mm
ID: 3--100mm
Length: 1000mm--6000mm

Chemical Composition
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ga	V	Ti	Other	Min.Al
5052	0.25	0.40	0.10	0.10	2.2-2.8	0.15-0.35	-	0.10	-	-	-	0.15	Remainder
5083	0.40	0.40	0.10	0.40-0.10	4.0-4.9	0.05-0.25	-	0.25	-	-	0.15	0.15	Remainder
5086	0.40	0.50	0.10	0.20-0.7	3.5-4.5	0.05-0.25	-	0.25	-	-	0.15	0.15	Remainder
5154	0.50	0.50	0.10	0.50	3.1-3.9	0.25	-	0.20	-	-	0.20	0.15	Remainder
5454	0.25	0.40	0.10	0.50-1.0	2.4-3.0	0.05-0.20	-	0.25	-	-	0.20	0.15	Remainder
5456	0.25	0.40	0.10	0.50-1.0	4.7-5.5	0.05-0.20	-	0.25	-	-	0.20	0.15	Remainder

Physical Property
Alloy	Temper	Wall thickness /mm	Room temperature Test Result
			Tension Strength/MPa	Yield Strength/MPa	Elongation/%
			Tension Strength/MPa	Yield Strength/MPa	A_50mm	A
			Not less than
5052	O	All	170 ~240	70	15	17
	H112	All	170	70	13	15
	F	All	-	-	-	-
5083	O	All	270~350	110	14	12
	H111	All	275	165	12	10
	H112	All	270	110	12	10
	F	All	-	-	-	-
5154	O	All	205~285	75	-	-
5154	H112	All	205	75	-	-
5454	O	All	215~285	85	14	12
	H111	All	230	130	12	10
	H112	All	215	85	12	10
5456	O	All	285~365	130	14	12
	H111	All	290	180	12	10
	H112	All	285	130	12	10
5086	O	All	240~315	95	14	12
	H111	All	250	145	12	10
	H112	All	240	95	12	10
	F	All	-	-	-	-
