Product Description

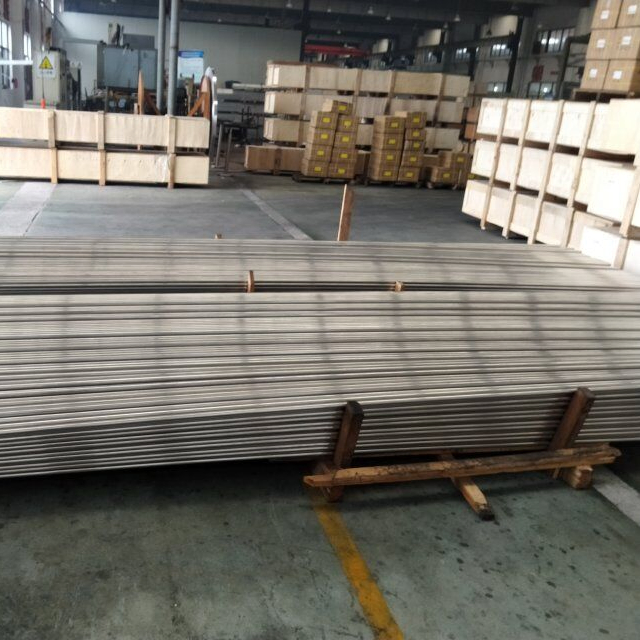

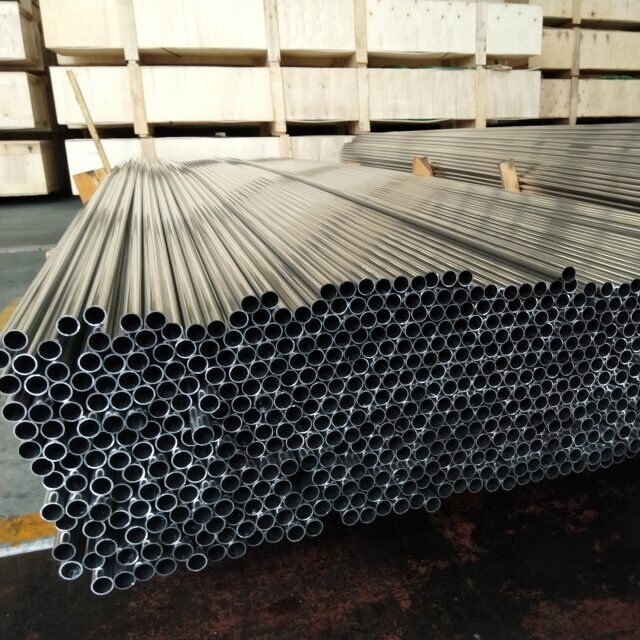

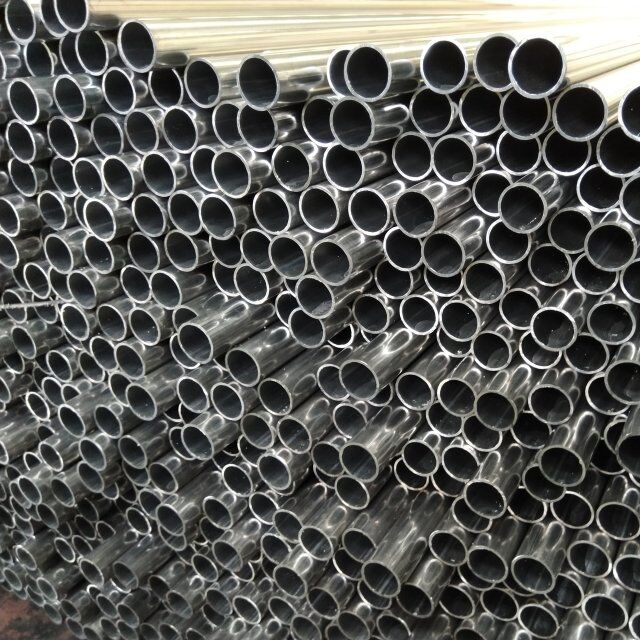

Aluminum Inner Grooved Copper Tube is made of 3003/3103 al-alloy materials through extrusion and drawing that determine its better ductility.And the tooth height from 0.05mm to 0.20mm contributes to its heat conduction performance which is necessary in air-conditioners' heat exchange system.It must be a wise choice for air conditioner factories because of its lowest cost.

Parameter for aluminum inner groove tube

Specification	bottom wall thickness	Tooth height	Tooth number	Helix Angle	Rib-top Angle	g/m
φ7mm	0.4-0.5	0.05-0.18	40-50	18°	50°	28+/-3
φ9.52mm	0.45-0.55	0.05-0.18	45-55	18°	50°	45+/-3
φ7.94mm	0.4-0.5	0.05-0.18	40-50	18°	50°	40+/-3

The parameters in above form can also be adjusted as per customer's request.
Tensile:120MPa min
elongation:35% min
expanding:40% min
density:2.7

Application:Air-conditioner heat exchanger system
Production time:25-30days
Packing:wooden case

Product feature:
Light-weight
Good thermal conductivity properties and electrical conductivity
Good corrosion resistance
Good forming and bending properties
ROHS compliant
High recycling value
Small deviation range
High surface quality
