Product Description

COMPANY PROFILE

1.SGS and BV Audited company.
2.Industry experience over 10 years.
3.Management Systems-Internal Software
4.Finished Product Inventory-More Than 500 Tons.
5.Raw Material inventory -Over 800 Mertic Tons.
6.Shipment of goods -More than 30 countries worldwide.
7.We have the most convenient transport and prompt delivery.
8.We offer competitive price with best service.
9.We have high technical production line with top quality products.
10.We have win high reputation based on best quality products.

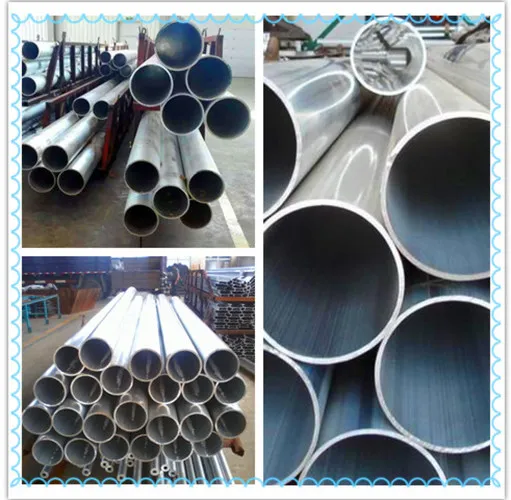

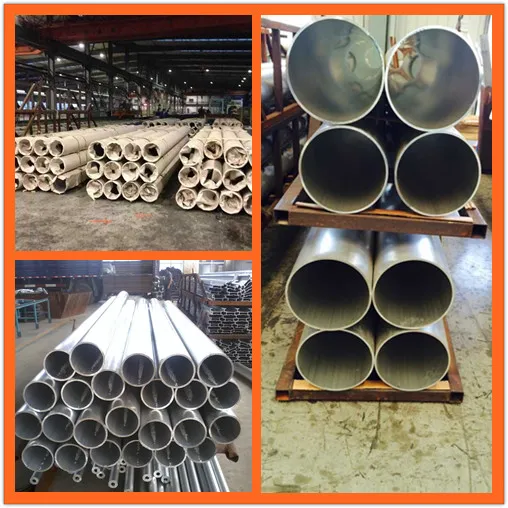

Specifications for industrial Aluminum tube/pipe :
1) Products:Round pipe,square pipe,flat pipe,special designed pipe
2) Standard :ASTM B209-04,B210M-05,B234M-04,B241-02,B221M-05a, AISI, SUS, EN573-3-2003, JISH4000-2006,H4080-2006,H4040-2006, DIN, GB/T3190-2008,3880.1-2006,6893-2000,3191-1998,4437.1-2000, ASME,ISO3522-1984ISO ASTM GB1A80,1070A,1100,2A01,2014A,1017A,5050,5154A,5083,6161,7A01,7A52,7075,
3)Grade:1000series:1435,1050,1060,1070,1080,1100,etc
        2000series:2011,2014,2017,2024,etc
        3000series:3002,3003,3104,3204,3030,etc
        5000series:5005,5025,5052,5040,5056,5083,etc
        6000series:6101,6003,6061,6063,6020,6201,6262,6082,etc
        7000series:7003,7005,7050,7075,etc
3) WT:0.3mm above
4) OD: up to 600mm
5) Length: per customer's request
6) Process: heat extrusion, welding, seamless

Alloy	Si	Mg	Fe	Cu	Mn	Zn	Cr	Ti
1050	0.25	0.05	<0.40	<0.05	<0.05	<0.05	-	<0.03
3003	0.6	-	0.7	0.05 -0.20	1.0-1.5	0.10	-	-
5052	0.25	2.2-2.8	0.4	0.1	0.1	0.10	0.15-0.35	-
5083	0.4	4.0-4.9	0.4	0.1	0.4-1.0	0.25	0.05-0.25	0.15
6005	0.6-0.9	0.4-0.6	<0.35	<0.1	<0.1	<0.1	<0.1	<0.1
6061	0.4-0.8	0.8-1.2	<0.70	0.15-0.4	<0.15	<0.25	0.04-0.35	<0.05
6063	0.2-0.6	0.45-0.9	<0.35	<0.1	<0.1	<0.1	<0.1	<0.1
6082	0.7-1.3	0.6-1.2	<0.50	<0.1	0.4-1.0	<0.2	<0.25	<0.10

Process of industrial Aluminum Tube

Processing: hot extrusion, whole punching seamless, cold drawn etc.

Features of industrial Aluminum Tube

The relative products: Aluminum Alloy Tube, Aluminum Tube Coil, Seamless Stainless Steel Pipe, Aluminium flat tube.

Square industrial aluminium tube

1. Tolerance of frame thickness: +/-0.1-0.25mm.
2. Alloy & temper: Grade 6000 Series, T4-T6
3. Thickness: 1.0mm or according to customer's requirements.
4. Max. Length: 6.0m, export length for 20" Container: 5.8m.

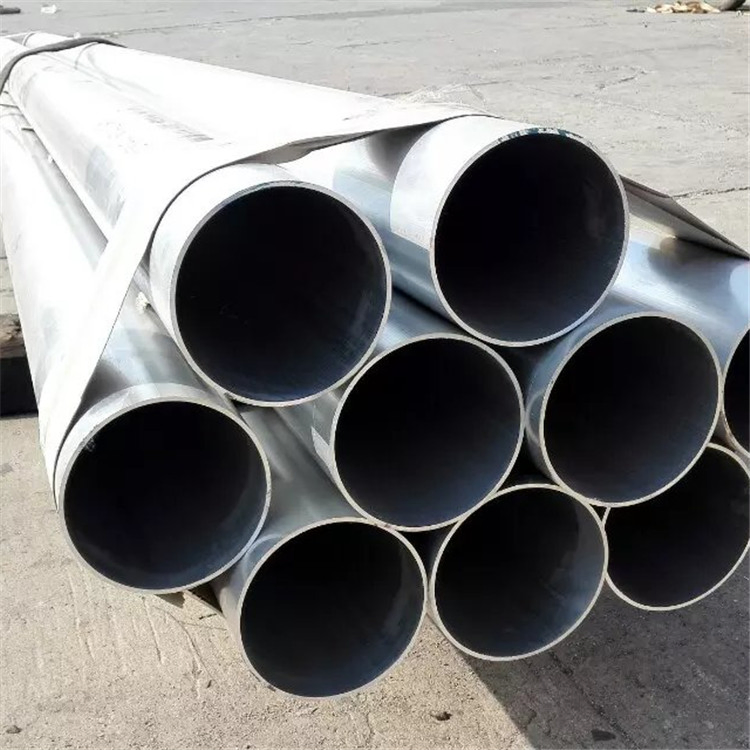

Round industrial aluminium tube
1. Tolerance of frame thickness: +/-0.1~0.25mm.
2. Alloy & temper: 6063-T5, Grade 6000 Series.
3. Thickness: 1.0mm , according to customer's requirements.
4. Diameter: 2.5mm or according to customer's requirements.
5. Max. Length: 6.0m, export length for 20" Container: 5.8m.

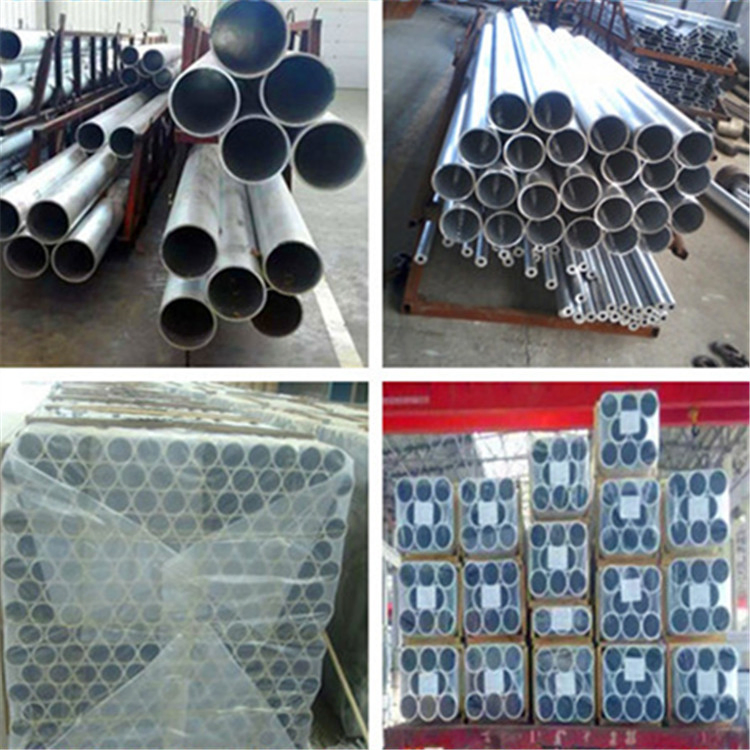

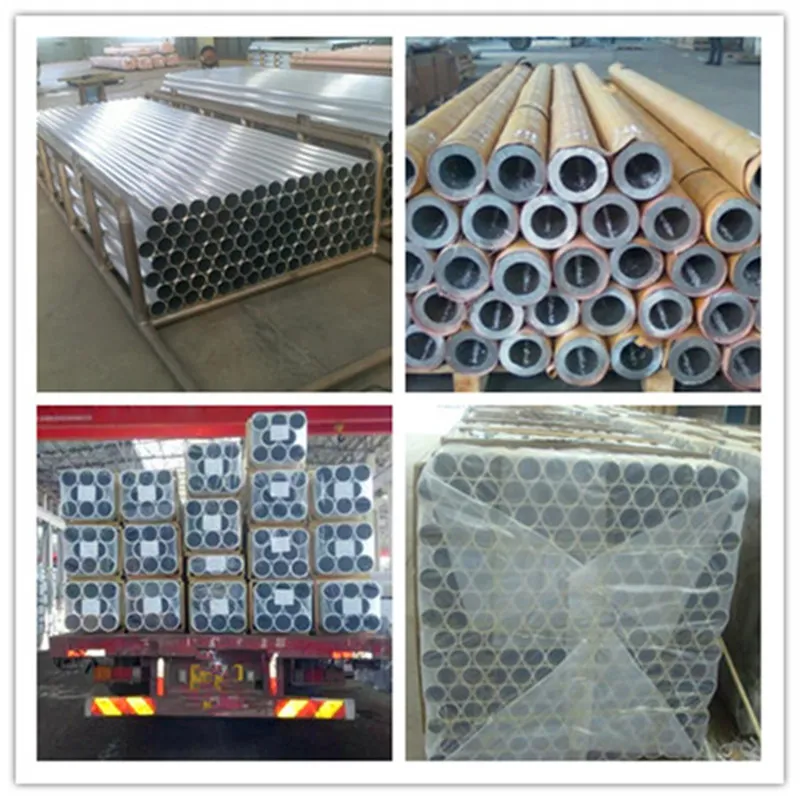

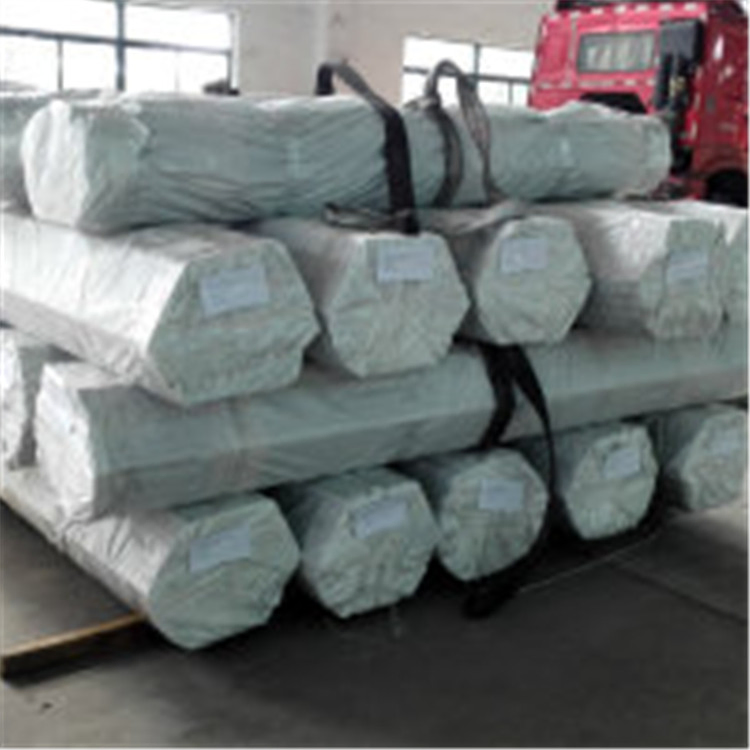

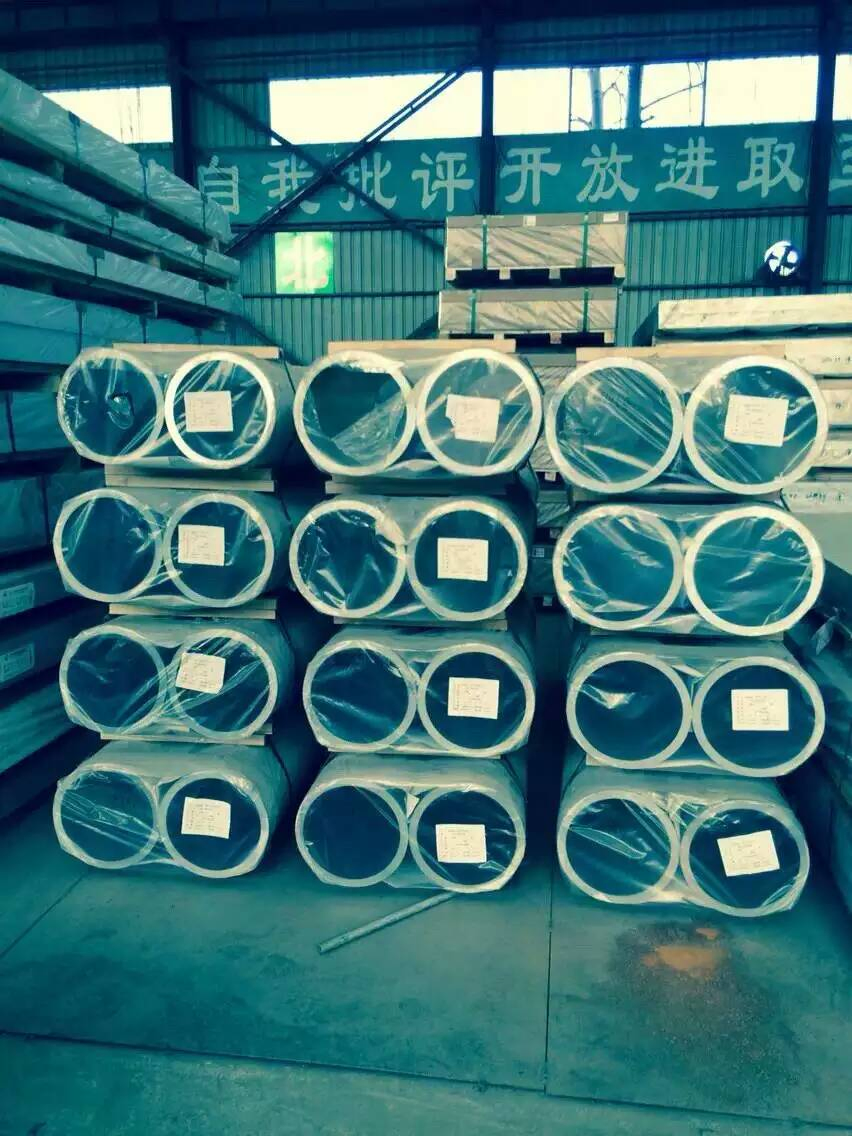

Packing for Aluminum tube/pipe:
Standard export packing, PVC protective film, plastic bag, wooden case/crate

Surface treatments of industrial Aluminum Tube/Pipe:
1) Anodizing
2) Polishing
3) Powder coated
4) Electrophoresis
5) Sand-blast
6) Coating film
etc

Applications for industrial Aluminum Alloy Tube/Pipe:
1) Micro-motors
2) Cylinder machines without wearing sleeve
3) Pneumatic cylinder
4) Heat transfer equipment
5) Construction industry
6) Curtain track
7) Structure support
8) Irrigation pipes
9) Furniture

OUR PRODUCTS

Aluminum Tube, Aluminium Pipe 5754
