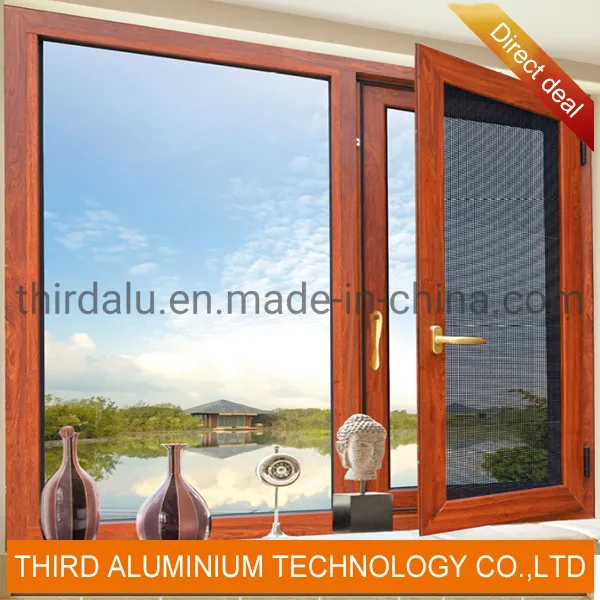

High Quality Wooden Color German Brand Hardware Aluminum Casement Window & Door Double Glazed Windows

Product Description

High quality wooden color German brand hardware Aluminum casement window & door double glazed windows
Producing Process
Inquiry ------ Sample or CAD drawing(Supplied by customers) ----CAD drawing (Our company)------ Drawing Confirmation ----- Mould Fabrication------Sample conformation ---Mass production----Inspection-------Delivery

Product introduction

Aluminium Alloy Chemical Composition
Alloy	6063 (%)	6063A (%)	6061 (%)	6082 (%)
Si	0.2~0.60	0.3~0.60	0.4~0.80	0.7~1.30
Fe	0.35	0.15~0.35	0.70	0.50
Cu	0.10	0.10	0.15~0.40	0.10
Mn	0.10	0.15	0.15	0.40~1.0
Mg	0.45~0.90	0.60~0.90	0.80~1.20	0.6~1.20
Cr	0.10	0.05	0.04~0.35	0.25
Zn	0.10	0.15	0.25	0.20
Ti	0.10	0.10	0.15	0.10
Other (each)	0.05	0.05	0.05	0.50
Other (total)	0.15	0.15	0.15	0.15
Al	Remainder	Remainder	Remainder	Remainder

Item	High quality wooden color German brand hardware Aluminum casement window & door double glazed windows
Material	6000 series Aluminium
Temper	T4	T5	T6
Size / Thickness	General profiles thickness from 0.8 to 5.0mm, length from 3m-6m or customized available; Anodize protection film thickness from 8~25 um, powder coating from 40 ~ 120 um.
Shape	Square	Round	Rectangular	Customized
Application	In furniture, windows&doors, decorations ,industry, construction and so on
Surface treatment	powder coating	electrophoresis	wood grain	anodized	Brushed	Polishing
Colors	Ref powder coating color sheet and customized color available
Deep process	DCNC	Drilling	Milling	Cutting	Welding	bending	assembling
Certificate	CQM, SGS, CE, BV, SONCAP / GB, ISO, JIS, AS, NZS, QUALICOAT, QUOLANOD available

Material & Temper	Aluminum Alloy 6063-T5,6061-T6
Film Standard	Anodized:7-23 μ , Powder coating: 60-120 μ , Electrophoresis film: 12-25 μ.
Length	5.8M or Customized.
Thickness	0.4mm-20mm or Customized.
Application	Building and Construction and Decoration.
Extrusion Machine	600-3600 tons all together 6 extrusion lines.
Capability	Output 1000 tons per month.
Deep Processing	CNC / Cutting / Punching / Checking / Tapping / Drilling / Milling
MOQ	500 kgs. Usually 10-12 tons for a 20'FT; 20-23 tons for a 40HQ.
OEM	Available.

Details of Aluminum Windows and doors

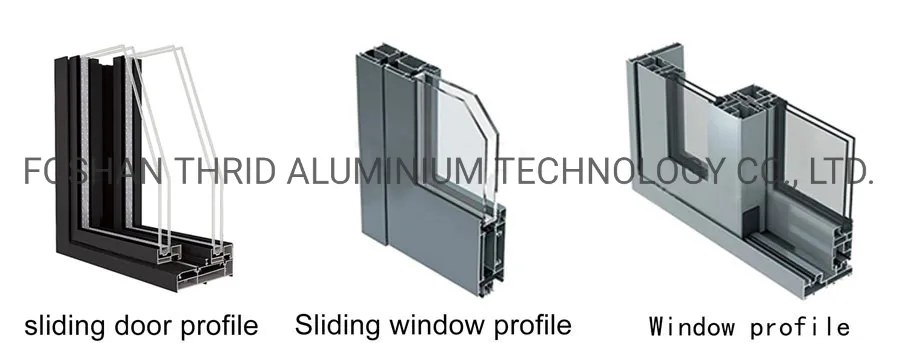

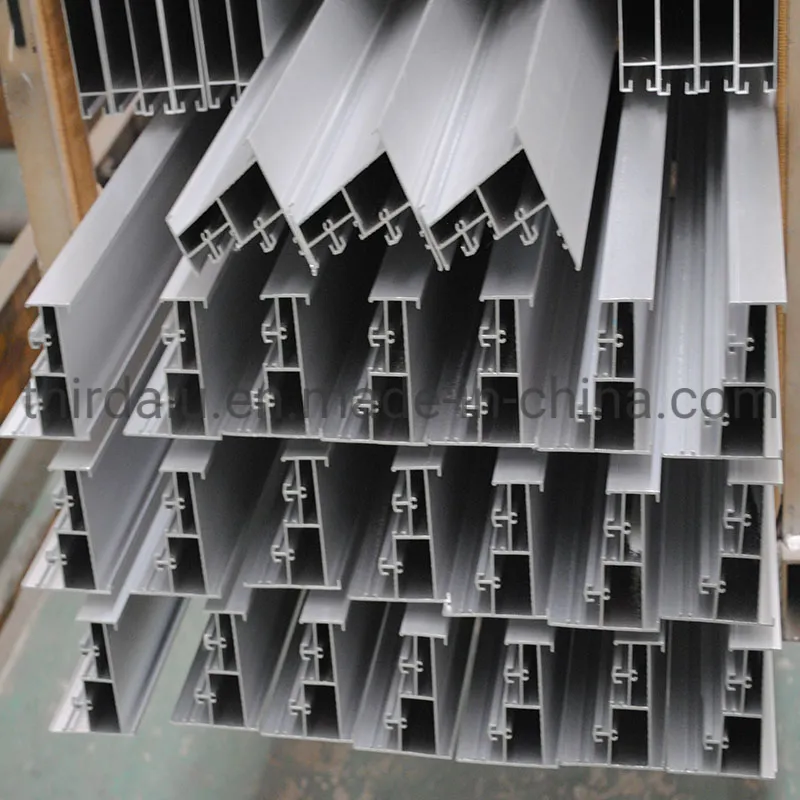

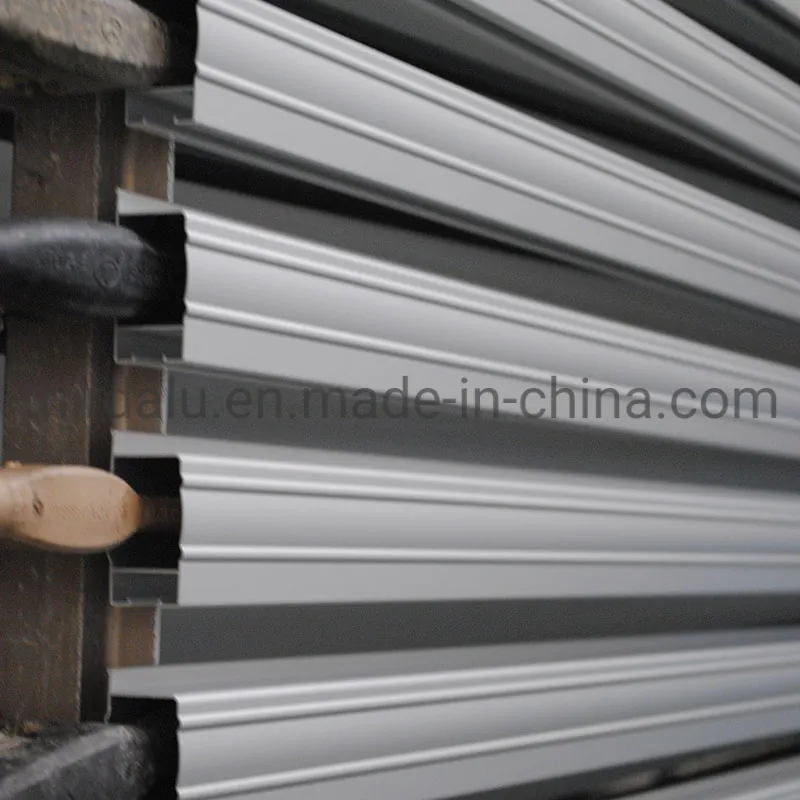

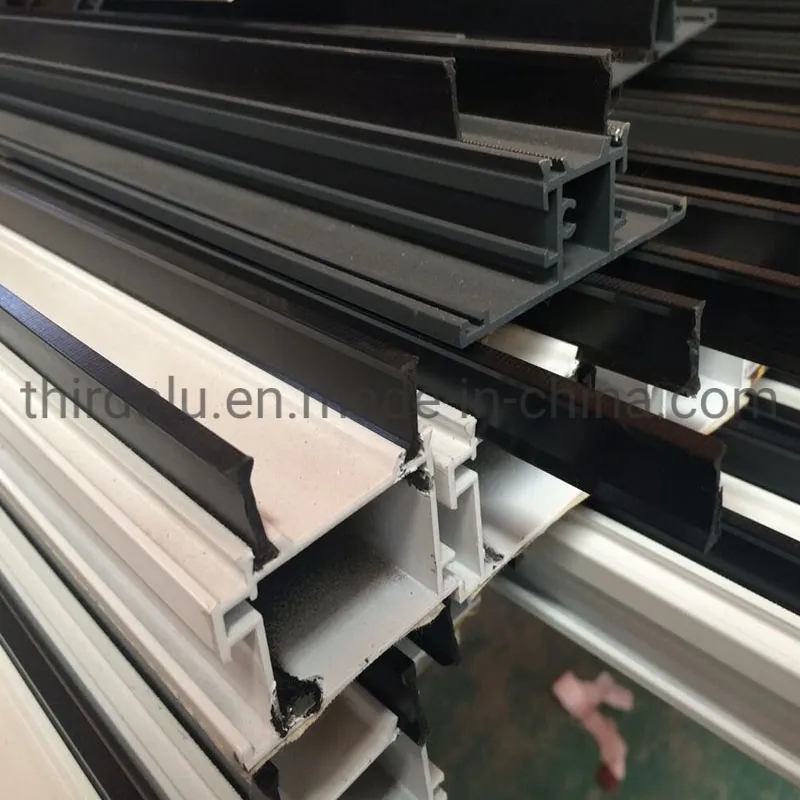

Aluminum Profile:	Aluminum alloy:	6063-T5, thermal-break, non-thermal-break
	Thickness:	1.4mm-2.0mm, customized
	Surface Treatment:	Customized (Powder coated/ Electrophoresis/ Anodizing etc).
	Color:	White/Champagne/ Grey/Wood grain//Green/Silver

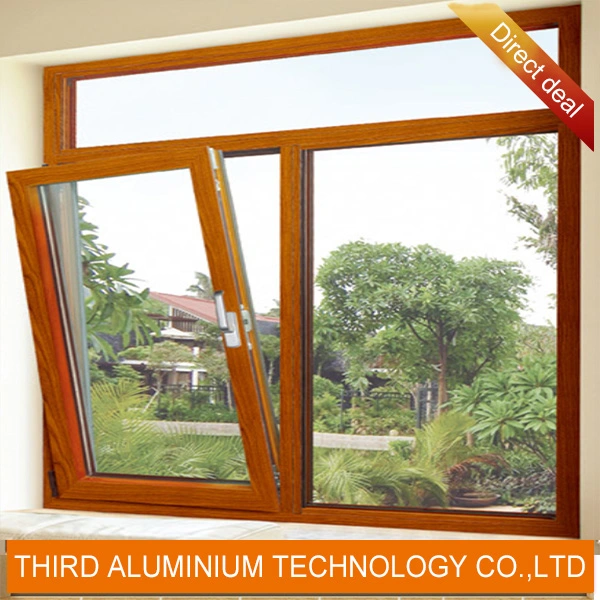

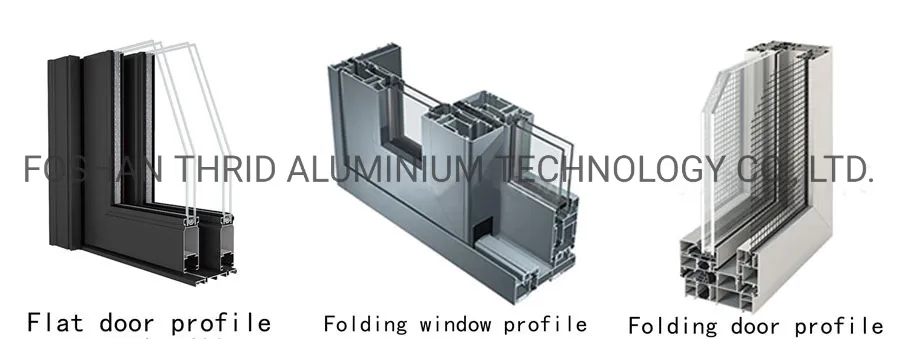

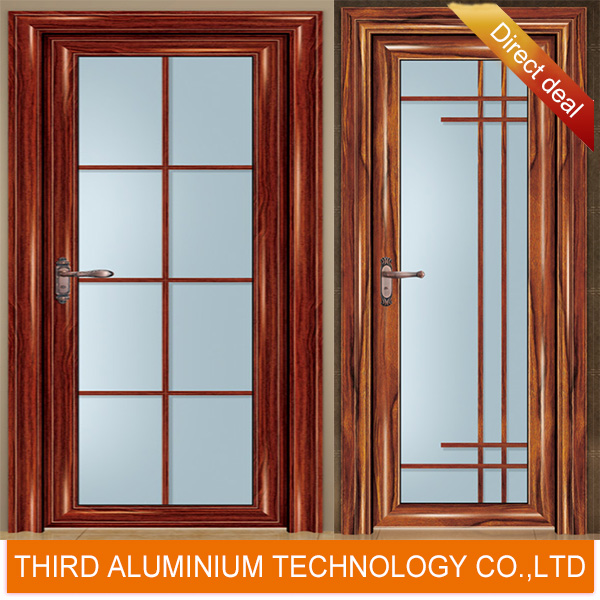

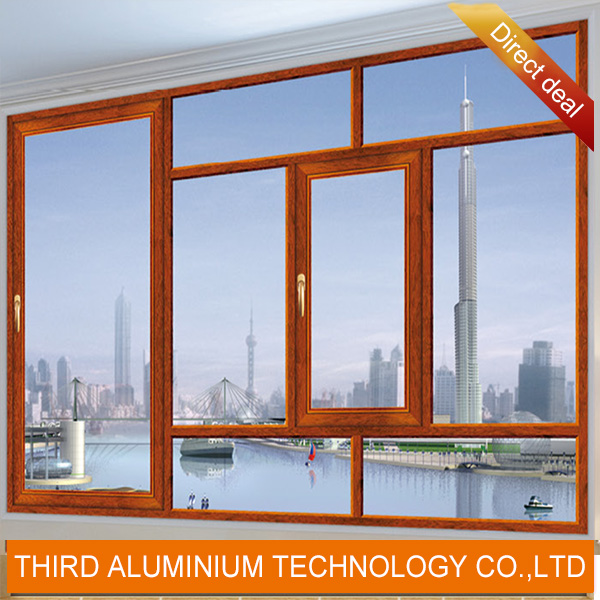

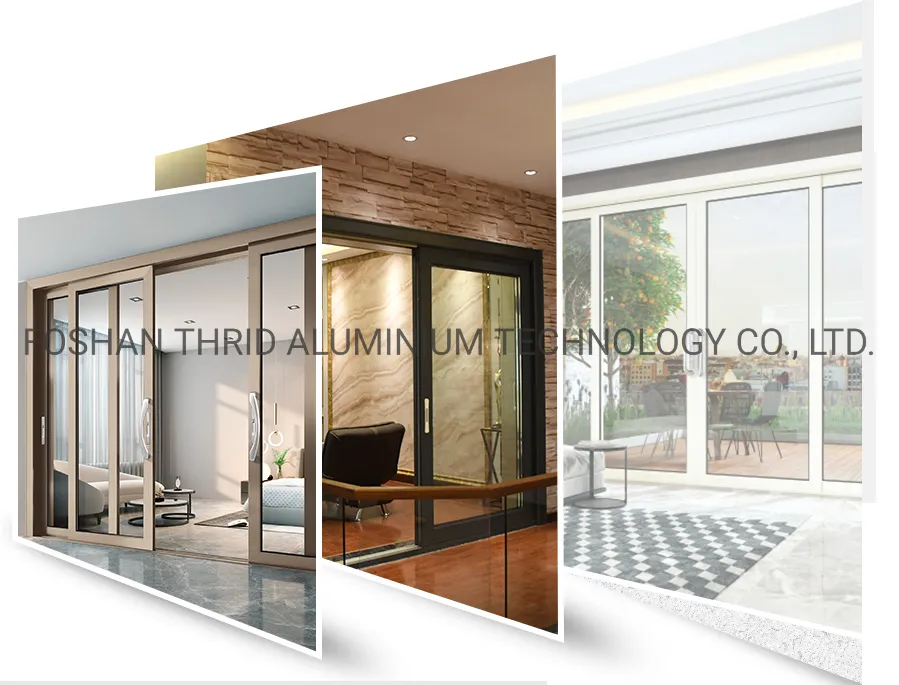

Style:	(1) Casement window & door (2) sliding window & door
	(3) Folding window & door (4) Awning window
	(5) Arched window & door (6) Tilt&Sliding window & door
	(7) Tilt&Turn window & door (8) French Door
Glass:	Type: Low-E/Reflective/Tempered/Floated/Coated
	Single glazing: 4/5/6/8/10/12/15/19mm etc
	Double glazing: Clear, Laminated, Low-E, Tempered
	5+12+5mm Clear Glass/6+12+6mm Tinted Glass/5+0.76PVC+5mm Laminated Glass
	6+12+6mm Low E Glass/6mm+1.14PVB+6mm+16A etc
	Triple 5mm+9A+5mm+9A+5mm
Hardware:	1) Chinese Top Brand
	2) International Famous Brand
	3) Flexibly open and firmly riveted
Surface Treatment:	Power coating, Anodizing, Over laminate, Electrophoresis
Size:	Customized
Color:	Customized
Sealing:	Ternary ethylene propylene rubber sealing strip
Other parts:	Mosquito net/Stainless steel screen/Inside blinds/Grid

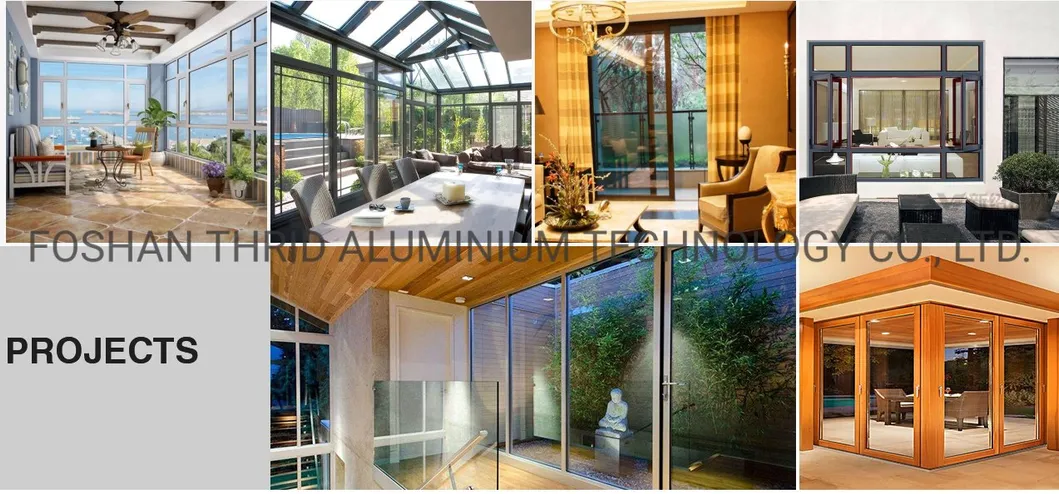

Application:	Residential houses, Condominiums, Hotels, Offices, Villa
Packaging:	1. Standard export carton package
	2. Wooden or iron pallets
	3. With film outside
	4. Customized
Guarantee:	10 years
Performance Parameter
Wind Pressure Performance		≥5.0 kpa	GB/T7106-2008/9 class
Air Permeability		≤0.5 m3/(m. H)	GB/T7107-2008/8 class
Rain Water Permeability		≥700 PA	GB/T7108-2008/6 class
Air Noise Performance		45dB	GB/T8485-2008/6 class
Good Insulation Performance		≤1.0W/(m2. K)	GB/T8484-2008/10 class
Shading Performance of SC		≤0.2	GB/T2680-2008/7 class

Manufacturing Strength:
Foshan Third Aluminium Technology CO.,LTD is established in 2000 and with head quarters in foshan City , is an large enterprise group company with the international industry chain and the development of a diversified investment .it has a collection of bauxite mining, alumina production , aluminium smelting and processing to aluminium products ,sales , aluminium windows/curtain walls manufacturing& installing .

We have introduced state-of-art manufacturing technology and testing system from the States, Germany, United Kingdom, Italy and Japan. Currently,we have19 extrusion production lines which can handle 600-5500 tons of section bar, and build up a manufacturing system which includes designing and manufacturing moulds, casting,extrusion,oxidation coloring, electrophoretic painting, powder sprqying,fluorocarbon spraying, insulation and finished machining of frames etc. Our annual production raeches 10,000tons per month. We adopted the ERP information system to further upgrade our productivity and product quality. To carter for an expanding domestic and international market, we take a further step to develop hrand new national patent window and door products,providing section bar for trendy, high-class door and window products and commodities.

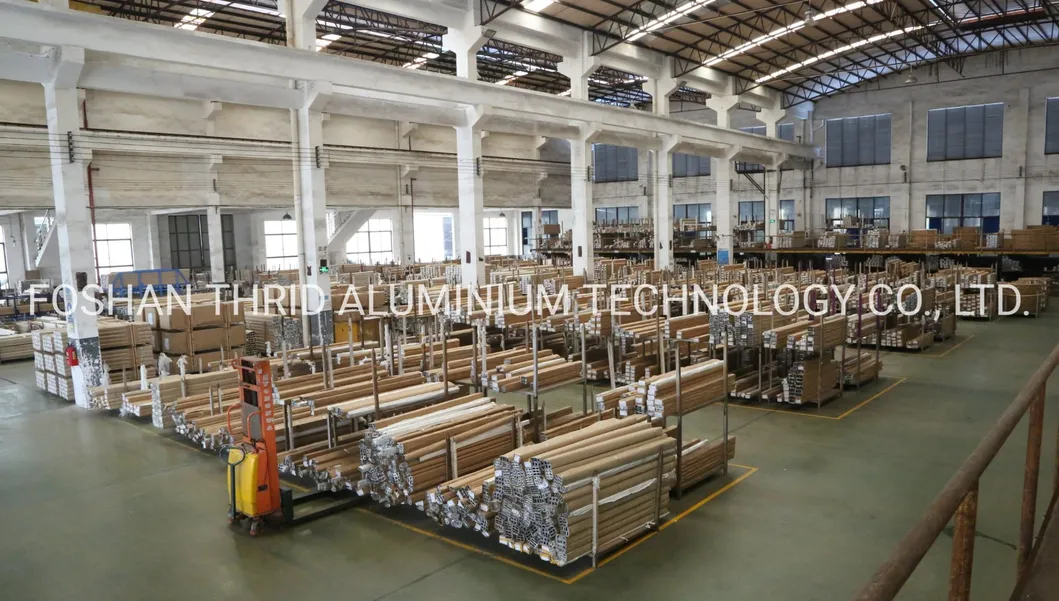

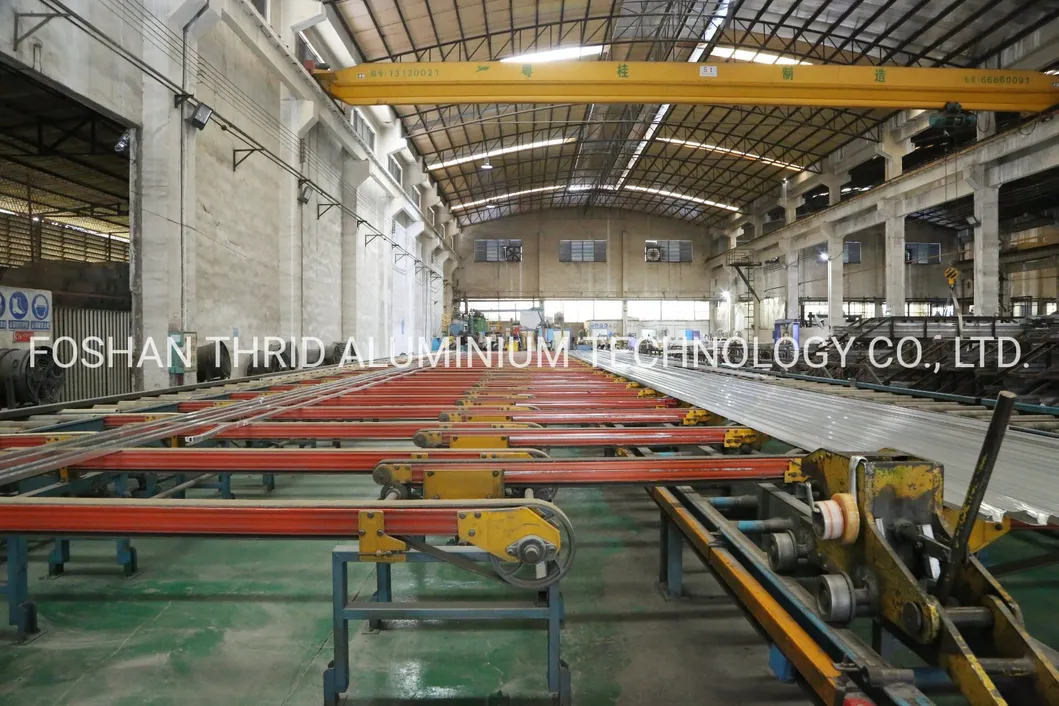

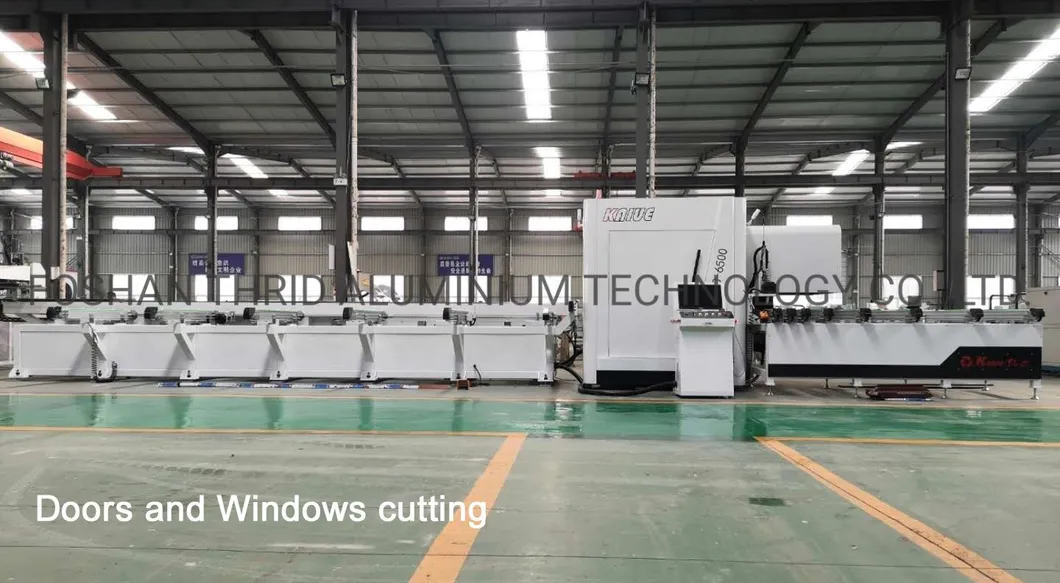

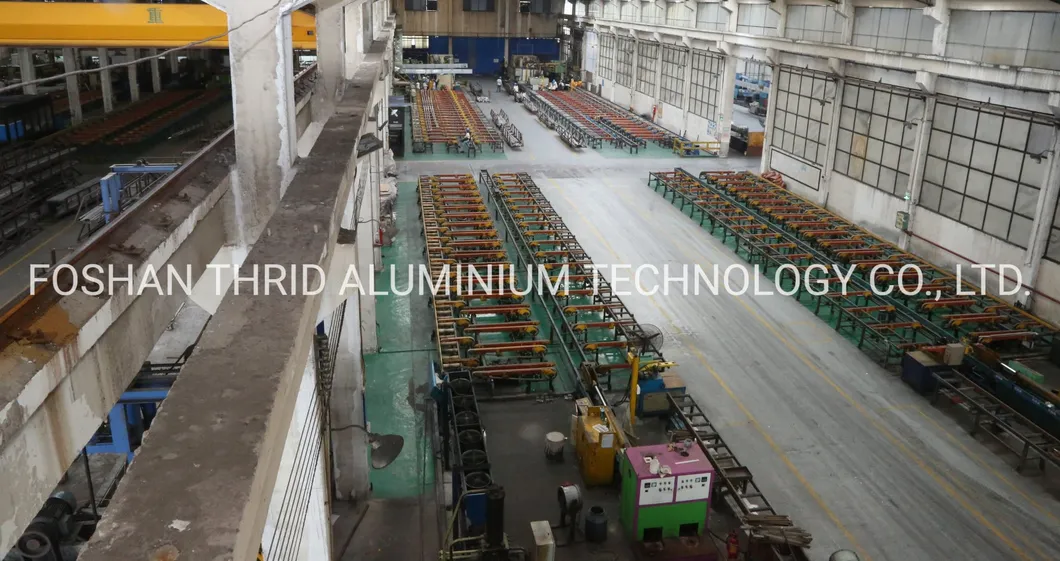

The factory pictures

Advantages:
1. Professional production workshop for extrusion and colored profile manufacturing.
2. Strict quality control and inspection before goods delivery.
3. Production standards: GB5237-2008, QUOLANOD, JIS or other International standards.
4. With 23 years experience, our factory is well recognised by clients and enjoys a good reputation among overseas markets.
5.While being awarded various honors, our brand Yalian Aluminium Profiles is rated as Guangdong Famous Brand by the government and our factory is rated as the enterprise which can always honor our contracts and keep commercial integrity.
6. Strong R&D team and over 100 national patents.

FAQ:
Q:Are you factory or trading company?
A:We are professional manufacturer for 10 years

Q:What's your advantage ?
A:Competitive price
High Quality
One stop purchasing
Fast response and professional suggestion on all inquiries Moq is 1

Q:Where is your factory?
A:Our factory is located in shanghai.

Q:Can you accept OEM or ODM ?
A:Yes, OEM and ODM welcome.

Q:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? Is it free or extra?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight
